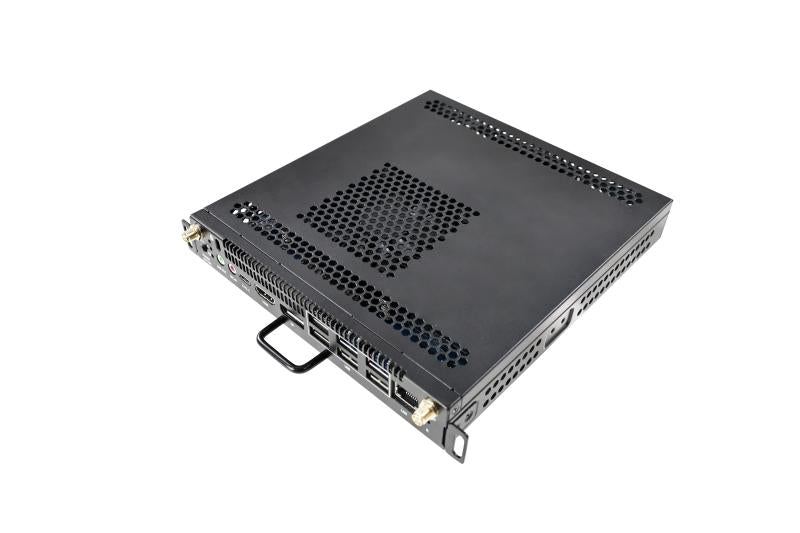

Hikvision OPS Computer Module, Intel Core i7-13620H – DS-D5AC13T7-16S5

The Hikvision DS-D5AC13T7-16S5 is an OPS computer module for Hikvision interactive flat panels. It runs Windows 11 Enterprise on an Intel Core i7-13620H processor with 16 GB of memory in two 8 GB modules and 512 GB of storage. Procure.ae supplies the module across the UAE, with delivery and quotes.

The module provides Windows 11 Enterprise on an Intel Core i7-13620H processor with 10 cores, a 2.4 GHz base clock and a 4.9 GHz turbo clock. Memory is listed as two 8 GB modules, giving 16 GB, with 512 GB of storage. The manufacturer lists TPM 2.0 support, and graphics come from Intel UHD Graphics for 13th Gen Intel Processors, which the manufacturer states supports 4K resolution. Ports include HDMI 1.4, DisplayPort 1.2, four USB 3.0 ports, two USB 2.0 ports and one USB-C port.

The module has Wi-Fi 6, Bluetooth 5.2 and a 10/100/1000 Mbps RJ45 port, and it draws 12 to 19 V DC with a maximum consumption of 90 W. The operating range is 0 to 40 °C and 10% to 90% RH, with storage at -20 to 60 °C. The DS-D5AC13G7-16S5 lists the same processor, 16 GB of memory and 512 GB of storage, so buyers can compare the two models.
