HikvisionDigital SignageSKU DS-D6055UN-DP

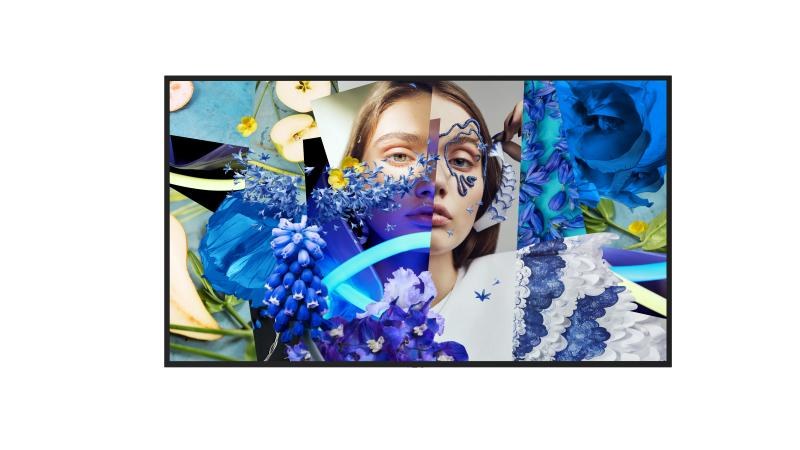

Hikvision 55-inch Slim Digital Signage Display – DS-D6055UN-DP
The Hikvision DS-D6055UN-DP is a slim 55-inch 4K UHD digital signage display for wall-mounted installations in retail, lobbies and reception areas. It offers 500 nits brightness, a 5,000:1 contrast ratio and an E-LED backlight, with an Android 13 player and 4 GB RAM. Procure.ae supplies the Hikvision DS-D6055UN-DP across the UAE.
The 55-inch panel has a 3840 x 2160 (4K UHD) resolution, 500 nits brightness, 5,000:1 contrast ratio, 85% NTSC colour gamut, 178° viewing angles and an 8 ms response time at 60 Hz. The E-LED backlight and 10-bit (8-bit + FRC) colour depth support clear images and video. The Android 13 player uses a quad-core Cortex-A55 processor at 1.92 GHz, with 4 GB RAM and 32 GB eMMC storage. It plays video in AVI, MKV, MOV, FLV, ASF, VOB and TS formats, audio in MP3, WMA and OGG, and images in JPG, BMP and PNG.
The slim design measures 1239.7 x 712.5 x 38.6 mm without the backboard and 68.4 mm deep with it, against 70 mm and 99.8 mm for the DS-D6055UN-DL. It mounts horizontally or vertically on the included backboard, with mounting bolts supplied. Networking uses RJ45, 2.4/5 GHz Wi-Fi and BT 5.0, and RS232 in and out ports allow control of one or several screens. Power draw is 75 W typical and 140 W maximum, and the net weight is 17.6 kg.
Screen Size
55 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Digital Signage Display
- Slim all-in-one design
- 4K UHD display
- Video and image playback
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Slim all-in-one design
Plastic shell and slim frame, 38.6 mm deep without the wall-mounted backboard.
02
4K UHD display
3840 x 2160 resolution with 500 nits brightness and a 5,000:1 contrast ratio.
03
Video and image playback
Plays AVI, MKV, MOV, FLV and ASF video, MP3, WMA and OGG audio, and JPG, BMP and PNG images.
04
Flexible scheduling
Day, week and loop play modes, plus custom play for multiple materials per program.
05
Centralised management
Remotely controls one or more screens, with timed start-up, shutdown and brightness and volume adjustment.
06
Five-level organisation
Permissions for materials, programs, terminals and users, with permission templates.
07
Android 13 platform
Quad-core Cortex-A55 at 1.92 GHz, with 4 GB RAM and 32 GB eMMC storage.
Specifications
41 specificationsGeneral
Key FeaturesSlim 38.6 mm design, Android 13 player, centralised remote management, five-level permissions, three-level content check, day, week and loop scheduling
ModelDS-D6055UN-DP
TypeDigital Signage Display
What's in the BoxDisplay, wall-mounted backboard with bolts, EU power cord, RS232 cable, remote control, user manual, quick start guide, logo stickers, energy label
Display
BacklightE-LED
Brightness500 nits
Color Depth10 bit (8 bit + FRC)
Color Gamut85% NTSC
Color Temperature10000 K
Contrast Ratio5,000:1
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size55 inch
Viewing Angle178° (H) / 178° (V)
Performance
Media TypeDAT, VOB, TS, AVI, MKV, MOV, 3GP, FLV, ASF, MP3, WMA, OGG, JPG, BMP, PNG
Operating SystemAndroid 13
ProcessorCortex-A55 quad-core, 1.92 GHz
RAM4 GB
Storage32 GB eMMC
Storage Conditions-20 to 60 °C; 10% to 90% RH (condensation)
Audio
Audio OutLINE OUT × 1
DisplayPortDisplayPort × 1
Speaker Output6 Ω, 10 W × 2
Connectivity
BluetoothBT 5.0
EthernetRJ45 × 1
HDMI InputsHDMI × 3
Input Voltage100–240 V AC, 50/60 Hz
Serial PortRS232 in × 1, RS232 out × 1
USB PortsUSB 2.0 × 1, USB 3.0 × 1
Wi-Fi2.4 GHz / 5 GHz, 802.11 a/b/g/n/ac/ax
Power
Power Consumption75 W (typical), 140 W (max)
Standby Power0.5 W or less
Physical
Dimensions1239.7 x 712.5 x 38.6 mm (without backboard)
Duty Cycle7 × 24 hours
MountingWall mount, horizontal or vertical
Operating Humidity10% to 80% RH (condensation)
Operating Temperature0 to 40 °C
Shipping Dimensions1390 x 850 x 136 mm
Shipping Weight24.0 kg
Weight17.6 kg
Downloads
Manufacturer documents for the Hikvision 55-inch Slim Digital Signage Display – DS-D6055UN-DP — datasheets, manuals, drawings and certificates.
- Datasheet – Wall-Mounted Series – DS-D6055UN-DP Datasheet 20260128
- User manual – Hikvision Digital Signage Box / Floor-Standing Series / Wall-Mounted Series
- Quick start guide – Hikvision Floor-Standing Series / Wall-Mounted Series
- Brochure – Wall-Mounted Series
- Brochure – Hikvision (covers 17 models)
Questions
Can’t find your answer? Ask on WhatsApp
Is the DS-D6055UN-DP suitable for wall-mounted installations?
Yes. It is designed to mount horizontally or vertically on the backboard supplied in the package, with mounting bolts included. The display measures 1239.7 x 712.5 x 38.6 mm without the backboard and 68.4 mm deep with it.
What is the difference between the DS-D6055UN-DP and the DS-D6055UN-DL?
The DP is the slim version, at 38.6 mm deep without the backboard against 70 mm for the DL, and it uses an E-LED backlight where the DL uses D-LED. Its contrast ratio is 5,000:1 against 4,000:1, its typical power draw is 75 W against 134 W, and it weighs 17.6 kg net against 13 kg.
What video and audio formats does the DS-D6055UN-DP play?
It plays video in AVI, MKV, MOV, FLV, ASF, DAT, VOB, TS, 3GP, audio in MP3, WMA and OGG, and images in JPG, BMP and PNG. Content can be scheduled by day, week, loop or custom play modes.
Can the DS-D6055UN-DP be managed remotely across several screens?
Yes. Centralised management remotely controls and manages one screen or more screens, with timed start-up and shutdown, timed brightness and volume adjustment and screenshot preview. Five-level organisation permissions and three-level content checks help control what is released.
Does the DS-D6055UN-DP have RS232 control?
Yes. It has RS232 in and RS232 out ports, and an RS232 cable is included in the package. RJ45 and Wi-Fi on 2.4 GHz and 5 GHz are also provided for network connection.
