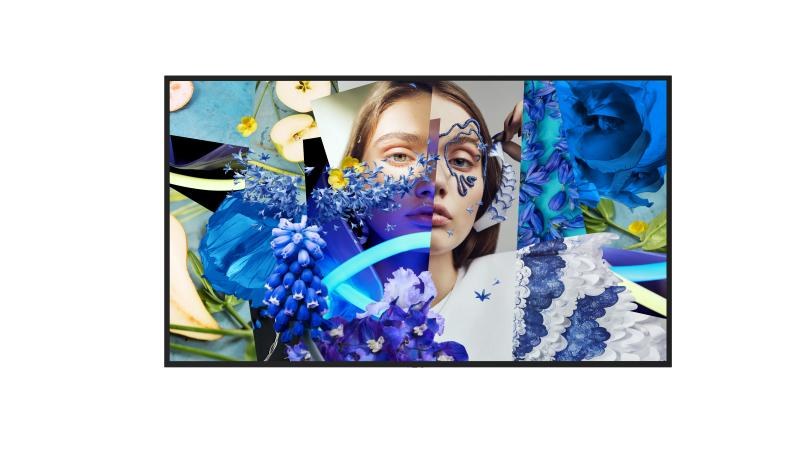

Hikvision 55-inch Slim Digital Signage Display – DS-D6055UN-DP
The Hikvision DS-D6055UN-DP is a slim 55-inch 4K UHD digital signage display for wall-mounted installations in retail, lobbies and reception areas. It offers 500 nits brightness, a 5,000:1 contrast ratio and an E-LED backlight, with an Android 13 player and 4 GB RAM. Procure.ae supplies the Hikvision DS-D6055UN-DP across the UAE.
The 55-inch panel has a 3840 x 2160 (4K UHD) resolution, 500 nits brightness, 5,000:1 contrast ratio, 85% NTSC colour gamut, 178° viewing angles and an 8 ms response time at 60 Hz. The E-LED backlight and 10-bit (8-bit + FRC) colour depth support clear images and video. The Android 13 player uses a quad-core Cortex-A55 processor at 1.92 GHz, with 4 GB RAM and 32 GB eMMC storage. It plays video in AVI, MKV, MOV, FLV, ASF, VOB and TS formats, audio in MP3, WMA and OGG, and images in JPG, BMP and PNG.
The slim design measures 1239.7 x 712.5 x 38.6 mm without the backboard and 68.4 mm deep with it, against 70 mm and 99.8 mm for the DS-D6055UN-DL. It mounts horizontally or vertically on the included backboard, with mounting bolts supplied. Networking uses RJ45, 2.4/5 GHz Wi-Fi and BT 5.0, and RS232 in and out ports allow control of one or several screens. Power draw is 75 W typical and 140 W maximum, and the net weight is 17.6 kg.
Key features
Specifications
| Key Features | Slim 38.6 mm design, Android 13 player, centralised remote management, five-level permissions, three-level content check, day, week and loop scheduling |
| Model | DS-D6055UN-DP |
| Type | Digital Signage Display |
| What's in the Box | Display, wall-mounted backboard with bolts, EU power cord, RS232 cable, remote control, user manual, quick start guide, logo stickers, energy label |
| Backlight | E-LED |
| Brightness | 500 nits |
| Color Depth | 10 bit (8 bit + FRC) |
| Color Gamut | 85% NTSC |
| Color Temperature | 10000 K |
| Contrast Ratio | 5,000:1 |
| Refresh Rate | 60 Hz |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms |
| Screen Size | 55 inch |
| Viewing Angle | 178° (H) / 178° (V) |
| Media Type | DAT, VOB, TS, AVI, MKV, MOV, 3GP, FLV, ASF, MP3, WMA, OGG, JPG, BMP, PNG |
| Operating System | Android 13 |
| Processor | Cortex-A55 quad-core, 1.92 GHz |
| RAM | 4 GB |
| Storage | 32 GB eMMC |
| Storage Conditions | -20 to 60 °C; 10% to 90% RH (condensation) |
| Audio Out | LINE OUT × 1 |
| DisplayPort | DisplayPort × 1 |
| Speaker Output | 6 Ω, 10 W × 2 |
| Bluetooth | BT 5.0 |
| Ethernet | RJ45 × 1 |
| HDMI Inputs | HDMI × 3 |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Serial Port | RS232 in × 1, RS232 out × 1 |
| USB Ports | USB 2.0 × 1, USB 3.0 × 1 |
| Wi-Fi | 2.4 GHz / 5 GHz, 802.11 a/b/g/n/ac/ax |
| Power Consumption | 75 W (typical), 140 W (max) |
| Standby Power | 0.5 W or less |
| Dimensions | 1239.7 x 712.5 x 38.6 mm (without backboard) |
| Duty Cycle | 7 × 24 hours |
| Mounting | Wall mount, horizontal or vertical |
| Operating Humidity | 10% to 80% RH (condensation) |
| Operating Temperature | 0 to 40 °C |
| Shipping Dimensions | 1390 x 850 x 136 mm |
| Shipping Weight | 24.0 kg |
| Weight | 17.6 kg |
