HikvisionDigital SignageSKU DS-D6043UN-DL

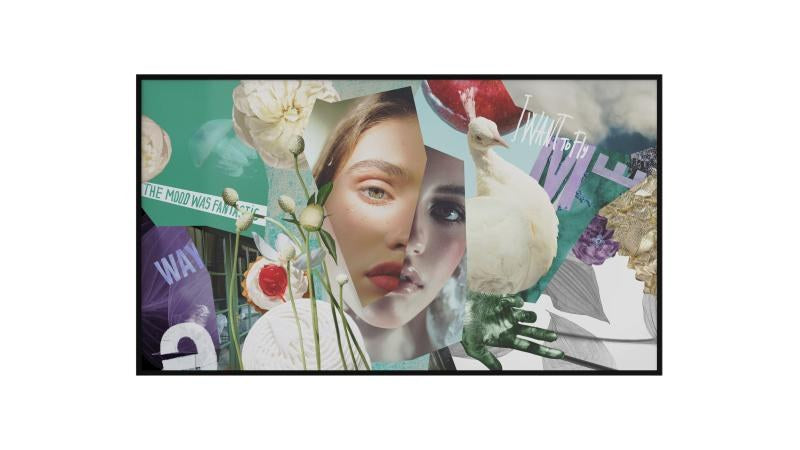

Hikvision 43-inch Digital Signage Display – DS-D6043UN-DL
The Hikvision DS-D6043UN-DL is a 43-inch 4K UHD digital signage display for wall-mounted use in retail, lobbies and corporate reception areas. It offers 500 nits brightness, a 4,000:1 contrast ratio and an Android 13 player with 4 GB RAM. Procure.ae supplies the Hikvision DS-D6043UN-DL across the UAE.
The 43-inch panel has a 3840 x 2160 (4K UHD) resolution, 500 nits brightness, 85% NTSC colour gamut, 178° viewing angles and an 8 ms response time at 60 Hz. The D-LED backlight and 10-bit (8-bit + FRC) colour depth support clear images and video. The built-in player runs Android 13 on a quad-core Cortex-A55 processor at 1.92 GHz, with 4 GB RAM and 32 GB eMMC storage, and plays pictures, audio, video, scrolling subtitles, PDF files, webpages and live video.
The DS-D6043UN-DL is 70 mm deep without its wall-mounted backboard, against 40 mm for the slim DS-D6043UN-DP, and it uses D-LED backlighting where the slim model uses E-LED. It mounts horizontally or vertically on the included backboard, and the package includes mounting bolts, an RS232 cable and a remote control. Networking uses RJ45 and dual-band Wi-Fi, with RS232 in and out ports for control, so one or several screens can be managed centrally.
Screen Size
43 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Digital Signage Display
- 4K UHD display
- Media playback
- Flexible scheduling
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD display
3840 x 2160 resolution with 500 nits brightness and a D-LED backlight.
02
Media playback
Plays pictures, audio, video, scrolling subtitles, PDF files, webpages and live video.
03
Flexible scheduling
Plays content by day, by week, in loops or in custom modes, with multiple materials per program.
04
Centralised management
Remotely controls one or more screens, with timed start-up and shutdown and timed brightness and volume adjustment.
05
Five-level organisation
Permissions for materials, programs, terminals and users, with custom users and permission templates.
06
Three-level content check
Reviews materials, programs and schedules before release, and encrypts stored and transmitted data.
07
Android 13 platform
Quad-core Cortex-A55 at 1.92 GHz, with 4 GB RAM and 32 GB eMMC storage.
Specifications
41 specificationsGeneral
Key FeaturesAndroid 13 player, centralised remote management, five-level permissions, three-level content check, day, week and loop scheduling, live video playback
ModelDS-D6043UN-DL
TypeDigital Signage Display
What's in the BoxDisplay, wall-mounted backboard with bolts, EU power cord, RS232 cable, remote control, user manual, quick start guide, logo stickers, energy label
Display
BacklightD-LED
Brightness500 nits
Color Depth10 bit (8 bit + FRC)
Color Gamut85% NTSC
Color Temperature10000 K
Contrast Ratio4,000:1
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size43 inch
Viewing Angle178° (H) / 178° (V)
Performance
Operating SystemAndroid 13
ProcessorCortex-A55 quad-core, 1.92 GHz
RAM4 GB
Storage32 GB eMMC
Storage Conditions-20 to 60 °C; 10% to 90% RH (condensation)
Audio
Audio CodecsMPEG, APE, FLAC, AAC, OGG, AIF, AIFF, ALAW, ALAC
Audio OutLINE OUT × 1
DisplayPortDisplayPort 1.2 × 1
Speaker Output6 Ω, 10 W × 2
Connectivity
BluetoothBT 5.4
EthernetRJ45 × 1
HDMI InputsHDMI 2.0 (HDCP 2.2) × 3
Input Voltage100–240 V AC, 50/60 Hz
Serial PortRS232 in × 1, RS232 out × 1
USB PortsUSB 2.0 × 1, USB 3.0 × 1
Wi-Fi2.4 GHz / 5 GHz, 802.11 a/b/g/n/ac/ax
Power
Power Consumption98 W (typical), 160 W (max)
Standby Power0.5 W or less
Physical
Dimensions967.4 x 555.9 x 70 mm (without backboard)
Duty Cycle7 × 24 hours
MountingWall mount, horizontal or vertical
Operating Humidity10% to 80% RH (condensation)
Operating Temperature0 to 40 °C
Shipping Dimensions1075 x 652 x 144 mm
Shipping Weight11.5 kg
Weight8.0 kg
Downloads
Manufacturer documents for the Hikvision 43-inch Digital Signage Display – DS-D6043UN-DL — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the DS-D6043UN-DL a 4K display?
Yes. It has a 3840 x 2160 (4K UHD) resolution, 500 nits brightness, a 4,000:1 contrast ratio and 10-bit (8-bit + FRC) colour depth. Its 60 Hz refresh rate and 8 ms response time suit video and moving content.
What content formats can the DS-D6043UN-DL play?
It plays pictures, audio, video, scrolling subtitles, PDF files, webpages and live video. The manufacturer lists audio formats including MPEG, APE, FLAC, AAC, OGG, AIFF and ALAC, and materials can be grouped into programs with day, week, loop or custom play modes.
Can the DS-D6043UN-DL be managed across several screens?
Yes. Centralised management remotely controls and manages one screen or more screens, with timed start-up and shutdown, timed brightness and volume adjustment and screenshot preview. Five-level organisation permissions control which users can manage materials, programs and terminals.
How is the DS-D6043UN-DL mounted?
It mounts on a wall horizontally or vertically using the included wall-mounted backboard and mounting bolts. The display measures 967.4 x 555.9 x 70 mm without the backboard and 967.4 x 555.9 x 100 mm with it, and weighs 8.0 kg net. Procure.ae can advise on installation for your wall.
Does the DS-D6043UN-DL include RS232 control?
Yes. The display has RS232 in and RS232 out ports, and the package includes an RS232 cable and a remote control. Network control is also possible over RJ45 and Wi-Fi on 2.4 GHz and 5 GHz.
