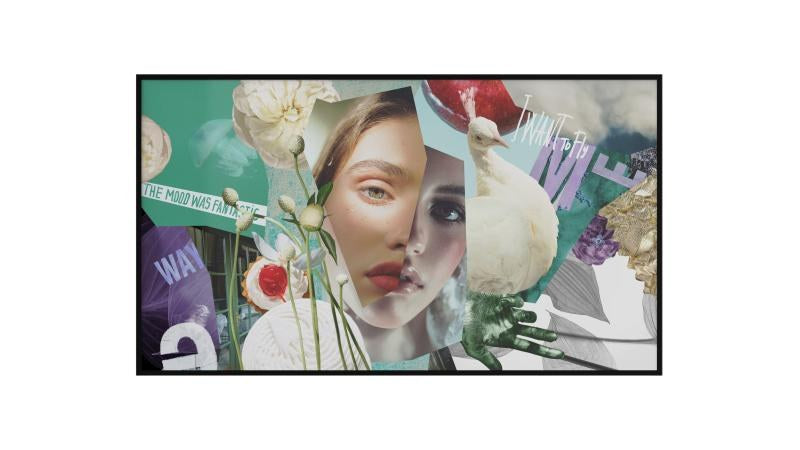

Hikvision 43-inch Digital Signage Display – DS-D6043UN-DL
The Hikvision DS-D6043UN-DL is a 43-inch 4K UHD digital signage display for wall-mounted use in retail, lobbies and corporate reception areas. It offers 500 nits brightness, a 4,000:1 contrast ratio and an Android 13 player with 4 GB RAM. Procure.ae supplies the Hikvision DS-D6043UN-DL across the UAE.
The 43-inch panel has a 3840 x 2160 (4K UHD) resolution, 500 nits brightness, 85% NTSC colour gamut, 178° viewing angles and an 8 ms response time at 60 Hz. The D-LED backlight and 10-bit (8-bit + FRC) colour depth support clear images and video. The built-in player runs Android 13 on a quad-core Cortex-A55 processor at 1.92 GHz, with 4 GB RAM and 32 GB eMMC storage, and plays pictures, audio, video, scrolling subtitles, PDF files, webpages and live video.
The DS-D6043UN-DL is 70 mm deep without its wall-mounted backboard, against 40 mm for the slim DS-D6043UN-DP, and it uses D-LED backlighting where the slim model uses E-LED. It mounts horizontally or vertically on the included backboard, and the package includes mounting bolts, an RS232 cable and a remote control. Networking uses RJ45 and dual-band Wi-Fi, with RS232 in and out ports for control, so one or several screens can be managed centrally.
Key features
Specifications
| Key Features | Android 13 player, centralised remote management, five-level permissions, three-level content check, day, week and loop scheduling, live video playback |
| Model | DS-D6043UN-DL |
| Type | Digital Signage Display |
| What's in the Box | Display, wall-mounted backboard with bolts, EU power cord, RS232 cable, remote control, user manual, quick start guide, logo stickers, energy label |
| Backlight | D-LED |
| Brightness | 500 nits |
| Color Depth | 10 bit (8 bit + FRC) |
| Color Gamut | 85% NTSC |
| Color Temperature | 10000 K |
| Contrast Ratio | 4,000:1 |
| Refresh Rate | 60 Hz |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms |
| Screen Size | 43 inch |
| Viewing Angle | 178° (H) / 178° (V) |
| Operating System | Android 13 |
| Processor | Cortex-A55 quad-core, 1.92 GHz |
| RAM | 4 GB |
| Storage | 32 GB eMMC |
| Storage Conditions | -20 to 60 °C; 10% to 90% RH (condensation) |
| Audio Codecs | MPEG, APE, FLAC, AAC, OGG, AIF, AIFF, ALAW, ALAC |
| Audio Out | LINE OUT × 1 |
| DisplayPort | DisplayPort 1.2 × 1 |
| Speaker Output | 6 Ω, 10 W × 2 |
| Bluetooth | BT 5.4 |
| Ethernet | RJ45 × 1 |
| HDMI Inputs | HDMI 2.0 (HDCP 2.2) × 3 |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Serial Port | RS232 in × 1, RS232 out × 1 |
| USB Ports | USB 2.0 × 1, USB 3.0 × 1 |
| Wi-Fi | 2.4 GHz / 5 GHz, 802.11 a/b/g/n/ac/ax |
| Power Consumption | 98 W (typical), 160 W (max) |
| Standby Power | 0.5 W or less |
| Dimensions | 967.4 x 555.9 x 70 mm (without backboard) |
| Duty Cycle | 7 × 24 hours |
| Mounting | Wall mount, horizontal or vertical |
| Operating Humidity | 10% to 80% RH (condensation) |
| Operating Temperature | 0 to 40 °C |
| Shipping Dimensions | 1075 x 652 x 144 mm |
| Shipping Weight | 11.5 kg |
| Weight | 8.0 kg |
