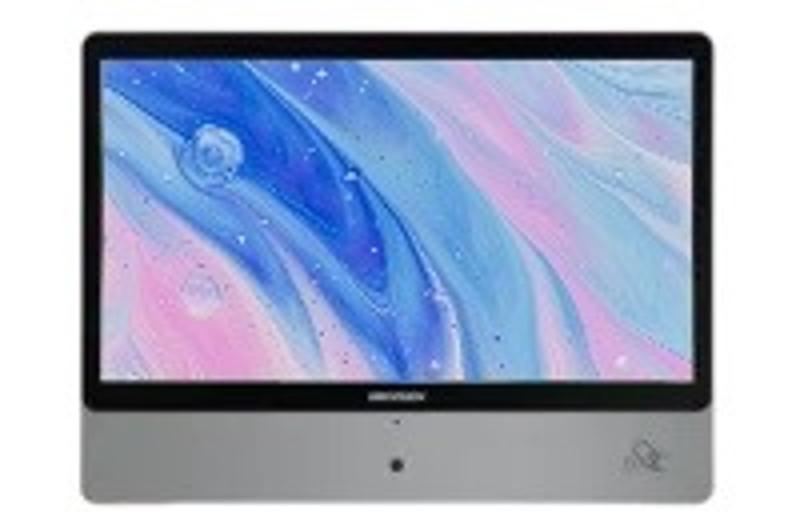

Hikvision 21.5-inch Room Scheduling Panel – DS-D5F22CB/BH

The Hikvision DS-D5F22CB/BH (alternate code DS-D5F22CB/BH/(Czech-V)) is a 21.5-inch wall-mounted room scheduling panel for meeting rooms and offices. It has a 1920 x 1080 capacitive touchscreen, an RFID card reader, a 2 MP WDR camera and built-in Wi-Fi, and it links to access control devices. Procure.ae supplies it in the UAE.

The 21.5-inch screen shows a 1920 x 1080 (Full HD) image with 600 cd/m² brightness and 178° horizontal and vertical viewing angles. Its 10-point capacitive touch responds in 8 milliseconds, so people can check and book rooms directly at the door. A built-in 2 MP WDR camera captures clear images when the panel faces bright light, and a light sensor adjusts the screen brightness to the room. The face comparison algorithm supports up to 10 people on the screen at once, which suits short-term attendance checks.

The panel is designed for wall mounting at meeting-room doors and connects to access control equipment. Its RFID reader handles 13.56 MHz type A and B cards, and it controls access devices over the Wiegand protocol and relays door locks. Connectivity is one LAN port (RJ-45), built-in Wi-Fi and Bluetooth 4.0. It runs Android 12.0 on a quad-core Cortex-A55 processor with 2 GB RAM and 16 GB storage. The manufacturer rates the body IPX3 and lists a 0 to 40 °C operating range.
