ELODigital SignageSKU 4343L

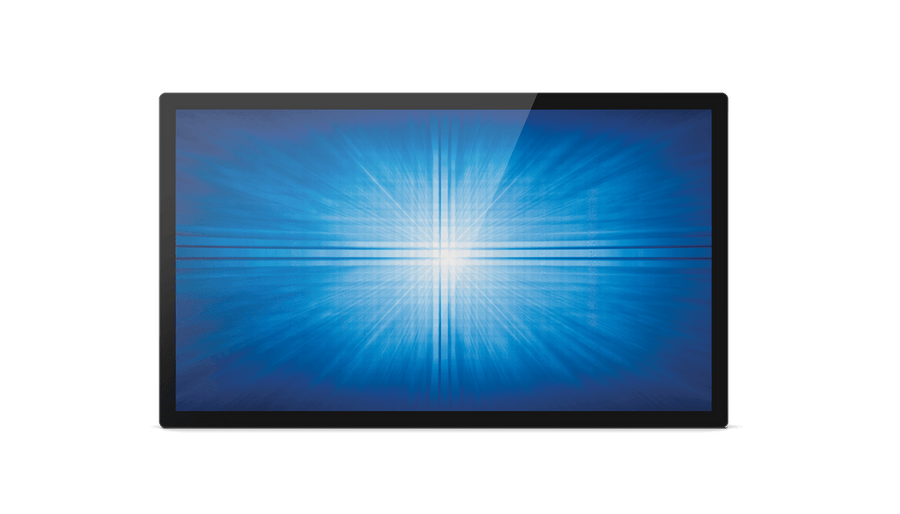

Elo 4343L 43-inch Open Frame Touchscreen Display – E220574
The Elo 4343L is a discontinued 43-inch open-frame PCAP touchscreen for kiosks and built-in public-access installations. It offers 1920 x 1080 Full HD resolution, 12-point touch and a 2.6-inch (66 mm) slim profile. The manufacturer lists the 4363L as its replacement. Procure.ae supplies Elo touchscreen displays in the UAE and can confirm current availability.
The 4343L has a 42.5-inch diagonal LCD with 1920 x 1080 Full HD resolution, 450 nits LCD brightness and a 1100:1 contrast ratio. The PCAP touch layer rates at 387 nits and supports 12-point multi-touch. Response time is 12 ms typical, with 178-degree viewing angles. The touchscreen glass exceeds UL 60950 ball-drop and IK06 impact requirements, and the unit is Energy Star 7.0 certified.
The 4343L suits thin kiosk designs and built-in installs. Its edge-to-edge glass and 66.4 mm depth allow flush mounting, and flush-mount brackets are supplied in the accessories box. It has a 400 x 400 mm VESA 4-hole interface on the rear and operates 24 hours a day from 0 to 40 °C. Analog VGA and HDCP-capable HDMI inputs are provided, and the manufacturer states that touch through glass is available on request for sealed solutions.
Screen Size
43 inch
Resolution
1920 x 1080 (Full HD)
Brightness
450 nits (LCD panel); 387 nits (PCA...
Touch Technology
PCAP (TouchPro projected capacitive)
- 43-inch Full HD
- 12-point PCAP touch
- Brightness and contrast
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
43-inch Full HD
1920 x 1080 LCD panel with a 16:9 aspect ratio.
02
12-point PCAP touch
TouchPro projected capacitive touch with 12 touch points.
03
Brightness and contrast
450 nits LCD brightness and a 1100:1 contrast ratio.
04
Slim open frame
66.4 mm depth, with flush-mount brackets for built-in installs.
05
Sealed front
IP65 on the front side when sealed into a solution; touch through glass available on request.
06
Impact resistance
Glass exceeds UL 60950 ball-drop and IK06 impact requirements.
07
Energy efficiency
Energy Star 7.0 certified with an LED backlight.
08
24-hour operation
Rated for 24 hours a day.
Specifications
29 specificationsGeneral
Key Features43-inch Full HD, 12-point PCAP touch, IP65 front when sealed, flush-mount kit, UL ball-drop and IK06 impact glass, Energy Star 7.0, 24-hour operation, 3-year warranty
Model4343L
TypeOpen-Frame Touchscreen Display
What's in the Box4343L, QIG, EEI label, OSD remote, HDMI cable, VGA cable, USB cable (Type A to B), power cables (NA, EU/KR, UK), 8 flush-mount brackets, 48 flush-mount screws
Display
Aspect Ratio16:9
Brightness450 nits (LCD panel); 387 nits (PCAP touch)
Color Depth16.7 million colors
Contrast Ratio1,100:1
Panel TechnologyLCD
Resolution1920 x 1080 (Full HD)
Response Time12 ms
Screen Size43 inch
Touch Points12-point multi-touch
Touch TechnologyPCAP (TouchPro projected capacitive)
Viewing Angle178° horizontal and vertical
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsAnalog VGA (DE-15), HDCP-capable HDMI Type A
Power
Power Consumption59.85 W on, 0.80 W sleep, 0.17 W off (100 V, 60 Hz typical, monitor and adapter)
Physical
ColorBlack
Dimensions999.3 x 587.5 x 66.4 mm
Duty Cycle24 hours/day
Mounting400 x 400 mm VESA 4-hole interface on rear; flush-mount brackets in accessories box
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount400 x 400 mm
Weight18.2 kg (unpackaged)
Compliance
CertificationsUL, FCC, cUL, IC, CB, CE, CCC, VCCI, KC, EAC, BSMI, S-Mark, C-Tick, Energy Star 7.0
IP RatingIP65 front side when sealed into a solution
Warranty3 years
Downloads
Manufacturer documents for the Elo 4343L 43-inch Open Frame Touchscreen Display – E220574 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Elo 4343L used for?
It is a 43-inch open-frame PCAP touchscreen for self-service kiosks and built-in public-access installations in retail, hotels, gaming and transportation. It has 1920 x 1080 resolution and 12-point touch.
How many touch points does the 4343L support?
It supports 12-point multi-touch on its TouchPro projected capacitive layer, as stated for this model.
Can it be installed flush in a kiosk?
Yes, flush-mount brackets are included in the accessories box, and the display has a 400 x 400 mm VESA 4-hole interface on the rear. Its 66.4 mm depth suits thin enclosure designs.
Can the front be sealed into a kiosk?
Yes, the touchscreen is sealed to the bezel and LCD, and the manufacturer states it can be sealed into a solution with an IP65 rating on the front side. Touch through glass is available on request.
Which video inputs does it have?
It has an analog VGA input on a DE-15 connector and an HDCP-capable HDMI Type A input. A USB cable for touch and an OSD remote are included in the box.
