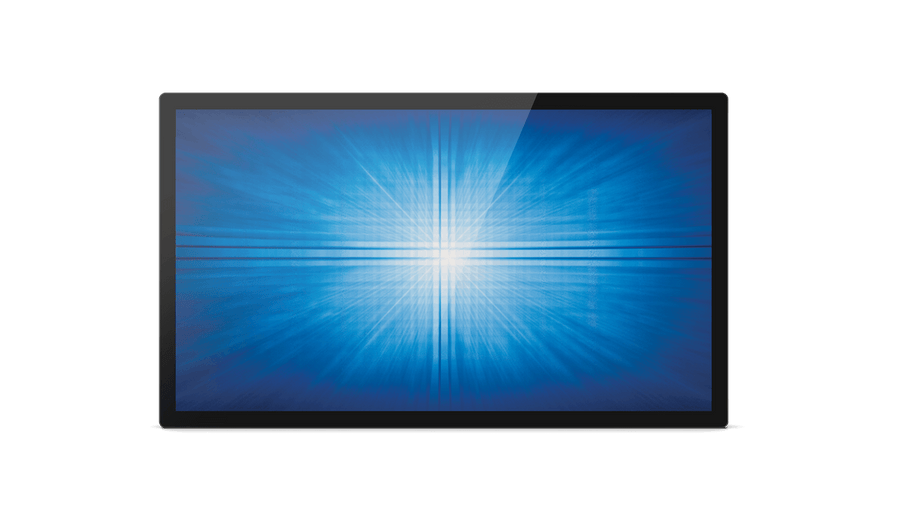

Elo 4343L 43-inch Open Frame Touchscreen Display – E220574
The Elo 4343L is a discontinued 43-inch open-frame PCAP touchscreen for kiosks and built-in public-access installations. It offers 1920 x 1080 Full HD resolution, 12-point touch and a 2.6-inch (66 mm) slim profile. The manufacturer lists the 4363L as its replacement. Procure.ae supplies Elo touchscreen displays in the UAE and can confirm current availability.
The 4343L has a 42.5-inch diagonal LCD with 1920 x 1080 Full HD resolution, 450 nits LCD brightness and a 1100:1 contrast ratio. The PCAP touch layer rates at 387 nits and supports 12-point multi-touch. Response time is 12 ms typical, with 178-degree viewing angles. The touchscreen glass exceeds UL 60950 ball-drop and IK06 impact requirements, and the unit is Energy Star 7.0 certified.
The 4343L suits thin kiosk designs and built-in installs. Its edge-to-edge glass and 66.4 mm depth allow flush mounting, and flush-mount brackets are supplied in the accessories box. It has a 400 x 400 mm VESA 4-hole interface on the rear and operates 24 hours a day from 0 to 40 °C. Analog VGA and HDCP-capable HDMI inputs are provided, and the manufacturer states that touch through glass is available on request for sealed solutions.
Key features
Specifications
| Key Features | 43-inch Full HD, 12-point PCAP touch, IP65 front when sealed, flush-mount kit, UL ball-drop and IK06 impact glass, Energy Star 7.0, 24-hour operation, 3-year warranty |
| Model | 4343L |
| Type | Open-Frame Touchscreen Display |
| What's in the Box | 4343L, QIG, EEI label, OSD remote, HDMI cable, VGA cable, USB cable (Type A to B), power cables (NA, EU/KR, UK), 8 flush-mount brackets, 48 flush-mount screws |
| Aspect Ratio | 16:9 |
| Brightness | 450 nits (LCD panel); 387 nits (PCAP touch) |
| Color Depth | 16.7 million colors |
| Contrast Ratio | 1,100:1 |
| Panel Technology | LCD |
| Resolution | 1920 x 1080 (Full HD) |
| Response Time | 12 ms |
| Screen Size | 43 inch |
| Touch Points | 12-point multi-touch |
| Touch Technology | PCAP (TouchPro projected capacitive) |
| Viewing Angle | 178° horizontal and vertical |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Ports | Analog VGA (DE-15), HDCP-capable HDMI Type A |
| Power Consumption | 59.85 W on, 0.80 W sleep, 0.17 W off (100 V, 60 Hz typical, monitor and adapter) |
| Color | Black |
| Dimensions | 999.3 x 587.5 x 66.4 mm |
| Duty Cycle | 24 hours/day |
| Mounting | 400 x 400 mm VESA 4-hole interface on rear; flush-mount brackets in accessories box |
| Operating Humidity | 20% to 80% RH |
| Operating Temperature | 0 to 40 °C |
| VESA Mount | 400 x 400 mm |
| Weight | 18.2 kg (unpackaged) |
| Certifications | UL, FCC, cUL, IC, CB, CE, CCC, VCCI, KC, EAC, BSMI, S-Mark, C-Tick, Energy Star 7.0 |
| IP Rating | IP65 front side when sealed into a solution |
| Warranty | 3 years |
☎ +971 4 546 5041 · WhatsApp · ✉ info@procure.ae · 🔗 View product page
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
Pricing is quote-based. Contact Procure for current pricing and availability.
Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
