ELOInteractive Flat PanelsSKU E334530

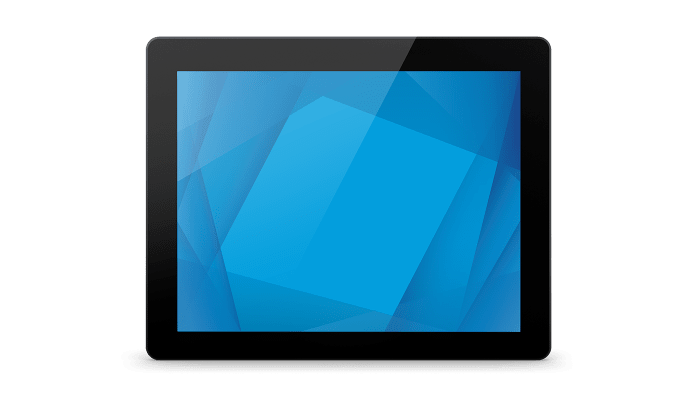

ELO 1590L 15" Open Frame Touchscreen SecureTouch (Worldwide)
The ELO 1590L 15" Open Frame Touchscreen SecureTouch (Worldwide) is a interactive flat panel available in the UAE from Procure.ae.
Experience seamless touchscreen interaction with the ELO 1590L 15" Open Frame Touchscreen SecureTouch (Worldwide), designed for precise and responsive performance in demanding environments. This versatile 15-inch open frame monitor features advanced SecureTouch technology for reliable and secure operation, making it ideal for kiosks, ATMs, retail displays, and industrial applications. Its robust durability ensures long-lasting use, while the sleek, compact design supports easy integration into custom enclosures. The ELO 1590L delivers exceptional image clarity and color accuracy, maximizing.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Screen Size
15 inch
Resolution
1024 x 768 (XGA)
Brightness
300 nits
Touch Technology
PCAP / SAW / Resistive
- SecureTouch Technology
- 15-Inch Display
- Worldwide Compatibility
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
SecureTouch Technology
Provides advanced security and reliable touch performance for sensitive environments.
02
15-Inch Display
Offers a spacious interactive area ideal for kiosks, retail, and industrial use.
03
Worldwide Compatibility
Designed for global deployment with multi-language support and flexible voltage.
04
Open Frame Construction
Allows for easy integration into custom enclosures and commercial fixtures.
05
Durable Build
Engineered to withstand heavy usage and harsh conditions for long-term reliability.
06
High Image Clarity
Delivers sharp, vibrant visuals for improved readability and user interaction.
07
Energy Efficient
Reduces power consumption to lower operating costs and environmental impact.
08
Anti-Glare Surface
Minimizes reflections and maintains screen visibility in bright environments.
Specifications
25 specificationsGeneral
What's in the BoxHDMI Cable, VGA Cable, Touch USB Cable, OSD Remote, Quick Install Guide, EEI Label, Flush Mount Brackets w/Screws
Display
BacklightLED
Brightness300 nits
Color Depth8-bit (16.7 million colours)
Refresh Rate60 Hz
Resolution1024 x 768 (XGA)
Screen Size15 inch
Touch Points10-point multi-touch
Touch Response Time23 ms
Touch TechnologyPCAP / SAW / Resistive
Viewing Angle160° (H) / 150° (V)
Connectivity
HDMI InputsHDMI In × 1
Serial PortRS-232 × 1
Touch USB PortsTouch USB 2.0 × 1
VGA InputVGA × 1
Power
Power Consumption12.5 W
Standby Power≤ 0.5 W
Physical
Dimensions358 x 284.9 x 35.6 mm
Operating Humidity20% to 80% RH
Operating Temperature0°C to 40°C
Shipping Dimensions434 x 375 x 175 mm
Surface ProtectionAnti-glare
VESA Mount100 x 100 mm
Weight2.9 kg
Compliance
Warranty3 years
Questions
Can’t find your answer? Ask on WhatsApp
What is the ELO interactive flat panel used for?
Experience seamless touchscreen interaction with the ELO 1590L 15" Open Frame Touchscreen SecureTouch (Worldwide), designed for precise and responsive performance in demanding environments. This versatile 15-inch open frame monitor features advanced SecureTouch technology for reliable and secure.
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support. Contact us for the full warranty details applicable to this model.
Does this interactive panel support multi-touch and on-screen writing?
Yes — it uses PCAP / SAW / Resistive touch technology, so multiple users can write and interact at the same time.
Can I run apps on it without connecting a PC?
Yes, it has a built-in operating system so you can use apps without a separate PC.
