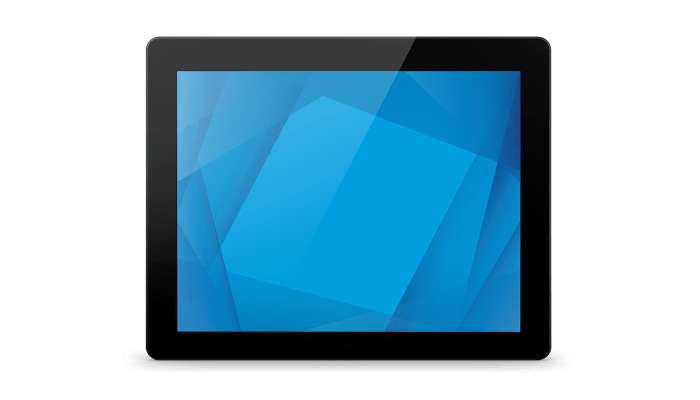

ELO 1590L 15" Open Frame Touchscreen SecureTouch (Worldwide)

The ELO 1590L 15" Open Frame Touchscreen SecureTouch (Worldwide) is a interactive flat panel available in the UAE from Procure.ae.

Experience seamless touchscreen interaction with the ELO 1590L 15" Open Frame Touchscreen SecureTouch (Worldwide), designed for precise and responsive performance in demanding environments. This versatile 15-inch open frame monitor features advanced SecureTouch technology for reliable and secure operation, making it ideal for kiosks, ATMs, retail displays, and industrial applications. Its robust durability ensures long-lasting use, while the sleek, compact design supports easy integration into custom enclosures. The ELO 1590L delivers exceptional image clarity and color accuracy, maximizing.

It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.

Screen Size

15 inch

Resolution

1024 x 768 (XGA)

Brightness

300 nits

Touch Technology

PCAP / SAW / Resistive

Weight

2.9 kg

Key features

SecureTouch Technology

Provides advanced security and reliable touch performance for sensitive environments.

15-Inch Display

Offers a spacious interactive area ideal for kiosks, retail, and industrial use.

Worldwide Compatibility

Designed for global deployment with multi-language support and flexible voltage.

Open Frame Construction

Allows for easy integration into custom enclosures and commercial fixtures.

Durable Build

Engineered to withstand heavy usage and harsh conditions for long-term reliability.

High Image Clarity

Delivers sharp, vibrant visuals for improved readability and user interaction.

Energy Efficient

Reduces power consumption to lower operating costs and environmental impact.

Anti-Glare Surface

Minimizes reflections and maintains screen visibility in bright environments.

Specifications

General
What's in the Box	HDMI Cable, VGA Cable, Touch USB Cable, OSD Remote, Quick Install Guide, EEI Label, Flush Mount Brackets w/Screws

Display
Backlight	LED
Brightness	300 nits
Color Depth	8-bit (16.7 million colours)
Refresh Rate	60 Hz
Resolution	1024 x 768 (XGA)
Screen Size	15 inch
Touch Points	10-point multi-touch
Touch Response Time	23 ms
Touch Technology	PCAP / SAW / Resistive
Viewing Angle	160° (H) / 150° (V)

Connectivity
HDMI Inputs	HDMI In × 1
Serial Port	RS-232 × 1
Touch USB Ports	Touch USB 2.0 × 1
VGA Input	VGA × 1

Power
Power Consumption	12.5 W
Standby Power	≤ 0.5 W

Physical
Dimensions	358 x 284.9 x 35.6 mm
Operating Humidity	20% to 80% RH
Operating Temperature	0°C to 40°C
Shipping Dimensions	434 x 375 x 175 mm
Surface Protection	Anti-glare
VESA Mount	100 x 100 mm
Weight	2.9 kg

Compliance
Warranty	3 years
