DinstarPABX & VoIPSKU DP70

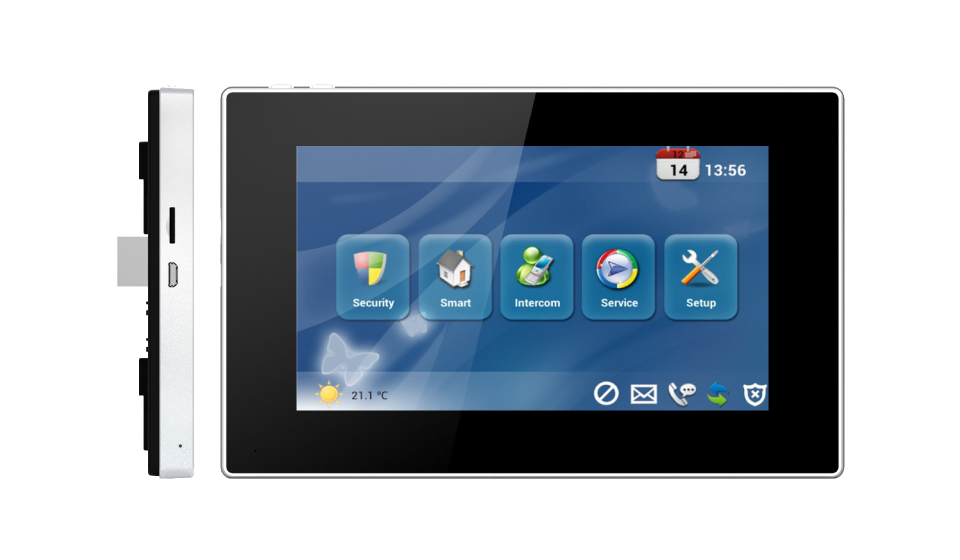

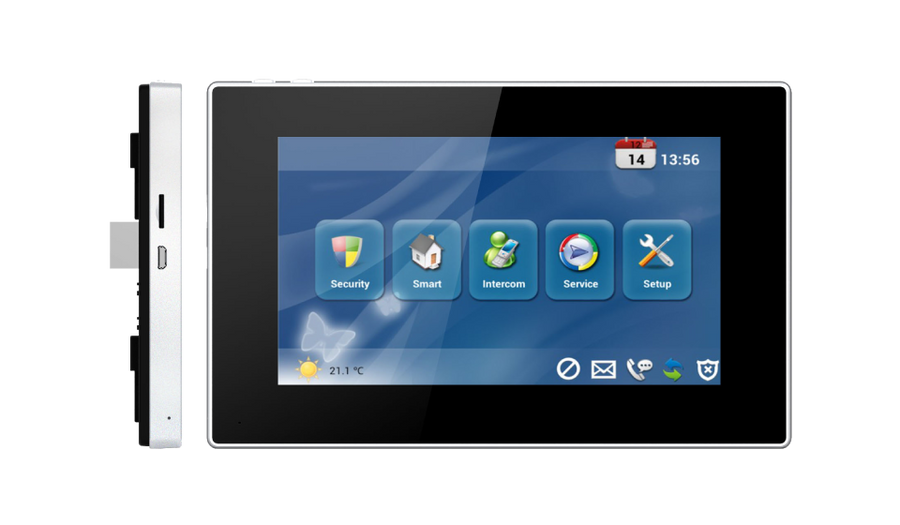

Dinstar DP70 SIP Door Phone
The Dinstar DP70 SIP Door Phone is a voip & telephony available in the UAE from Procure.ae.
Dinstar DP70 SIP Door Phone is a professional SIP-based communication and access control solution designed for modern IP telephony environments. It enables secure, real-time voice communication while integrating seamlessly with IP-PBX systems such as Asterisk, BroadSoft, and 3CX.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Type
SIP Video Door Phone / Indoor Touch...
Weight
0.47 kg
- Full SIP compatibility (RFC3261) with major IP-PBX platforms
- HD voice quality with echo cancellation and noise reduction
- Fast deployment with web-based configuration
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Full SIP compatibility (RFC3261) with major IP-PBX platforms
02
HD voice quality with echo cancellation and noise reduction
03
Fast deployment with web-based configuration
04
Remote management via web GUI, TR-069, and auto provisioning
05
Secure communication with TLS/SRTP encryption
06
Integration with access control and monitoring systems
07
Reliable performance in commercial and industrial environments
Specifications
25 specificationsGeneral
Key FeaturesAudio and video intercom, H.264 video, Monitors up to 8 IP cameras, Emergency call and security alarm, Lift control
TypeSIP Video Door Phone / Indoor Touch Pad
What's in the BoxIndoor panel, Bracket, Screwing kit, Quick start guide (power adapter not included)
Display
Display7" capacitive touchscreen TFT LCD, 1024 x 600
Performance
Operating SystemLinux
RAM128 MB
Storage ConditionsTemperature: -40 to 70 °C
Audio
Audio CodecsG.711
MicrophoneBuilt-in
Speaker Output1 W (8 ohm)
Connectivity
ConnectivitySIP
Ethernet1 x RJ45, 10/100 Mbps
Inputs8 x doorbell inputs, 8 x alarm inputs
PoE802.3af
ProtocolsSIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPv4, ARP, ICMP
SD Card SlotmicroSD card slot × 1
Serial PortRS-485 × 1
Power
Power Consumption9 W rated, 2 W standby
Power SourcePoE (802.3af) or DC 12 V/2 A
Physical
Dimensions195 x 130 x 14.5 mm
MaterialPlastic front panel
MountingSurface mount, desktop
Operating Humidity10% to 90% RH (non-condensing)
Operating Temperature-10°C to 55°C
Weight0.47 kg
Questions
Can’t find your answer? Ask on WhatsApp
What is the Dinstar voip & telephony used for?
Dinstar DP70 SIP Door Phone is a professional SIP-based communication and access control solution designed for modern IP telephony environments. It enables secure, real-time voice communication while integrating seamlessly with IP-PBX systems such as Asterisk, BroadSoft, and 3CX.
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support. Contact us for the full warranty details applicable to this model.
Is this certified for Microsoft Teams and Zoom?
It works with major video platforms; ask us for the exact certifications on this model.
What is this — a webcam, video bar, or full room system?
