Dinstar UC120 VoIP PBX
The Dinstar UC120 VoIP PBX is a voip & telephony available in the UAE from Procure.ae.

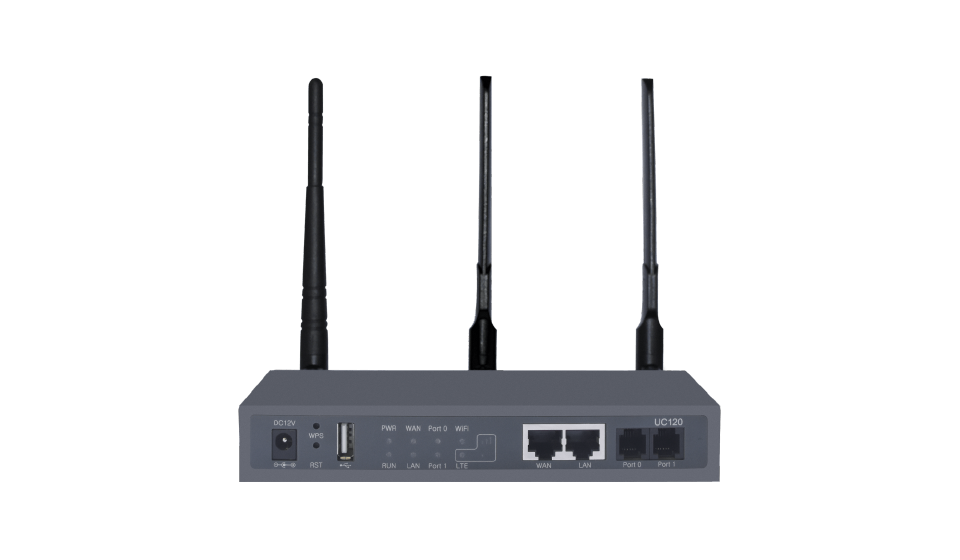

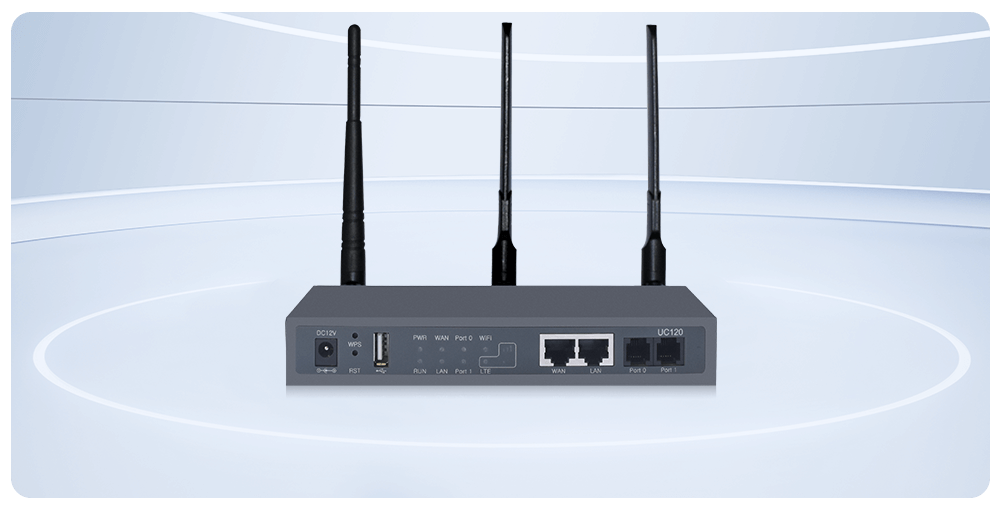

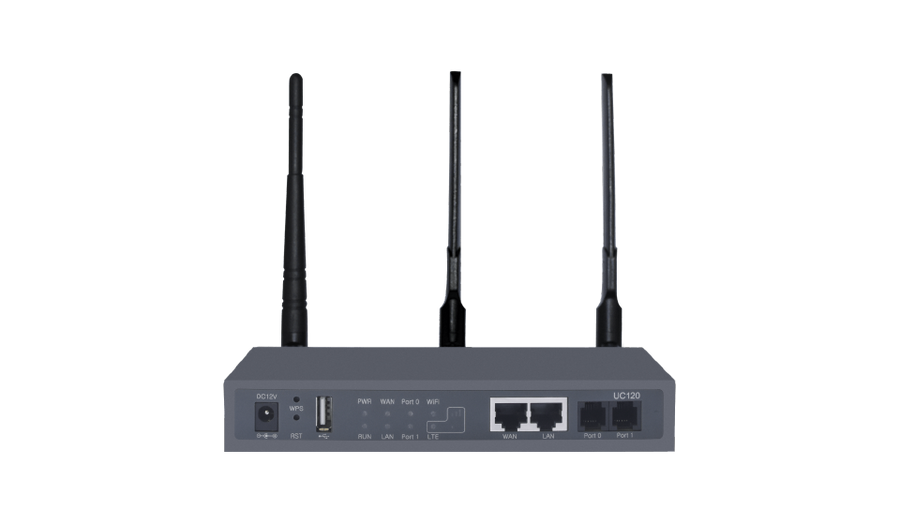

The Dinstar UC120 is a compact converged VoIP PBX designed for small and medium-sized enterprises. Offering diverse connectivity — FXO (CO line), FXS (analog extension), optional 4G LTE/GSM, and VoIP/SIP — the UC120 supports up to 60 SIP users and 15 concurrent calls. With built-in Wi-Fi, it delivers enterprise-class features at an entry-level investment.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Type
VoIP PBX
Weight
0.5 kg
- Analog ports
- Optional 4G LTE/GSM module for direct mobile trunk access
- Built-in Wi-Fi — connect wirelessly without additional hardware
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Analog ports
1× FXS/FXO hybrid, or 2× FXS, or 2× FXO
02
Optional 4G LTE/GSM module for direct mobile trunk access
03
Built-in Wi-Fi — connect wirelessly without additional hardware
04
Built-in VPN server/client for secure remote extensions
05
SIP trunk support for low-cost internet calling
06
No annual licensing fees or recurring charges
07
Free internal calls; low-cost external calls via SIP trunks
08

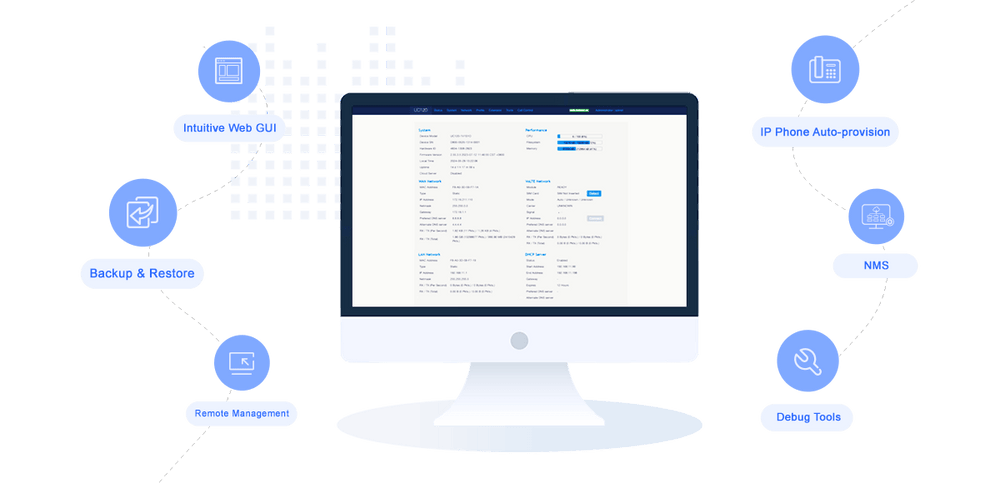

Remote management and bulk firmware upgrades
Specifications
18 specificationsGeneral
TypeVoIP PBX
Audio
Audio CodecsG.711 A/μ, G.723.1, G.729 A/B
Connectivity
AntennaSMA, 3.0 dB
Cellular1x GSM or VoLTE channel; GSM 850/900/1800/1900 MHz; LTE (Type E) FDD B1/B3/B5/B7/B8/B20, TDD B38/B40/B41
Concurrent CallsUp to 15 concurrent calls
Connectivity2 x FXO, 1 x FXS, GSM/VoLTE, SIP
Ethernet2 x 10/100 Mbps Ethernet (RJ45)
Input Voltage12 V DC, 1 A
ProtocolsSIP over UDP/TCP, RTP/RTCP, SIP TLS/SRTP, STUN/Rport

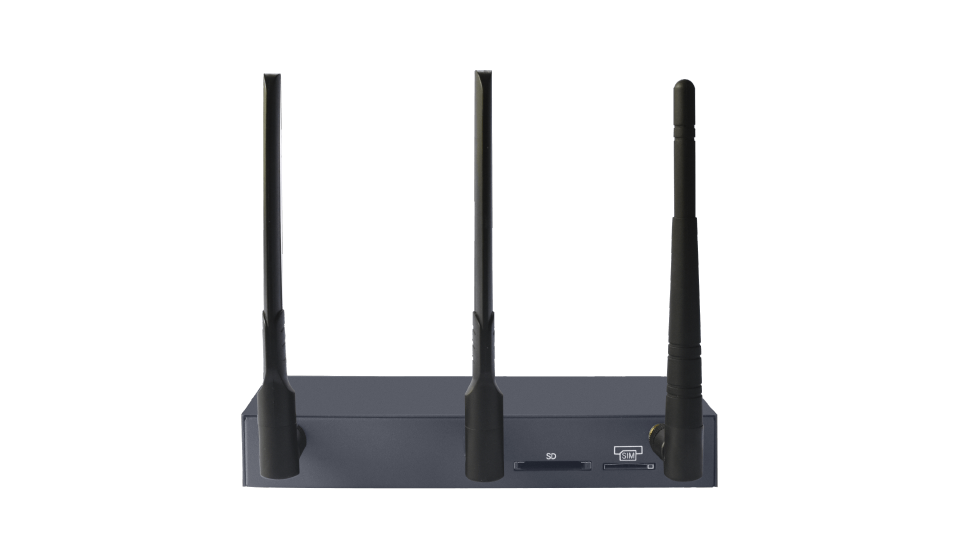

SD Card SlotSD card slot × 1
SIP AccountsUp to 60 SIP extensions
USB PortsUSB 2.0 × 1
Wi-FiWi-Fi 4 (802.11n), 2.4 GHz
Power
Power Consumption< 10 W
Physical
Dimensions178 x 98 x 28 mm
Operating Humidity10% to 90% RH (non-condensing)
Operating Temperature0°C to 40°C
Weight0.5 kg
Questions
Can’t find your answer? Ask on WhatsApp
What is the Dinstar voip & telephony used for?
The Dinstar UC120 is a compact converged VoIP PBX designed for small and medium-sized enterprises. Offering diverse connectivity — FXO (CO line), FXS (analog extension), optional 4G LTE/GSM, and VoIP/SIP — the UC120 supports up to 60 SIP users and 15 concurrent calls.
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support. Contact us for the full warranty details applicable to this model.
Is this certified for Microsoft Teams and Zoom?
It works with major video platforms; ask us for the exact certifications on this model.
