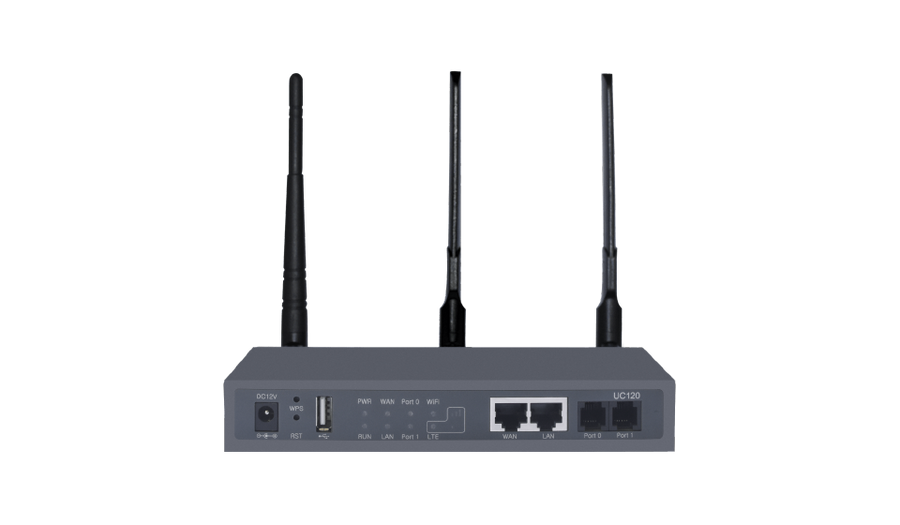

Dinstar UC120 VoIP PBX

The Dinstar UC120 VoIP PBX is a voip & telephony available in the UAE from Procure.ae.

The Dinstar UC120 is a compact converged VoIP PBX designed for small and medium-sized enterprises. Offering diverse connectivity — FXO (CO line), FXS (analog extension), optional 4G LTE/GSM, and VoIP/SIP — the UC120 supports up to 60 SIP users and 15 concurrent calls. With built-in Wi-Fi, it delivers enterprise-class features at an entry-level investment.

It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.

Type

VoIP PBX

Weight

0.5 kg

Key features

Analog ports

1× FXS/FXO hybrid, or 2× FXS, or 2× FXO

Optional 4G LTE/GSM module for direct mobile trunk access

Built-in Wi-Fi — connect wirelessly without additional hardware

Built-in VPN server/client for secure remote extensions

SIP trunk support for low-cost internet calling

No annual licensing fees or recurring charges

Free internal calls; low-cost external calls via SIP trunks

Remote management and bulk firmware upgrades

Specifications

General
Type	VoIP PBX

Audio
Audio Codecs	G.711 A/μ, G.723.1, G.729 A/B

Connectivity
Antenna	SMA, 3.0 dB
Cellular	1x GSM or VoLTE channel; GSM 850/900/1800/1900 MHz; LTE (Type E) FDD B1/B3/B5/B7/B8/B20, TDD B38/B40/B41
Concurrent Calls	Up to 15 concurrent calls
Connectivity	2 x FXO, 1 x FXS, GSM/VoLTE, SIP
Ethernet	2 x 10/100 Mbps Ethernet (RJ45)
Input Voltage	12 V DC, 1 A
Protocols	SIP over UDP/TCP, RTP/RTCP, SIP TLS/SRTP, STUN/Rport
SD Card Slot	SD card slot × 1
SIP Accounts	Up to 60 SIP extensions
USB Ports	USB 2.0 × 1
Wi-Fi	Wi-Fi 4 (802.11n), 2.4 GHz

Power
Power Consumption	< 10 W

Physical
Dimensions	178 x 98 x 28 mm
Operating Humidity	10% to 90% RH (non-condensing)
Operating Temperature	0°C to 40°C
Weight	0.5 kg
