DahuaMeeting Room SolutionsSKU DS04-AI400

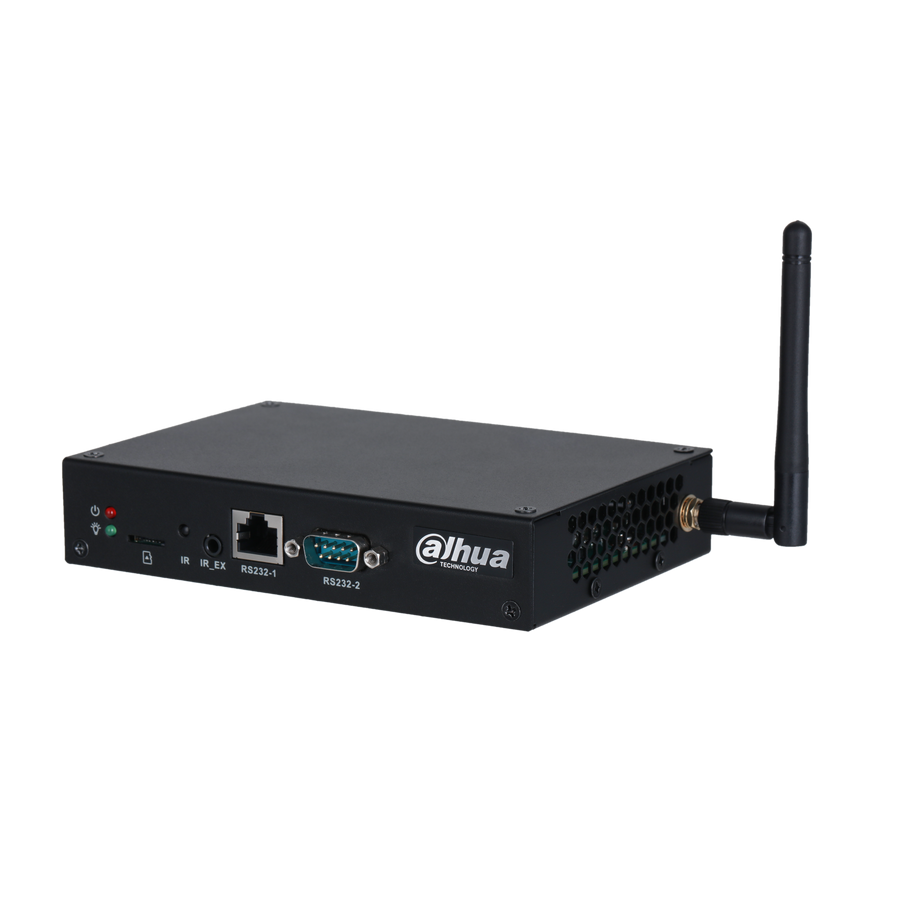

Dahua Media Player Box Digital Signage Player – DS04-AI400
The Dahua DS04-AI400 is a digital signage media player box that plays video, images, text and PDF content on a connected display. It runs Android 8.1 on a quad-core A17 processor with 2 GB RAM and 16 GB storage, and it is managed remotely through the Dahua MPS platform. Procure.ae supplies the DS04-AI400 in the UAE.
The player releases images, text, rich text and videos in real time, and it can display rolling titles over the image. Play modes include inter-cut, specified time, periodic and gasket play, and play plans can be set by day, week or month. A smart screen split shows images, text and video in up to 5 windows at once. It supports MPEG-4, H.264 and H.265 video, and its outage resume function keeps program material playing when the network drops.
It is designed for LED screens, monitors and video walls, with a metal casing and a design that works up to 24 hours a day. It works with the Dahua MPS platform for multi-level management and media publishing, and it can be wall-mounted or desk-mounted. It draws 2 W typical and 4 W maximum, and it operates from -10 to 55 °C.
Type
Digital Signage Media Player
Weight
435 g
- Multi-format playback
- Scheduled play
- Smart screen split
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Multi-format playback
Plays video, pictures, audio, text, PDF and IPC streams.
02
Scheduled play
Play plans can be set by day, week or month.
03
Smart screen split
Shows images, text and video in up to 5 windows at once.
04
Remote management
Managed through the Dahua MPS platform with multi-level control.
05
Resume function
Resumes program playback after an outage, which also saves bandwidth.
06
Industrial design
Metal casing with wall or desk mounting, rated IP20.
Specifications
26 specificationsGeneral
Key FeaturesMulti-level management, Smart screen split into 5 windows, Scheduled play by day, week or month, Real-time monitoring, Clock and weather updates, Remote management platform
ModelDS04-AI400
TypeDigital Signage Media Player
What's in the BoxPower adapter, Wi-Fi antenna, remote control, quick start guide, legal and regulatory information
Performance
Operating SystemAndroid 8.1
ProcessorQuad-core A17, 1.6 GHz
RAM2 GB
Storage16 GB
Audio
Audio CodecsMPEG-4, H.264 AVC/MVC, H.265 HEVC
Connectivity
Ethernet1 × RJ-45 10/100/1000 Mbps
HDMI Outputs1 × HDMI out, 480p / 720p / 1080p / 4K at 60 Hz
Input Voltage12 VDC
SD Card Slot1 × TF card slot, up to 128 GB
Serial Port1 × RS-232
USB Ports2 × USB 2.0 (Type-A)
Wi-Fi2.4 GHz Wi-Fi
Power
Power Consumption2 W (typical), 4 W (maximum)
Physical
ColorBlack
Dimensions184.5 x 105 x 30 mm
MaterialMetal casing
MountingWall mount, desk mount
Operating Humidity10% to 90% RH, non-condensing
Operating Temperature-10 to 55 °C
Weight435 g
Compliance
CertificationsCE, FCC, CE RED
IP RatingIP20
Downloads
Manufacturer documents for the Dahua Media Player Box Digital Signage Player – DS04-AI400 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the DS04-AI400 play 4K video?
The HDMI output supports 480p, 720p, 1080p and 4K at 60 Hz. The manufacturer's specifications do not state 4K decoding for this model, so confirm the content resolution you need with Procure.ae before ordering.
Can I manage several players remotely?
Yes. The manufacturer says it works with the Dahua MPS platform, which provides unified remote management for system integrators and media operators. The platform supports multi-level management and media publishing through a B/S architecture.
Which displays can it drive?
Yes, it suits monitors, video walls and LED screens for advertising, according to the manufacturer. It connects to a display with an HDMI input, and the manufacturer lists a 1 × HDMI out port with 4K at 60 Hz output.
How is it mounted?
It supports wall mounting and desk mounting. The manufacturer's specifications do not state a VESA pattern for the unit, so Procure.ae can advise on mounting kits and on delivery and installation across the UAE and MEA.
Can I buy the DS04-AI400 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
