DinstarPABX & VoIPSKU DAG2000-8S8O

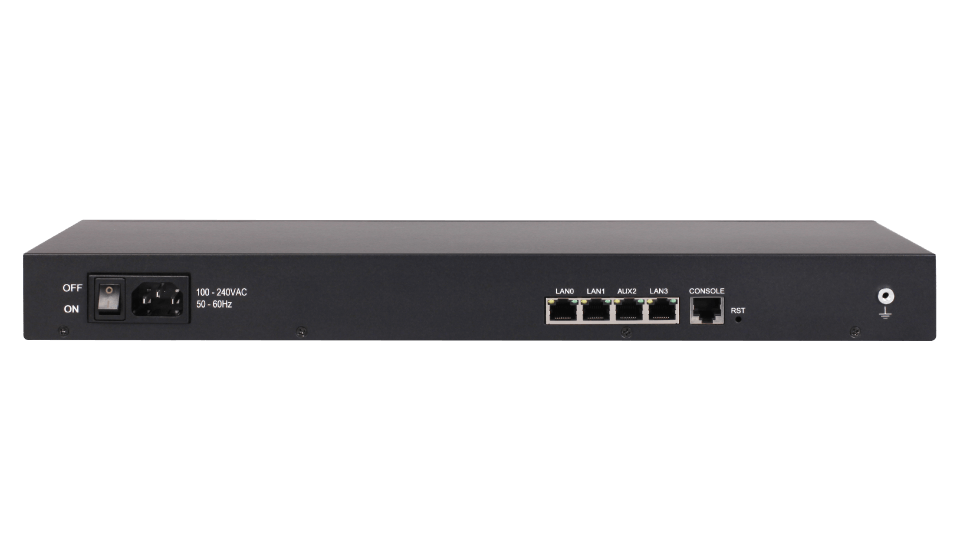

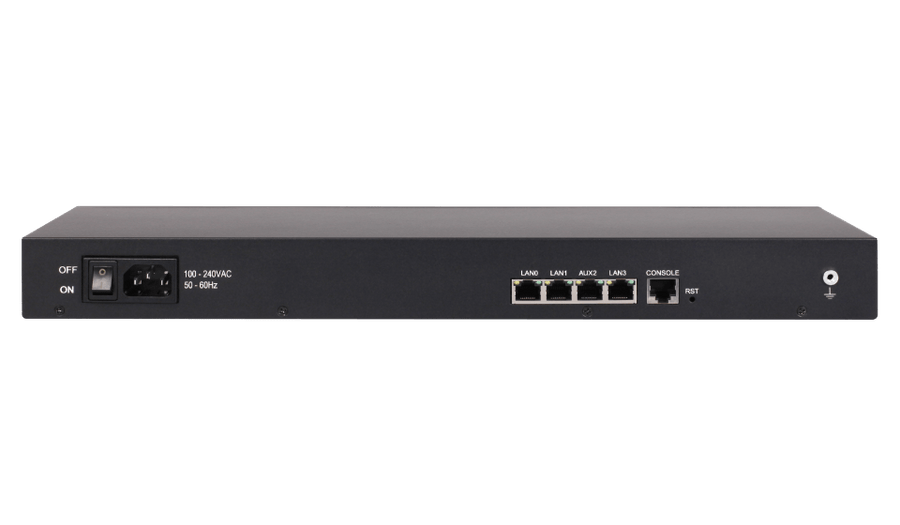

Dinstar DAG2000-8S8O Hybrid VoIP Gateway
The Dinstar DAG2000-8S8O Hybrid VoIP Gateway is a voip & telephony available in the UAE from Procure.ae.
The Dinstar DAG2000-8S8O is a higher-density hybrid analog VoIP gateway built for businesses that need to connect more analog extensions and PSTN lines to a SIP-based voice platform. It combines 8 FXS ports and 8 FXO ports in one device, making it suitable for multi-user branch offices, call centers, and organizations with larger analog voice requirements.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Type
Hybrid Analog VoIP Gateway
- 8 FXS + 8 FXO ports, 3 LAN
- Power failover and IP/SIP failover
- SIP, IMS, and SIP v2.0 over UDP/TCP/TLS
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
8 FXS + 8 FXO ports, 3 LAN
02
Power failover and IP/SIP failover
03
SIP, IMS, and SIP v2.0 over UDP/TCP/TLS
04
T.38 / T.30 fax and pass-through support
05
Flexible routing and dial plan
06
3-way conference, call transfer, call forwarding, voicemail, MWI, music on hold
07
QoS, VLAN tagging, TLS/SRTP, SNMP/TR-069
08
Interoperable with leading softswitches, IP-PBXs, and SIP servers
Specifications
15 specificationsGeneral
Key FeaturesPower and network failure lifeline, T.38/pass-through fax, Flexible routing and manipulation, Cloud-based management, Auto provisioning
TypeHybrid Analog VoIP Gateway
Performance
Storage ConditionsTemperature: -20 to 80 °C
Audio
Audio CodecsG.711 A/μ, G.723.1, G.729 A/B
Voice QualityG.168 echo cancellation (128 ms), VAD, CNG, silence suppression
Connectivity
Connectivity8 x FXS + 8 FXO, Ethernet, SIP
Ethernet3 x LAN, 10/100 Mbps
Input Voltage100-240 V AC, 50/60 Hz
Ports8 x FXS + 8 x FXO (RJ11)
ProtocolsSIP 2.0 (UDP/TCP), RFC3261, IPv4/IPv6, TCP, UDP, HTTP/HTTPS, NTP, OpenVPN, SNMP, TR069
Serial PortRS-232 × 1 (console, 115200 bps)
Power
Power Consumption48 W
Physical
Operating Humidity10% to 90% RH (non-condensing)
Operating Temperature0°C to 45°C
Compliance
CertificationsCE, FCC
Questions
Can’t find your answer? Ask on WhatsApp
What is the Dinstar voip & telephony used for?
The Dinstar DAG2000-8S8O is a higher-density hybrid analog VoIP gateway built for businesses that need to connect more analog extensions and PSTN lines to a SIP-based voice platform.
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support. Contact us for the full warranty details applicable to this model.
Is this certified for Microsoft Teams and Zoom?
It works with major video platforms; ask us for the exact certifications on this model.
