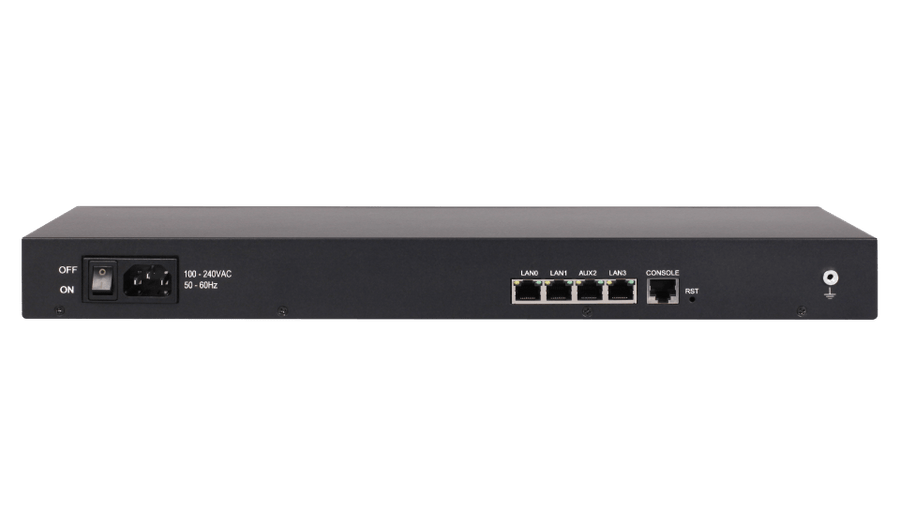

Dinstar DAG2000-8S8O Hybrid VoIP Gateway

The Dinstar DAG2000-8S8O Hybrid VoIP Gateway is a voip & telephony available in the UAE from Procure.ae.

The Dinstar DAG2000-8S8O is a higher-density hybrid analog VoIP gateway built for businesses that need to connect more analog extensions and PSTN lines to a SIP-based voice platform. It combines 8 FXS ports and 8 FXO ports in one device, making it suitable for multi-user branch offices, call centers, and organizations with larger analog voice requirements.

It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.

Type

Hybrid Analog VoIP Gateway

Key features

8 FXS + 8 FXO ports, 3 LAN

Power failover and IP/SIP failover

SIP, IMS, and SIP v2.0 over UDP/TCP/TLS

T.38 / T.30 fax and pass-through support

Flexible routing and dial plan

3-way conference, call transfer, call forwarding, voicemail, MWI, music on hold

QoS, VLAN tagging, TLS/SRTP, SNMP/TR-069

Interoperable with leading softswitches, IP-PBXs, and SIP servers

Specifications

General
Key Features	Power and network failure lifeline, T.38/pass-through fax, Flexible routing and manipulation, Cloud-based management, Auto provisioning
Type	Hybrid Analog VoIP Gateway

Performance
Storage Conditions	Temperature: -20 to 80 °C

Audio
Audio Codecs	G.711 A/μ, G.723.1, G.729 A/B
Voice Quality	G.168 echo cancellation (128 ms), VAD, CNG, silence suppression

Connectivity
Connectivity	8 x FXS + 8 FXO, Ethernet, SIP
Ethernet	3 x LAN, 10/100 Mbps
Input Voltage	100-240 V AC, 50/60 Hz
Ports	8 x FXS + 8 x FXO (RJ11)
Protocols	SIP 2.0 (UDP/TCP), RFC3261, IPv4/IPv6, TCP, UDP, HTTP/HTTPS, NTP, OpenVPN, SNMP, TR069
Serial Port	RS-232 × 1 (console, 115200 bps)

Power
Power Consumption	48 W

Physical
Operating Humidity	10% to 90% RH (non-condensing)
Operating Temperature	0°C to 45°C

Compliance
Certifications	CE, FCC
