DinstarPABX & VoIPSKU DAG2000-24S

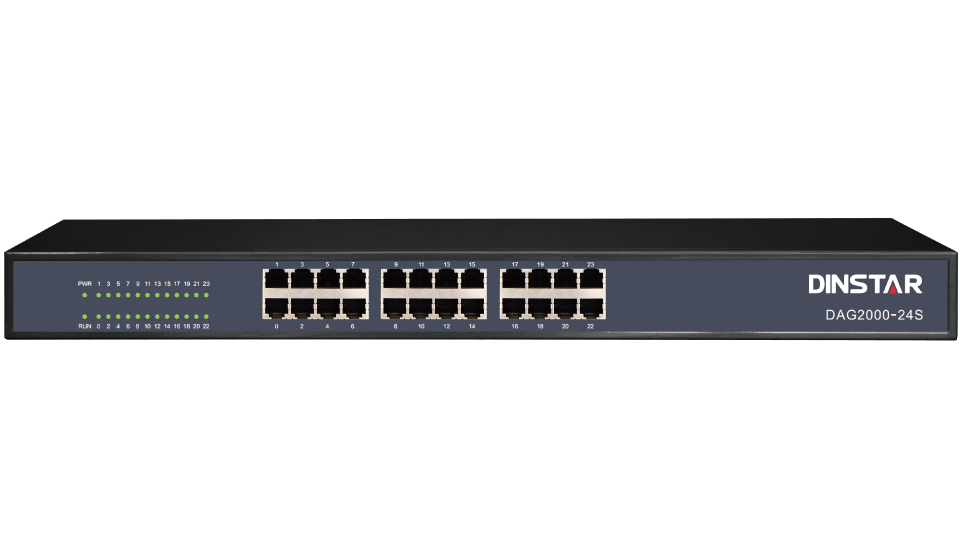

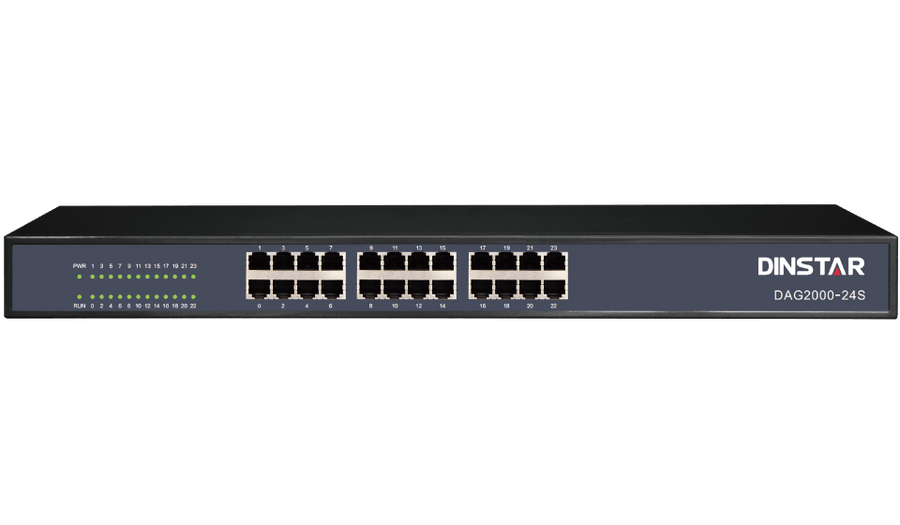

DAG2000-24S(GE) Analog VoIP Gateway
The DAG2000-24S(GE) Analog VoIP Gateway is a voip & telephony available in the UAE from Procure.ae.
The DAG2000-24S(GE) Analog VoIP Gateway is a high-performance FXS VoIP gateway designed to connect analog telephones, fax machines, and legacy PBX systems to modern IP-based communication networks. It enables businesses to migrate to VoIP while preserving existing analog infrastructure.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Type
Analog FXS VoIP Gateway
Weight
3.2 kg
- FXS ports for analog phone and fax connectivity
- SIP v2.0 compatibility with major VoIP platforms
- High-quality voice with echo cancellation and noise suppression
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
FXS ports for analog phone and fax connectivity
02
SIP v2.0 compatibility with major VoIP platforms
03
High-quality voice with echo cancellation and noise suppression
04
Flexible dial plans and intelligent routing
05
Support for T.38 and pass-through fax
06
Web-based management, SNMP, and remote provisioning
07
Secure VoIP with firewall and encryption support
08
Scalable architecture for growing deployments
Specifications
18 specificationsGeneral
Key FeaturesT.38 and pass-through fax (up to 14.4 kbps), Primary/backup SIP server, Layer 3 QoS/DiffServ, Cloud-based management, Auto provisioning
TypeAnalog FXS VoIP Gateway
Performance
Storage ConditionsTemperature: -20 to 80 °C
Audio
Audio CodecsG.711 A/μ, G.723.1, G.729 A/B, G.726, AMR, iLBC, Opus (optional)
Voice QualityG.168 echo cancellation (128 ms)
Connectivity
Connectivity24 x FXS (RJ11/RJ21), Ethernet, SIP
Ethernet3 x LAN, 10/100 Mbps RJ45
Input Voltage100-240 V AC, 50/60 Hz
Ports24 x FXS (RJ11), 1 x RJ21 (50-pin)
ProtocolsSIP 2.0 (UDP/TCP), RFC3261, SDP, RTP/RTCP, STUN, IPv4/IPv6, VLAN 802.1Q, TR069/TR181, SNMP
Serial PortRS-232 × 1 (console, 115200 bps)
Power
Power Consumption40 W (typical)
Physical
Dimensions440 x 230 x 44 mm
Operating Humidity10% to 90% RH (non-condensing)
Operating Temperature0°C to 45°C
Weight3.2 kg
Compliance
CertificationsCE, FCC
Security FeaturesSIP TLS, SRTP
Questions
Can’t find your answer? Ask on WhatsApp
What is the Dinstar voip & telephony used for?
The DAG2000-24S(GE) Analog VoIP Gateway is a high-performance FXS VoIP gateway designed to connect analog telephones, fax machines, and legacy PBX systems to modern IP-based communication networks.
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support. Contact us for the full warranty details applicable to this model.
Is this certified for Microsoft Teams and Zoom?
It works with major video platforms; ask us for the exact certifications on this model.
What is this — a webcam, video bar, or full room system?
