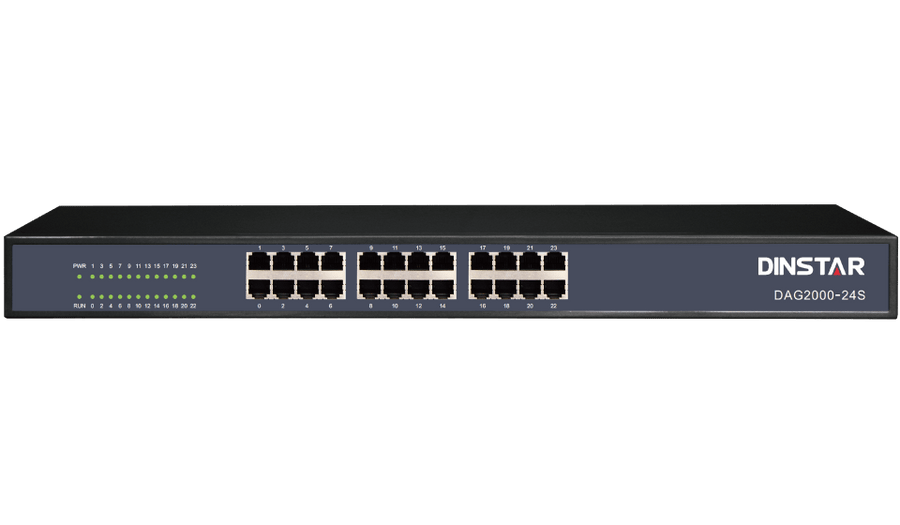

DAG2000-24S(GE) Analog VoIP Gateway

DAG2000-24S(GE) Analog VoIP Gateway

The DAG2000-24S(GE) Analog VoIP Gateway is a voip & telephony available in the UAE from Procure.ae.

The DAG2000-24S(GE) Analog VoIP Gateway is a high-performance FXS VoIP gateway designed to connect analog telephones, fax machines, and legacy PBX systems to modern IP-based communication networks. It enables businesses to migrate to VoIP while preserving existing analog infrastructure.

It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.

Type
Analog FXS VoIP Gateway
Weight
3.2 kg

Key features

01
FXS ports for analog phone and fax connectivity
02
SIP v2.0 compatibility with major VoIP platforms
03
High-quality voice with echo cancellation and noise suppression
04
Flexible dial plans and intelligent routing
05
Support for T.38 and pass-through fax
06
Web-based management, SNMP, and remote provisioning
07
Secure VoIP with firewall and encryption support
08
Scalable architecture for growing deployments

Specifications

General
Key FeaturesT.38 and pass-through fax (up to 14.4 kbps), Primary/backup SIP server, Layer 3 QoS/DiffServ, Cloud-based management, Auto provisioning
TypeAnalog FXS VoIP Gateway
Performance
Storage ConditionsTemperature: -20 to 80 °C
Audio
Audio CodecsG.711 A/μ, G.723.1, G.729 A/B, G.726, AMR, iLBC, Opus (optional)
Voice QualityG.168 echo cancellation (128 ms)
Connectivity
Connectivity24 x FXS (RJ11/RJ21), Ethernet, SIP
Ethernet3 x LAN, 10/100 Mbps RJ45
Input Voltage100-240 V AC, 50/60 Hz
Ports24 x FXS (RJ11), 1 x RJ21 (50-pin)
ProtocolsSIP 2.0 (UDP/TCP), RFC3261, SDP, RTP/RTCP, STUN, IPv4/IPv6, VLAN 802.1Q, TR069/TR181, SNMP
Serial PortRS-232 × 1 (console, 115200 bps)
Power
Power Consumption40 W (typical)
Physical
Dimensions440 x 230 x 44 mm
Operating Humidity10% to 90% RH (non-condensing)
Operating Temperature0°C to 45°C
Weight3.2 kg
Compliance
CertificationsCE, FCC
Security FeaturesSIP TLS, SRTP
