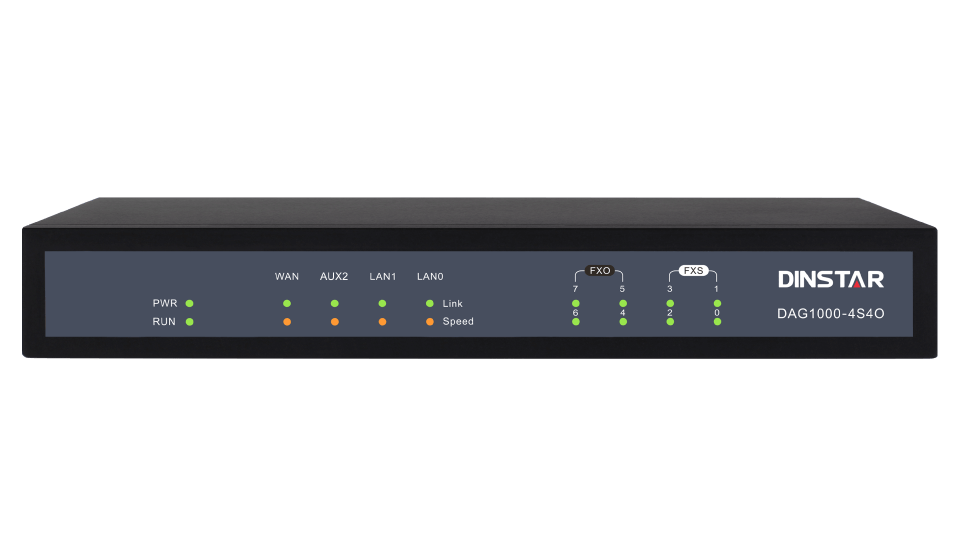

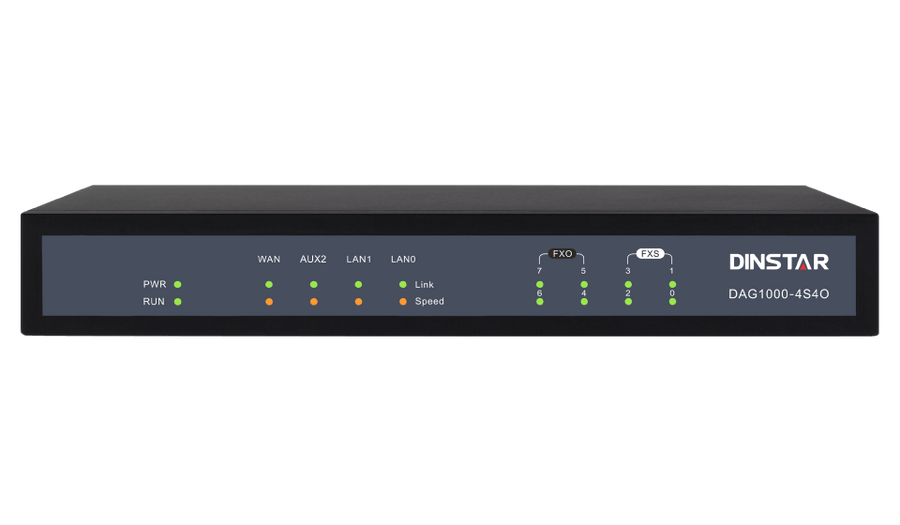

Dinstar DAG1000-4S4O Hybrid VoIP Gateway
The Dinstar DAG1000-4S4O Hybrid VoIP Gateway is a voip & telephony available in the UAE from Procure.ae.
The Dinstar DAG1000-4S4O is a hybrid analog VoIP gateway designed to provide seamless connectivity between IP-based telephony networks and legacy telephones, fax machines, and PBX systems. With 4 FXS ports and 4 FXO ports, it gives businesses more flexibility to keep analog devices and PSTN lines active while moving toward SIP communications.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Type
Hybrid Analog VoIP Gateway
- 4 FXS + 4 FXO ports, 1 WAN, 2 LAN
- Power failover and IP/SIP failover
- SIP, IMS, and SIP v2.0 over UDP/TCP/TLS
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4 FXS + 4 FXO ports, 1 WAN, 2 LAN
02
Power failover and IP/SIP failover
03
SIP, IMS, and SIP v2.0 over UDP/TCP/TLS
04
T.38 / T.30 fax and pass-through support
05
Flexible routing and dial plan
06
3-way conference, call transfer, call forwarding, voicemail, MWI, music on hold
07
QoS, VLAN tagging, TLS/SRTP, SNMP/TR-069
08
Interoperable with leading softswitches, IP-PBXs, and SIP servers
Specifications
17 specificationsGeneral
Key FeaturesT.38/pass-through fax, FXO Caller ID (FSK/DTMF), 3 km max FXS cable length
TypeHybrid Analog VoIP Gateway
Performance
Storage ConditionsTemperature: -20 to 80 °C
Audio
Audio CodecsG.711 A/μ, G.723.1, G.729 A/B
Voice QualityG.168 echo cancellation (128 ms)
Connectivity
Connectivity4 x FXS + 4 FXO (RJ11), WAN+LAN 10/100M, SIP
Ethernet1 x WAN + 2 x LAN, 10/100 Mbps
Input Voltage100-240 V AC
Ports4 x FXS + 4 x FXO (RJ11)
ProtocolsSIP 2.0 (UDP/TCP), RFC3261, SDP, RTP (RFC2833), STUN
Power
Power Consumption20 W
Power Source12 V DC, 2 A
Physical
Dimensions242 x 152 x 40 mm
Operating Humidity10% to 90% RH (non-condensing)
Operating Temperature0°C to 45°C
Compliance
CertificationsCE, FCC
Security FeaturesSIP TLS, SRTP
Questions
Can’t find your answer? Ask on WhatsApp
What is the Dinstar voip & telephony used for?
The Dinstar DAG1000-4S4O is a hybrid analog VoIP gateway designed to provide seamless connectivity between IP-based telephony networks and legacy telephones, fax machines, and PBX systems.
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support. Contact us for the full warranty details applicable to this model.
Is this certified for Microsoft Teams and Zoom?
It works with major video platforms; ask us for the exact certifications on this model.
