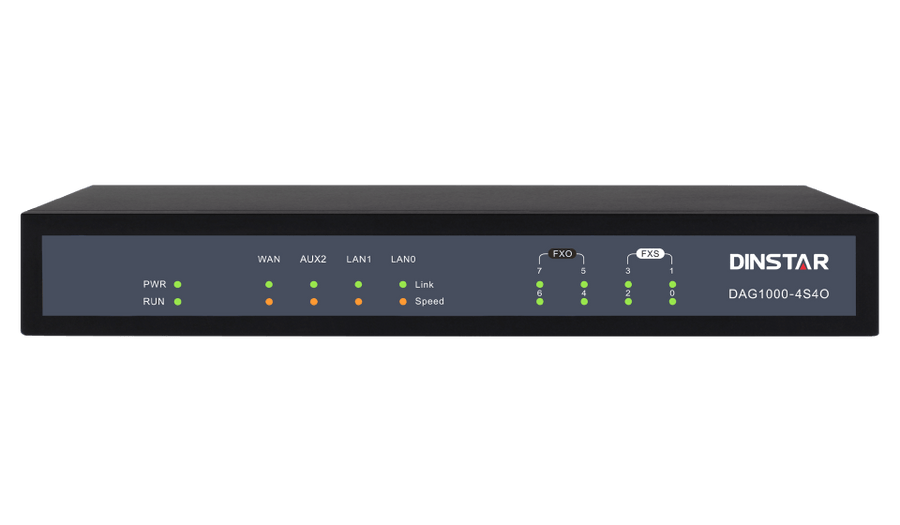

Dinstar DAG1000-4S4O Hybrid VoIP Gateway

The Dinstar DAG1000-4S4O Hybrid VoIP Gateway is a voip & telephony available in the UAE from Procure.ae.

The Dinstar DAG1000-4S4O is a hybrid analog VoIP gateway designed to provide seamless connectivity between IP-based telephony networks and legacy telephones, fax machines, and PBX systems. With 4 FXS ports and 4 FXO ports, it gives businesses more flexibility to keep analog devices and PSTN lines active while moving toward SIP communications.

It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.

Type

Hybrid Analog VoIP Gateway

Key features

4 FXS + 4 FXO ports, 1 WAN, 2 LAN

Power failover and IP/SIP failover

SIP, IMS, and SIP v2.0 over UDP/TCP/TLS

T.38 / T.30 fax and pass-through support

Flexible routing and dial plan

3-way conference, call transfer, call forwarding, voicemail, MWI, music on hold

QoS, VLAN tagging, TLS/SRTP, SNMP/TR-069

Interoperable with leading softswitches, IP-PBXs, and SIP servers

Specifications

General
Key Features	T.38/pass-through fax, FXO Caller ID (FSK/DTMF), 3 km max FXS cable length
Type	Hybrid Analog VoIP Gateway

Performance
Storage Conditions	Temperature: -20 to 80 °C

Audio
Audio Codecs	G.711 A/μ, G.723.1, G.729 A/B
Voice Quality	G.168 echo cancellation (128 ms)

Connectivity
Connectivity	4 x FXS + 4 FXO (RJ11), WAN+LAN 10/100M, SIP
Ethernet	1 x WAN + 2 x LAN, 10/100 Mbps
Input Voltage	100-240 V AC
Ports	4 x FXS + 4 x FXO (RJ11)
Protocols	SIP 2.0 (UDP/TCP), RFC3261, SDP, RTP (RFC2833), STUN

Power
Power Consumption	20 W
Power Source	12 V DC, 2 A

Physical
Dimensions	242 x 152 x 40 mm
Operating Humidity	10% to 90% RH (non-condensing)
Operating Temperature	0°C to 45°C

Compliance
Certifications	CE, FCC
Security Features	SIP TLS, SRTP
