ViewSonicDigital SignageSKU CDE8630-W1
Viewsonic CDE8630-W1 - 86" Signage Display – CDE8630-W1
The Viewsonic CDE8630-W1 - 86" Signage Display – CDE8630-W1 is a digital signage available in the UAE from Procure.ae.

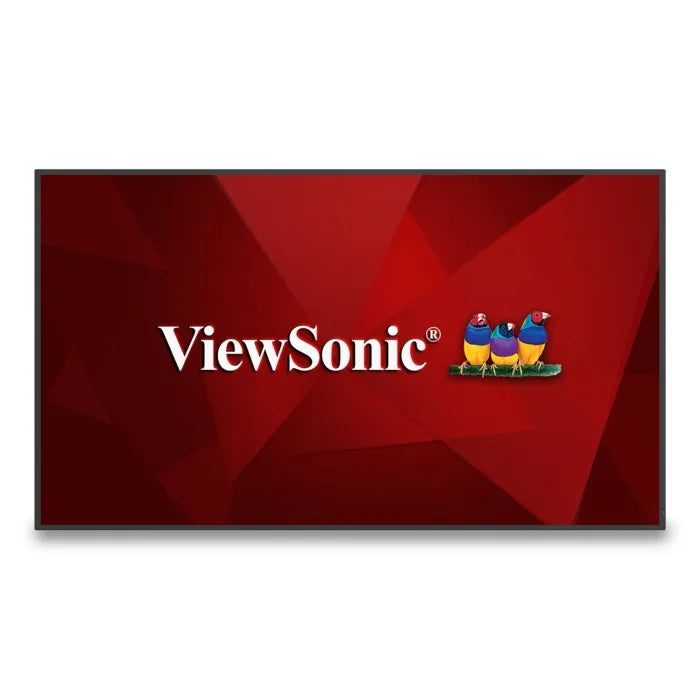

The Viewsonic CDE8630-W1 is an impressive 86-inch signage display engineered for high-impact digital signage in commercial and educational environments. Designed with an ultra-large 4K UHD screen, this display delivers stunning image clarity and vibrant colors, ensuring your content stands out in any setting. The CDE8630-W1 offers advanced wireless connectivity and seamless content management tools, making it easy to update and customize your messaging.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
450 nits
Weight
43.2 kg
- 86-Inch 4K UHD Display
- Wireless Content Sharing
- Integrated Media Player
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
86-Inch 4K UHD Display
Offers ultra-high definition visuals for clear, vibrant presentations and signage.
02
Wireless Content Sharing
Easily share content from devices without cables for seamless collaboration.
03
Integrated Media Player
Allows automated playback of multimedia content directly from USB drives.
04
Remote Device Management
Enables centralized control and monitoring for multiple displays.
05
Multiple Connectivity Options
Features HDMI, USB, and LAN ports for versatile input and output support.
06
Energy-Efficient Performance
Designed to reduce power consumption while maintaining top-notch image quality.
07
Commercial-Grade Durability
Built for 24/7 operation in demanding public environments.
08
Thin Bezel Design
Maximizes screen space and creates a modern, sleek look ideal for any venue.
Specifications
40 specificationsGeneral
Key FeaturesAll-in-one solution includes ViewBoard display and Wi-Fi adapter, Powerful ViewSonic Embedded Signage Platform (VESP), Integrated RJ45 and USB Wi-Fi, ViewBoard Cast content sharing software, myViewBoard Display app for remote screen sharing
What's in the BoxCDE8630 Wireless Presentation Display, Wi-Fi adapter, Remote control with batteries, Quick Start Guide, Power cable, HDMI Cable, USB-C cable, Wall Mount, Screws and RS232 cable
Display
Aspect Ratio16:9
BacklightDirect LED
Bezel Size14.7 mm
Brightness450 nits
Color Depth10-bit (1.07 billion colours)
Contrast Ratio1,200:1 (typ.), 5,000:1 (DCR)

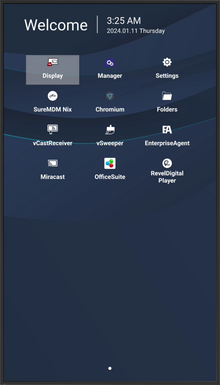

OrientationLandscape & Portrait
Panel TechnologyADS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size86 inch
Viewing Angle178° (H) / 178° (V)
Performance
Operating SystemAndroid 11
ProcessorAmlogic T982
RAM4 GB
Storage32 GB
Audio
Audio OutSPDIF out × 1
Speaker Output2 × 10 W
Connectivity
BluetoothBuilt-in
EthernetRJ45 × 1
HDMI InputsHDMI In × 3
HDMI OutputsHDMI Out × 1
Input Voltage100–240 V AC
Serial PortRS-232 × 1
USB PortsUSB 3.0 × 1, USB 2.0 × 1
USB-C PortsUSB-C × 1
Wi-FiBuilt-in
Power
Power Consumption172 W (typical)
Standby Power< 0.5 W
Physical
Dimensions1930.8 x 1101.8 x 81.6 mm
Duty Cycle24/7
Operating Humidity10% to 90% RH
Operating Temperature0°C to 40°C
Shipping Dimensions2110 x 1227 x 225 mm
Surface ProtectionAnti-glare, 3H hardness, 25% haze
VESA Mount800 x 600 mm
Weight43.2 kg
Compliance
Warranty3 years (parts, labor and backlight)
Downloads
Manufacturer documents for the Viewsonic CDE8630-W1 - 86" Signage Display – CDE8630-W1 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the ViewSonic digital signage used for?
The Viewsonic CDE8630-W1 is an impressive 86-inch signage display engineered for high-impact digital signage in commercial and educational environments.
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support. Contact us for the full warranty details applicable to this model.
What is this display used for?
It's a commercial digital signage display — ideal for menus, advertising, wayfinding, and information screens in retail, offices, and public spaces.
Can it run continuously for long hours?
Yes — commercial signage panels like this are built for extended daily operation; ask us for the exact operating-hours rating on this model.
How is the on-screen content managed?
Request a quote: WhatsApp wa.me/97145465041 or email info@procure.ae.
