Viewsonic CDE8630 - 86" Display, 3840 x 2160 Resolution, 450 cd/m2 Brightness, 24/7 Signage Display – CDE8630
- SKU: CDE8630
Actual Stock & Price Can Be Confirmed After Placing the Order.

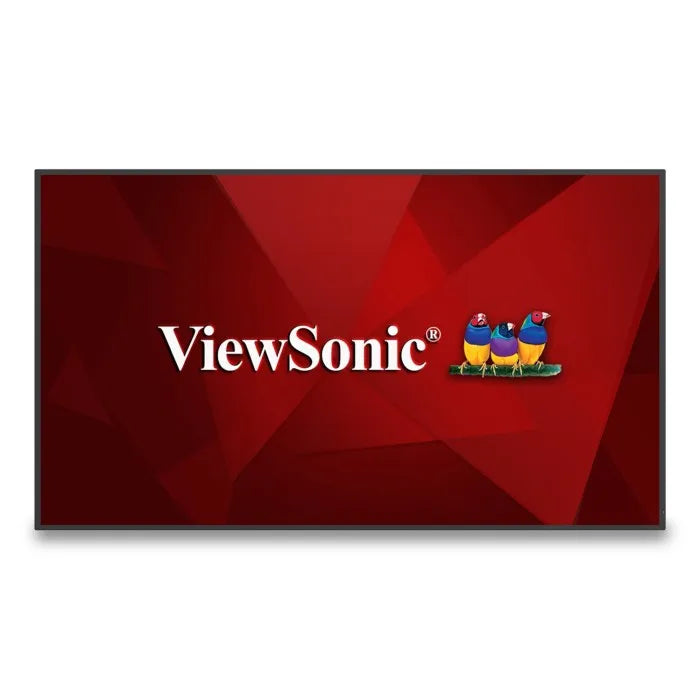

The Viewsonic CDE8630 is an impressive 86-inch 4K display designed for impactful visual presentations in commercial and professional environments. Boasting a stunning 3840 x 2160 resolution, this signage solution delivers ultra-sharp images and vibrant colors that captivate audiences. With a high 450 cd/m2 brightness... See More
The Viewsonic CDE8630 is an impressive 86-inch 4K display designed for impactful visual presentations in commercial and professional environments. Boasting a stunning 3840 x 2160 resolution, this signage solution delivers ultra-sharp images and vibrant colors that captivate audiences. With a high 450 cd/m2 brightness level, the CDE8630 excels in both well-lit and dim environments, ensuring your content is always clear and visible. This 24/7 signage display is engineered for continuous operation, making it ideal for retail, corporate boardrooms, educational institutions, and public spaces. The Viewsonic CDE8630 also features versatile connectivity options, including HDMI, USB, and LAN, for seamless integration with a wide range of devices. With its sleek design and robust build quality, this commercial display enhances any setting while offering easy installation and maintenance. Whether you're communicating vital information or engaging customers with dynamic content, the CDE8630 digital signage display stands out as a reliable, high-performance solution for all your large-format display needs.
Key Features
Ultra HD 4K Resolution - Experience exceptional image clarity with a 3840 x 2160 resolution for detailed visuals.
86-Inch Large Screen - Command attention and maximize impact with an expansive 86-inch display area.
450 cd/m2 Brightness - Enjoy vivid, clear images even in brightly lit environments.
24/7 Operation - Designed for continuous, round-the-clock performance in demanding commercial settings.
Versatile Connectivity - Connect easily with multiple inputs, including HDMI, USB, and LAN ports.
Commercial-Grade Durability - Built for reliable, long-term use with robust materials and components.
Sleek, Modern Design - Enhances any environment with its slim profile and professional appearance.
Integrated Media Player - Play content directly from USB drives for effortless presentations.
Remote Management - Easily control and manage display settings remotely via network connectivity.
Energy Efficient Technology - Optimized for low power consumption without compromising performance.
Wall Mount Compatible - Flexible installation options with standard VESA mounting support.
The Viewsonic CDE8630 is the ultimate large format display for businesses seeking outstanding digital signage solutions. Its combination of ultra-high 4K resolution, superior brightness, and 24/7 reliability ensures your message is always delivered with maximum impact. Ideal for corporate, retail, and educational spaces, the CDE8630 sets a new standard in commercial displays.
Name | Viewsonic CDE8630 - 86" Display, 3840 x 2160 Resolution, 450 cd/m2 Brightness, 24/7 Signage Display – CDE8630 |
Screen Size | 86 inch |
Warranty | Three-year limited warranty on parts, labor and backlight |
Wall Mount | 800 × 600 mm VESA Compatible |
Power Consumption | 510 W (max), 365 W (typical) |
Power Standby | = 0.5 W |
Shipping Dimensions | 2110 × 1227 × 225 mm |
Product Dimensions | 1930.8 × 1101.8 × 81.6 mm |
Product Weight | 43.2 kg |
Operating Humidity | 20-80% |
Operating Temperature | 0 °C to 40 °C |
RAM | 4GB Internal Ram |
Storage | 32GB Internal Storage |
CPU | Amlogic T982 / 1.9GHz CPU, Quad-core, 1.5GHz |

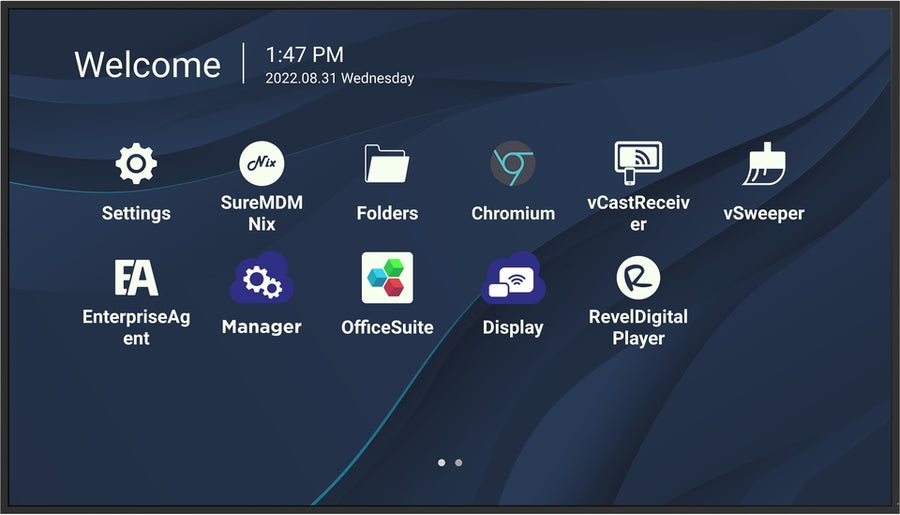

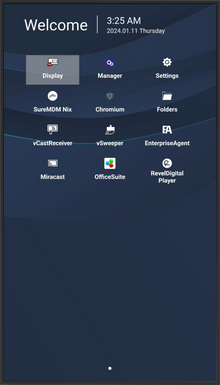

OS Version | Android 11.0 |
Serial Port | RS-232C |
Audio Out | SPDIF Audio Out × 1 |
Brightness | 450 Nits |
Resolution | 3840 x 2160 |
Backlight | DLED / LCD |
Key Features | Multiple Ways To Connect And Share Content, AV Control System Interoperability, Centralized Control Device Management, Easy Content Sharing, Superb And Stunning Picture Quality, Powerful Secured Embedded Platform |
Included Accessories | Remote control with batteries, Quick Start Guide, Power cable, HDMI Cable, USB-C cable, Wall Mount Screws, RS232 cable |
Ethernet (RJ45) | RJ45 (LAN) In |
OPS PC Slot | Intel OPS Slot In (80-pin) × 1 |
USB Ports | USB 3.0 × 1, USB 2.0 × 1 |
Type C in | USB Type C × 1 |
Hdmi Output | HDMI Out × 1 |
Hdmi Input | HDMI In × 3 |
Speaker Output / Built-in Speaker | 10 Watts × 2 |
Display Color | 1.07 Billion colors |
Viewing Angle | 178 / 178 Degrees |
Bezel Size | 0.59 (uniform) / 15 mm (uniform) |
