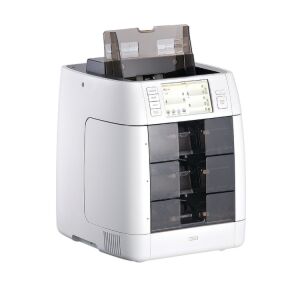

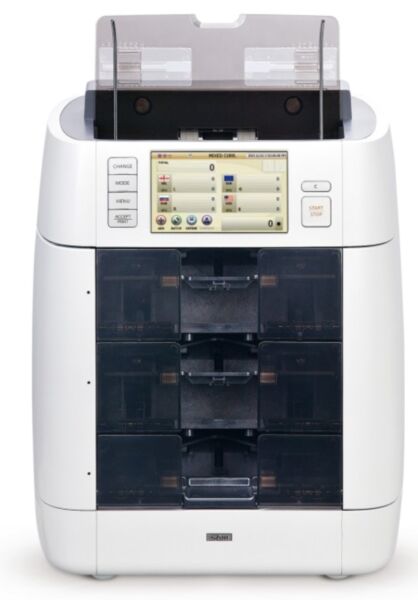

SB-3000 Fitness sorting machine

DESCRIPTION

SB Series are the most intelligent and reliable Banknote Counting Machines which use Image Processing Technology to recognize banknotes and to discriminate between different denominations. SB-3000, one of the advanced SB Series, is the world’s smallest fitness sorter having 3 pockets. SB-3000 has various and useful functions and keeps up with growing customers’ demand from all over the world. With modern design, 5” TFT Color LCD and user-friendly interface, SB-3000 provides every operator with more comfortable and efficient working environment. 3 pockets allow operator to perform daily cash processing job and sort banknotes by quality, denomination and counterfeit without any interruption.

FEATURE

1) Fitness Sorting : Tape, Dog-ear, Soil, Tear, Hole, Graffiti, Stamp etc
2) Multi-Currencies Capability : Can be configured with up to 10 currencies
3) Various Operation Modes : Mixed / Single / Face / Orient / Count / (Issue / SRL / P-OCR)
4) Various Count Modes : Mixed / Single / Count / Face / Orient / Fitness /
(Option: Issue / Serial No. Recognition & Comparison)
5) New Type of Stacker : Lift Type
6) Enhanced Sensors : CIS(Option: 2 CIS) / Magnetic/ UV / IR / Mechanical Roller Tape Detector
7) User Friendly : Resistive Touch Screen + Hard Key, 5"TFT Color LCD Multi Language support

SPECIFICATION

1) Dimension: 306(W) X 334(D) X 380(H) mm
2) Weight (Net): Approx. 18 Kg
3) Nos of Pockets: 2 + 1 (Reject)
4) Hopper Capacity: Max.700 notes
5) Stacker Capacity: Max.200 notes
6) Reject Capacity: Max.100 notes
7) Counting Speed: 700/ 1000 npm
8) Interface: Interface
