AngekisMeeting Room SolutionsSKU ASP-C-01

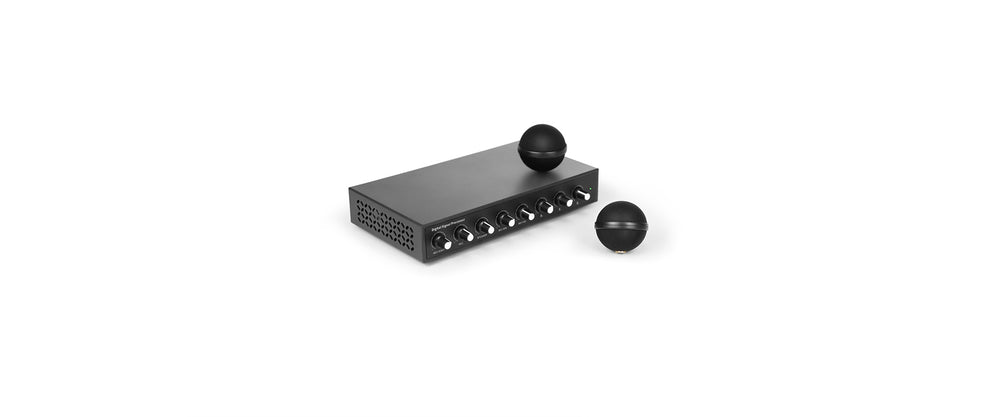

Angekis Ceiling Mic Pro Digital Signal Processor
The Angekis ASP-C-01 Ceiling Mic Pro Digital Signal Processor is a dedicated audio DSP with ceiling microphone array integration for professional conference room voice pickup and processing across the UAE.
The Angekis ASP-C-01 Ceiling Mic Pro is a purpose-built digital signal processor designed to work with ceiling-mounted microphone arrays for professional meeting room and conference space audio capture. The integrated DSP provides acoustic echo cancellation (AEC), noise suppression, automatic gain control (AGC), and beamforming processing to deliver clean, intelligible voice audio to video conferencing platforms and UC systems. Ceiling-mount microphone systems eliminate the table clutter of individual boundary or gooseneck microphones while providing uniform 360° coverage of meeting room participants. The ASP-C-01 connects to the host video conferencing system via USB or analog audio outputs and is compatible with Microsoft Teams, Zoom, Cisco Webex, and other major platforms.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Type
Ceiling Microphone System
- Integrated Acoustic Echo Cancellation (AEC)
- Beamforming Microphone Processing
- 360° Meeting Room Coverage
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Integrated Acoustic Echo Cancellation (AEC)
Eliminates loudspeaker echo from microphone signal for natural conference call audio.
02
Beamforming Microphone Processing
Focuses audio pickup on active speakers while suppressing off-axis noise sources.
03
360° Meeting Room Coverage
Ceiling installation provides uniform voice pickup across the full meeting table without dead zones.
04
Automatic Gain Control (AGC)
Maintains consistent audio level from all participants regardless of seating position or speaking volume.
05
Noise Suppression DSP
Reduces HVAC, keyboard, and ambient room noise for cleaner participant audio on calls.
06
USB & Analog Audio Output
Connects to room PCs and AV systems via standard USB audio or balanced analog outputs.
07
Platform Compatible
Works with Microsoft Teams, Zoom, Cisco Webex, and all major video conferencing platforms.
08
Ceiling Mount Design
Discreet, space-saving installation eliminates table microphone clutter for a professional room appearance.
Specifications
18 specificationsGeneral
CompatibilityWindows 7/8/10/XP, macOS
Key FeaturesAdaptive echo cancellation, adaptive noise suppression, intelligent remix, advanced audio control, Auctopus smart audio mixing technology
TypeCeiling Microphone System
What's in the BoxDigital Signal Processor Unit, Voice Area Ceiling Mics × 2, Microphone Cables × 2, Speaker Cable × 1, AEC Cable × 2, USB Data Cable (Type-B to Type-A) × 1, DC Power Adapter × 1
Audio
Dynamic Range> 105 dB
Frequency Response50 Hz – 20 kHz
MicrophoneBuilt-in
Phantom Power+48 V DC
Pickup Range10 m
Polar PatternCardioid (uni-directional)
Sensitivity-47 dB ±3 dB
Connectivity
ConnectivityUSB-B, 3.5 mm audio monitoring jack, 6 x road 3.81 mm phoenix interface, Phoenix interface
ExpansionSupports wireless microphone
Power
Power SourceDC 12 V, 2 A (100–240 V AC input)
Physical
ColorMatte black
MountingCeiling mount (suspended)
Compliance
CertificationsCE, FCC, CCC
Warranty3 years
Downloads
Manufacturer documents for the Angekis Ceiling Mic Pro Digital Signal Processor — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
How many people can the Angekis ASP-C-01 cover in a meeting room?
The ASP-C-01's beamforming microphone array is designed for small-to-medium meeting rooms. Coverage range depends on room acoustics and ceiling height; as a general guide, a single unit is suitable for rooms up to approximately 6m x 6m accommodating 8–10 participants. For larger rooms, multiple units can be daisy-chained. Contact Procure.ae for a room-specific recommendation.
Does it include installation and warranty?
Procure.ae can arrange professional ceiling installation and provides manufacturer-backed warranty support. Contact us for the full warranty details and installation service pricing applicable to this model.
Is this certified for Microsoft Teams and Zoom?
It works with major video platforms; ask us for the exact certifications on this model.
What is this — a webcam, video bar, or full room system?
Request a quote: WhatsApp wa.me/97145465041 or email info@procure.ae.
