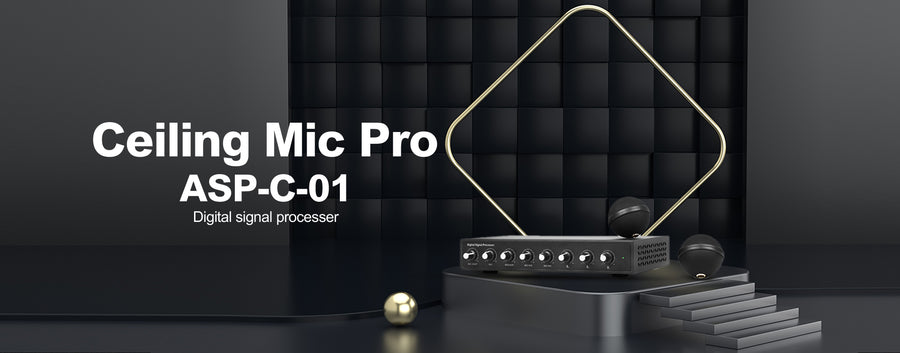

Angekis Ceiling Mic Pro Digital Signal Processor

The Angekis ASP-C-01 Ceiling Mic Pro Digital Signal Processor is a dedicated audio DSP with ceiling microphone array integration for professional conference room voice pickup and processing across the UAE.

The Angekis ASP-C-01 Ceiling Mic Pro is a purpose-built digital signal processor designed to work with ceiling-mounted microphone arrays for professional meeting room and conference space audio capture. The integrated DSP provides acoustic echo cancellation (AEC), noise suppression, automatic gain control (AGC), and beamforming processing to deliver clean, intelligible voice audio to video conferencing platforms and UC systems. Ceiling-mount microphone systems eliminate the table clutter of individual boundary or gooseneck microphones while providing uniform 360° coverage of meeting room participants. The ASP-C-01 connects to the host video conferencing system via USB or analog audio outputs and is compatible with Microsoft Teams, Zoom, Cisco Webex, and other major platforms.

It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.

Type

Ceiling Microphone System

Key features

Integrated Acoustic Echo Cancellation (AEC)

Eliminates loudspeaker echo from microphone signal for natural conference call audio.

Beamforming Microphone Processing

Focuses audio pickup on active speakers while suppressing off-axis noise sources.

360° Meeting Room Coverage

Ceiling installation provides uniform voice pickup across the full meeting table without dead zones.

Automatic Gain Control (AGC)

Maintains consistent audio level from all participants regardless of seating position or speaking volume.

Noise Suppression DSP

Reduces HVAC, keyboard, and ambient room noise for cleaner participant audio on calls.

USB & Analog Audio Output

Connects to room PCs and AV systems via standard USB audio or balanced analog outputs.

Platform Compatible

Works with Microsoft Teams, Zoom, Cisco Webex, and all major video conferencing platforms.

Ceiling Mount Design

Discreet, space-saving installation eliminates table microphone clutter for a professional room appearance.

Specifications

General
Compatibility	Windows 7/8/10/XP, macOS
Key Features	Adaptive echo cancellation, adaptive noise suppression, intelligent remix, advanced audio control, Auctopus smart audio mixing technology
Type	Ceiling Microphone System
What's in the Box	Digital Signal Processor Unit, Voice Area Ceiling Mics × 2, Microphone Cables × 2, Speaker Cable × 1, AEC Cable × 2, USB Data Cable (Type-B to Type-A) × 1, DC Power Adapter × 1

Audio
Dynamic Range	> 105 dB
Frequency Response	50 Hz – 20 kHz
Microphone	Built-in
Phantom Power	+48 V DC
Pickup Range	10 m
Polar Pattern	Cardioid (uni-directional)
Sensitivity	-47 dB ±3 dB

Connectivity
Connectivity	USB-B, 3.5 mm audio monitoring jack, 6 x road 3.81 mm phoenix interface, Phoenix interface
Expansion	Supports wireless microphone

Power
Power Source	DC 12 V, 2 A (100–240 V AC input)

Physical
Color	Matte black
Mounting	Ceiling mount (suspended)

Compliance
Certifications	CE, FCC, CCC
Warranty	3 years
