BSS Soundweb London BLU-806 Signal Processor with BLU link and DanteBSS Audio
Audio EquipmentSKU BSSBLU806M-EK

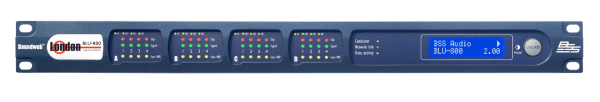

BSS Soundweb London BLU-806 Signal Processor with BLU link and Dante

The BSS Audio Soundweb London BLU-806 DSP Signal Processor with BLU Link and Dante is a flagship high-channel-count audio processor for large enterprise AV installations, integrating BSS and Dante network audio ecosystems across the UAE.

The BSS Audio Soundweb London BLU-806 is the most powerful single unit in the Soundweb London processor family, providing 8 analog inputs and 6 analog outputs as a baseline, with expansion card slots supporting up to a total of 24 inputs and 12 outputs with optional expansion cards. It integrates native BLU link audio networking for intra-BSS-system audio distribution, and a built-in Dante network audio interface for interoperability with the industry's most widely adopted IP audio standard — enabling connection to thousands of Dante-enabled devices from 500+ manufacturers. Fully configured via the free Audio Architect software, the BLU-806 supports any combination of EQ, dynamics, delay, routing matrix, automatic mixing, and DSP signal processing across all channels.

It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.

  • 8 Analog Inputs / 6 Analog Outputs (Expandable)
  • Built-In Dante Network Audio
  • BLU Link Audio Networking
Price
On request · best price
1
Download spec sheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
8 Analog Inputs / 6 Analog Outputs (Expandable)
Base I/O expandable to 24 in / 12 out with optional Soundweb London expansion cards.
02
Built-In Dante Network Audio
128 Dante send and 128 Dante receive channels for integration with any Dante-enabled device from 500+ manufacturers.
03
BLU Link Audio Networking
Native BSS audio networking for intra-system connectivity across Soundweb London devices.
04
Full Soundweb London DSP Engine
EQ, dynamics, delay, automatic mixing, routing matrix, and all standard Soundweb processing blocks.
05
Audio Architect Software
Complete configuration, preset management, and system monitoring via the free BSS Audio Architect PC tool.
06
Expansion Card Slots
Multiple expansion slots for adding analog, digital, CobraNet, AVB, or telephony interface cards.
07
Remote Network Monitoring
Real-time parameter and system health monitoring over Ethernet for facilities IT teams.
08
3U 19-Inch Rack-Mount Format
Professional rack-mount form factor for AV equipment room installation.

Specifications

5 specifications
General
Key Features4 configurable I/O card slots, EN 54-16 certified for life safety, front panel LCD, HiQnet Audio Architect configuration
Connectivity

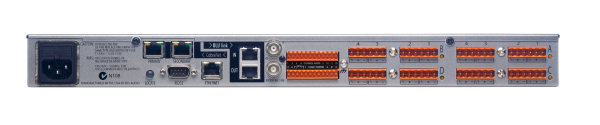

ConnectivityDante (primary/secondary), AES67, BLU link, Ethernet control, RS-232, GPIO (12 in, 6 out)
Power
Power SourceInternal universal power supply
Physical
MountingRack mount (1U)
Compliance
Country of OriginUnited Kingdom

Questions

Can’t find your answer? Ask on WhatsApp

What makes the BLU-806 suitable for large-scale AV installations?
The BLU-806's combination of built-in Dante networking (128 send/128 receive channels), expandable I/O up to 24 inputs, and full Soundweb London DSP processing in a single 3U chassis makes it the most scalable and network-flexible processor in the BSS lineup. It can serve as the central DSP hub for a large venue or as one node in a multi-processor campus system.
Does it include installation and warranty?
Procure.ae can arrange system integration and provides manufacturer-backed warranty support. Contact us for the full warranty details and installation service options applicable to this model.
Is this available with delivery and support across the UAE?
Yes — Procure.ae supplies it across Dubai, Abu Dhabi, Sharjah and the wider GCC, with procurement-ready quotations and after-sales support.
Can I get a demo or bulk/tender pricing?
Request a quote: WhatsApp wa.me/97145465041 or email info@procure.ae.
