BSS Soundweb London BLU-806 Signal Processor with BLU link and Dante — specification sheet
Procure
Product specification sheet procure.ae · +971 4 546 5041
BSS Audio · BSSBLU806M-EK · Audio Accessories

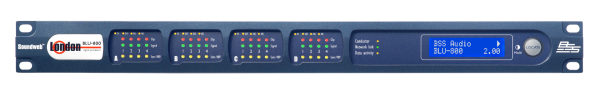

BSS Soundweb London BLU-806 Signal Processor with BLU link and Dante

BSS Soundweb London BLU-806 Signal Processor with BLU link and Dante

The BSS Audio Soundweb London BLU-806 DSP Signal Processor with BLU Link and Dante is a flagship high-channel-count audio processor for large enterprise AV installations, integrating BSS and Dante network audio ecosystems across the UAE.

The BSS Audio Soundweb London BLU-806 is the most powerful single unit in the Soundweb London processor family, providing 8 analog inputs and 6 analog outputs as a baseline, with expansion card slots supporting up to a total of 24 inputs and 12 outputs with optional expansion cards. It integrates native BLU link audio networking for intra-BSS-system audio distribution, and a built-in Dante network audio interface for interoperability with the industry's most widely adopted IP audio standard — enabling connection to thousands of Dante-enabled devices from 500+ manufacturers. Fully configured via the free Audio Architect software, the BLU-806 supports any combination of EQ, dynamics, delay, routing matrix, automatic mixing, and DSP signal processing across all channels.

It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.

Key features

01
8 Analog Inputs / 6 Analog Outputs (Expandable)
Base I/O expandable to 24 in / 12 out with optional Soundweb London expansion cards.
02
Built-In Dante Network Audio
128 Dante send and 128 Dante receive channels for integration with any Dante-enabled device from 500+ manufacturers.
03
BLU Link Audio Networking
Native BSS audio networking for intra-system connectivity across Soundweb London devices.
04
Full Soundweb London DSP Engine
EQ, dynamics, delay, automatic mixing, routing matrix, and all standard Soundweb processing blocks.
05
Audio Architect Software
Complete configuration, preset management, and system monitoring via the free BSS Audio Architect PC tool.
06
Expansion Card Slots
Multiple expansion slots for adding analog, digital, CobraNet, AVB, or telephony interface cards.
07
Remote Network Monitoring
Real-time parameter and system health monitoring over Ethernet for facilities IT teams.
08
3U 19-Inch Rack-Mount Format
Professional rack-mount form factor for AV equipment room installation.

Specifications

General
Key Features4 configurable I/O card slots, EN 54-16 certified for life safety, front panel LCD, HiQnet Audio Architect configuration
Connectivity
ConnectivityDante (primary/secondary), AES67, BLU link, Ethernet control, RS-232, GPIO (12 in, 6 out)
Power
Power SourceInternal universal power supply
Physical
MountingRack mount (1U)
Compliance
Country of OriginUnited Kingdom
QR code to BSS Soundweb London BLU-806 Signal Processor with BLU link and Dante on procure.ae
Get our best price for this product
Scan to open it on procure.ae, or contact the Procure sales team:
☎ +971 4 546 5041  ·  WhatsApp  ·  ✉ info@procure.ae  ·  🔗 View product page

This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.

Specifications are provided by the manufacturer and may change without notice.

Pricing is quote-based. Contact Procure for current pricing and availability.

Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
