BiampMeeting Room SolutionsSKU TesiraFORTÉ VT DSP

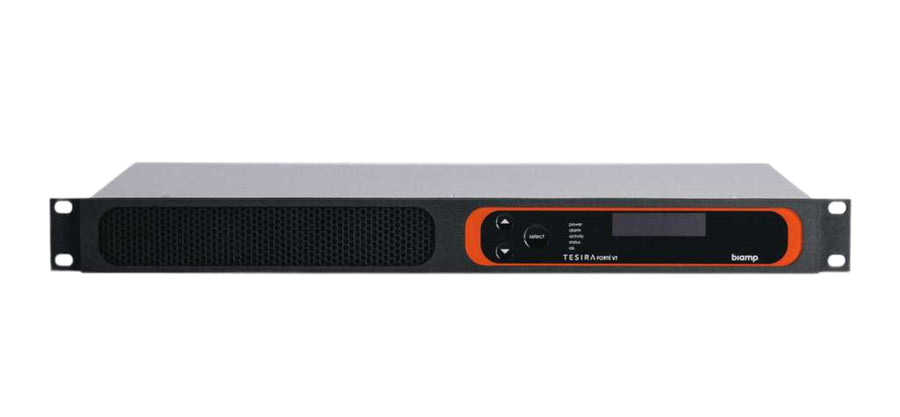

Biamp TesiraFORTÉ VT Conferencing Audio DSP – 920-00449-00001
The Biamp TesiraFORTÉ VT is a 1RU fixed I/O conferencing DSP for unified communications rooms. It has AEC on 12 microphone/line inputs, 8 outputs, configurable USB audio and built-in SIP VoIP and FXO telephony. Procure.ae supplies the TesiraFORTÉ VT across the UAE.
The TesiraFORTÉ VT is a fixed I/O DSP for unified communications environments. Acoustic echo cancellation (AEC) runs on all 12 microphone/line inputs, and eight microphone/line outputs support flexible system designs. Configurable USB audio connects it to UC platforms, and built-in SIP VoIP and FXO telephony interfaces support modern and legacy voice workflows. It uses 24-bit converters with a dynamic range above 108 dB.
The VT suits small to medium meeting spaces that need reliable audio processing with integrated telephony in one chassis. RS-232 and four-pin GPIO connect it to third-party control systems and room automation. The 1RU rack-mountable chassis with an internal universal power supply reduces installation complexity. The TesiraFORTÉ DAN VT adds Dante networking and AES67 interoperability to the same I/O and telephony design.
Type
Conferencing Audio DSP
Weight
3.63 kg
- Echo-free communication
- Flexible routing and USB
- UC and telephony integration
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Echo-free communication
12 microphone/line inputs with AEC on all channels deliver natural, intelligible speech.
02
Flexible routing and USB
8 microphone/line outputs and configurable USB audio support adaptable system designs.
03
UC and telephony integration
Built-in SIP VoIP and FXO telephone interfaces support modern and legacy voice workflows.
04
External control
RS-232 and four-pin GPIO support third-party control systems and room automation.
05
Local interaction
A front-panel OLED display with capacitive-touch navigation simplifies device access and status checks.
06
Rack installation
A 1RU rack-mountable chassis with an internal universal power supply reduces installation complexity.
07
Compliance and warranty
CE marked, UL listed, RoHS compliant, TAA compliant, Biamp Workplace Ready and backed by a 5-year warranty.
Specifications
19 specificationsGeneral
Key FeaturesFixed I/O, AEC on 12 mic/line inputs, 8 mic/line outputs, configurable USB audio, SIP VoIP, FXO telephony, RS-232, GPIO, 1RU rack mount
ModelTesiraFORTÉ VT DSP
TypeConferencing Audio DSP
Display
DisplayFront-panel OLED with capacitive-touch navigation
Audio
Dynamic Range> 108 dB
Frequency Response20 Hz to 20 kHz (+0.25 dB / -0.5 dB)
Impedance8 kΩ (balanced)
Phantom Power+48 V DC (7 mA per input)
Connectivity
ConnectivityConfigurable USB audio, RS-232, four-pin GPIO
Input Voltage100–240 V AC, 50/60 Hz
Inputs12 AEC-enabled mic/line inputs
Outputs8 mic/line outputs
ProtocolsSIP VoIP, FXO telephony
Power
Power Consumption< 35 W
Physical
Operating Temperature0 to 40 °C
Rack Units1 RU
Weight3.63 kg
Compliance
CertificationsFCC Part 15B, FCC Part 68, Industry Canada CS-03, CE, UL and C-UL, RCM, RoHS, TAA compliant
Warranty5 years
Downloads
Manufacturer documents for the Biamp TesiraFORTÉ VT Conferencing Audio DSP – 920-00449-00001 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the TesiraFORTÉ VT have echo cancellation on every input?
Yes. Acoustic echo cancellation runs on all 12 microphone/line inputs, which keeps speech natural and intelligible for remote participants. The eight mic/line outputs handle loudspeakers, recording feeds and overflow zones in the same unit.
Can the TesiraFORTÉ VT connect to UC platforms by USB?
Yes. It has configurable USB audio for UC integration. The manufacturer's specifications do not list the platforms it is certified with, so confirm the exact UC setup with Procure.ae before ordering.
Does the TesiraFORTÉ VT support analog phone lines and VoIP?
Yes. It has built-in SIP VoIP and standard FXO telephone interfaces, so it supports both IP calling and legacy analog telephony. The FXO interface connects to standard analog phone lines, and the SIP VoIP interface connects to IP telephony.
Does the TesiraFORTÉ VT fit a standard equipment rack?
Yes. It is a 1RU rack-mountable chassis with an internal universal power supply. It weighs 3.63 kg (8 lbs) and draws less than 35 W. The OLED display sits on the front panel for status and diagnostics.
