BiampMeeting Room SolutionsSKU Tesira AMP-A460H
Biamp Tesira 4-Channel Conferencing Amplifier – AMP-A460H

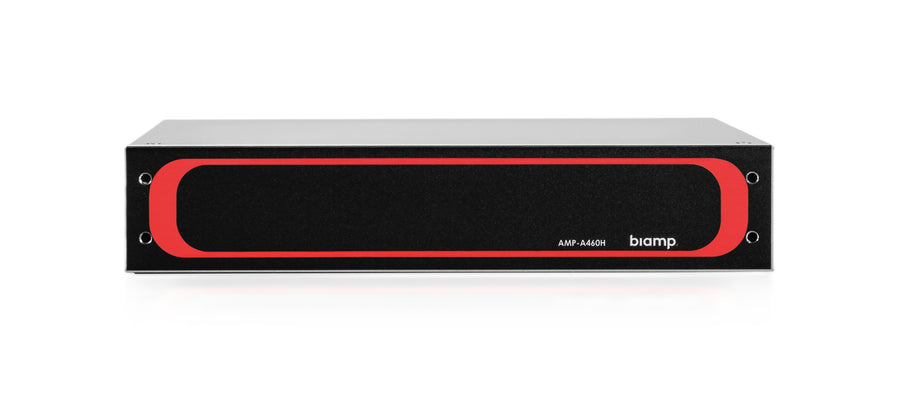

The Biamp Tesira AMP-A460H is a 4-channel, 60 W half-rack amplifier for conferencing and audio systems. It has bridgeable channels and supports 70 V and 100 V constant voltage systems. Procure.ae supplies the Biamp Tesira AMP-A460H across the UAE for conference room installations.
The AMP-A460H delivers up to 60 W per channel into single-channel 4 Ω or 8 Ω loads, and up to 120 W when channels are bridged. Input sensitivity is 0 dBu at 8 Ω and 70 V, and +1.6 dBu at 100 V. Total harmonic distortion plus noise is below 0.3% at rated power. Frequency response is ±1 dB from 20 Hz to 20 kHz, with a dynamic range of 100 dB.
Three manual switches select constant voltage operation, channel bridging and an 80 Hz high-pass filter. The amplifier is a Class D design with convection cooling and LED indicators on each output channel. It is rack mountable and ships with a rack mount kit. The manufacturer's specifications state indoor use from 0 to 40 °C, and no additional software is needed.
Type
Conferencing Amplifier
Weight
1.91 kg
- Four channels
- Bridgeable channels
- 70 V and 100 V support
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Four channels
Four-channel amplifier rated at 60 W per channel.
02
Bridgeable channels
Channels can be bridged for up to 120 W of output.
03
70 V and 100 V support
Supports both 70 V and 100 V constant voltage systems.
04
Manual switches
Three switches select constant voltage, bridging and an 80 Hz high-pass filter.
05
Class D amplifier
Class D topology with LED indicators on each output channel.
06
No software required
No additional software is needed to operate the amplifier.
07
Rack mountable
Rack mountable, with the mounting kit included.
08
Certified and TAA compliant
CE marked, UL listed, RoHS compliant and TAA compliant.
Specifications
17 specificationsGeneral
ApplicationIndoor
Key Features4 channels, 60 W per channel, bridgeable, 70 V and 100 V constant voltage, Class D, TAA compliant
ModelTesira AMP-A460H
TypeConferencing Amplifier
What's in the BoxRack mount kit
Audio
Channels4
Dynamic Range100 dB
Frequency Response20 Hz to 20 kHz, ±1 dB
Input Sensitivity0 dBu (8 Ω, 70 V); +1.6 dBu (100 V)
Power Output60 W per channel; 120 W bridged
THD<0.3%
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
Physical
MountingHalf-rack, rack mountable
Operating Temperature0 to 40 °C
Weight1.91 kg
Compliance
CertificationsUL, C-UL, FCC Part 15B, CE, RCM, EAC, RoHS, CCC, KCC
Warranty5 years
Downloads
Manufacturer documents for the Biamp Tesira 4-Channel Conferencing Amplifier – AMP-A460H — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the Tesira AMP-A460H support 70 V and 100 V speaker systems?
Yes. The AMP-A460H supports both 70 V and 100 V constant voltage systems, and one switch sets constant voltage operation. Its input sensitivity is 0 dBu at 8 Ω and 70 V, and +1.6 dBu at 100 V.
How much power does each channel deliver?
Each channel delivers 60 W into a single-channel 4 Ω or 8 Ω load. When channels are bridged, the output reaches 120 W into 4 Ω or 8 Ω, or at 70 V or 100 V, according to the manufacturer.
Does the AMP-A460H need Tesira software to operate?
No. The manufacturer states that no additional software is needed for the AMP-A460H. Its three manual switches handle constant voltage operation, channel bridging and the 80 Hz high-pass filter. Confirm the system design with Procure.ae before ordering, including how the amplifier connects to your speakers.
Can the AMP-A460H be installed in a rack?
Yes. The AMP-A460H is a half-rack amplifier that is rack mountable, and a rack mount kit is included. It weighs 1.91 kg and is rated for indoor operation between 0 and 40 °C.
