BiampMeeting Room SolutionsSKU Parlé TTM-X
Biamp Parlé TTM-X Black Tabletop Conferencing Microphone – 920-00510-10000

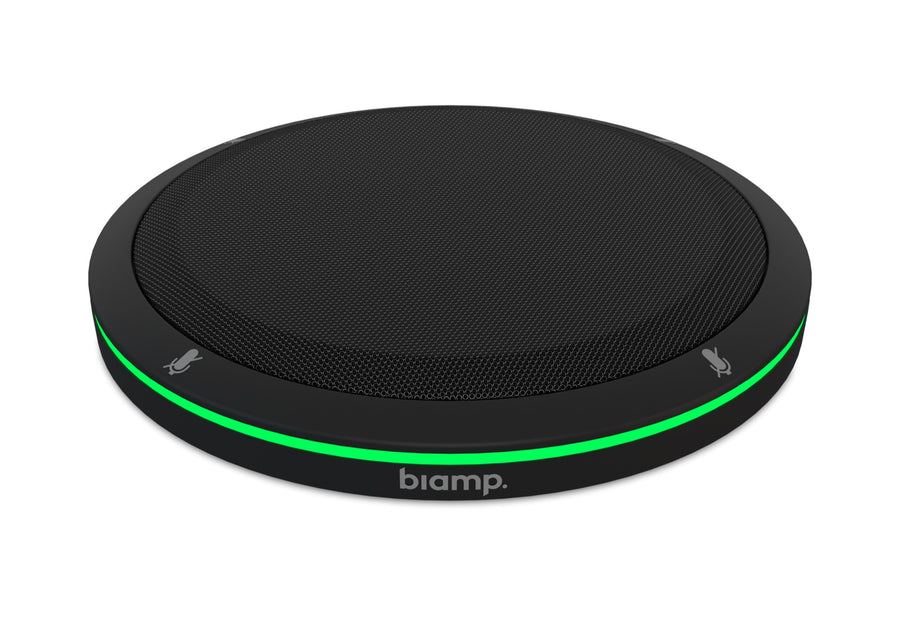

The Biamp Parlé TTM-X is a black tabletop conferencing microphone for meeting tables. It uses Beamtracking across four 90° zones for 360° pickup, with a single CAT5 cable to its network box. The network box is PoE-powered and certified for Microsoft Teams and Zoom. Procure.ae supplies it across the UAE.
The TTM-X captures voices across a full 360° table with Beamtracking technology. Four independently controlled zones track conversation and mix active talkers automatically, so lobe aiming and room mapping are not required. A single CAT5 cable carries audio, control and DSP processing from the network box, which is powered over PoE (IEEE 802.3at Class 3, 15.4 W). The network box has one RJ-45 port for an expansion microphone, so cabling for each table position stays a single run.
The microphone uses a 16-element digital array with beamformed polar pattern, rated 150 Hz to 16 kHz (±3 dB) and 90 dB dynamic range, with a maximum SPL of 109 dB at 0.5% THD. Its compact 110 mm (4.7-inch) form factor sits on any table surface. An RJ-45 port supports one TTM-XEX expansion microphone for larger tables, and the design is designed for Biamp Tesira conferencing systems.
Type
Tabletop Conferencing Microphone
Weight
231 g (0.5 lbs) microphone; 310 g (...
- 360° table pickup
- Single-cable installation
- Automatic mixing
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
360° table pickup
four independently controlled Beamtracking zones cover the full table.
02
Single-cable installation
one CAT5 cable to the network box handles audio, control and DSP.
03
Automatic mixing
conversation tracking mixes active talkers without lobe aiming or room mapping.
04
Expansion port
an RJ-45 port supports one TTM-XEX expansion microphone for larger tables.
05
Mute status LED
an LED mute indicator gives clear visual feedback in active meetings.
06
Compact tabletop form
the 110 mm (4.7-inch) body sits unobtrusively on the table.
07
UC platform certification
certified for Microsoft Teams and Zoom.
Specifications
17 specificationsGeneral
CompatibilityBiamp Tesira; Microsoft Teams; Zoom
Key FeaturesBeamtracking, four independent zones, auto-mixing, single CAT5 cable, DSP in network box, RJ-45 expansion, LED mute indicator, TAA compliant
ModelParlé TTM-X
TypeTabletop Conferencing Microphone
Audio
Dynamic Range90 dB, A-weighted (THD+N < 10%)
Frequency Response150 Hz to 16 kHz (±3 dB)
Max SPL109 dB (at 0.5% THD)
Microphone16-element digital array
Polar PatternBeamformed, Beamtracking four 90° zones (360° pickup)
Connectivity
PoEIEEE 802.3at Class 3 (15.4 W) on network box
PortsRJ-45 × 1 (expansion to one TTM-XEX)
Physical
ColorBlack
Form FactorCompact tabletop, 110 mm (4.7 in)
Operating Temperature0 to 40 °C (network box)
Weight231 g (0.5 lbs) microphone; 310 g (0.7 lbs) network box
Compliance
CertificationsTAA compliant; Microsoft Teams Certified; Zoom Certified
Warranty5 years
Downloads
Manufacturer documents for the Biamp Parlé TTM-X Black Tabletop Conferencing Microphone – 920-00510-10000 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the Biamp Parlé TTM-X work with Microsoft Teams?
Yes. The manufacturer states that the TTM-X is Microsoft Teams Certified and Zoom Certified. The network box is a Microsoft Certified solution, so it suits Teams rooms. The TTM-X is also TAA compliant, which matters for government and institutional tenders.
How is the TTM-X powered and connected?
The network box is powered over PoE, IEEE 802.3at Class 3 at 15.4 W. The microphone and network box connect with one CAT5 cable, which carries audio, control and DSP processing.
What room size suits the TTM-X?
The manufacturer describes full-room Beamtracking performance for conferencing tables. An RJ-45 port adds one TTM-XEX expansion microphone, which increases coverage for larger tables. The four 90° zones provide 360° pickup, so a single unit covers the full table before any expansion is needed.
Does the TTM-X need a separate DSP?
The manufacturer states that the network box includes DSP processing, so no separate DSP is named for this unit. The TTM-X is designed for Biamp Tesira conferencing systems. Audio, control and DSP processing all run over the single CAT5 link to the network box.
