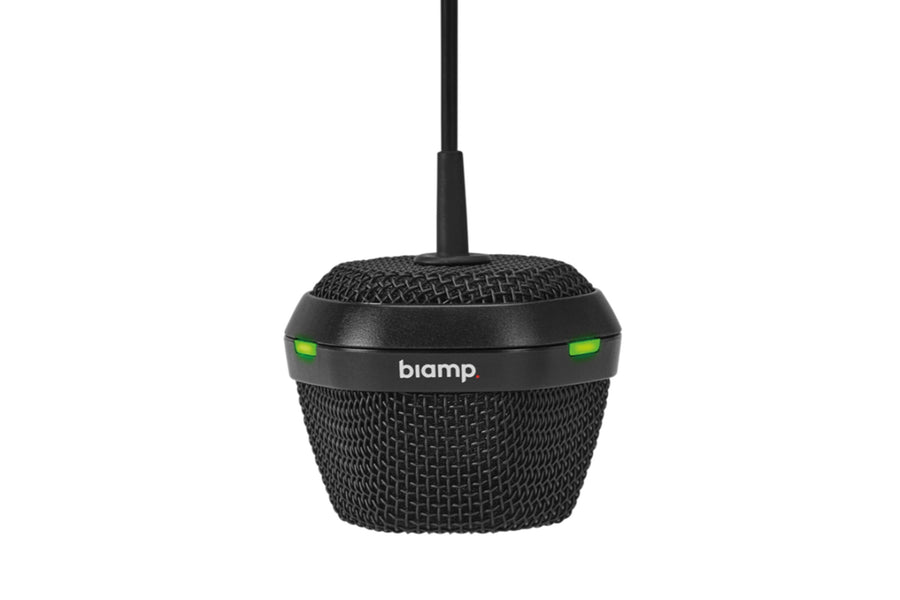

Biamp Parlé TCM-1EX Black Expansion Pendant Microphone – TCM-1EX

The Biamp Parlé TCM-1EX is a black expansion pendant microphone that extends a Parlé TCM-1 or TCM-1A system. It uses Beamtracking across three 120-degree zones to add pickup for larger meeting rooms. Procure.ae supplies the Parlé TCM-1EX across the UAE.

The TCM-1EX uses an 8-element digital array with Beamtracking technology across three 120-degree microphone zones. Sensitivity is above 70 dB (94 dB SPL, 1 kHz), dynamic range is 92 dB A-weighted and frequency response runs from 150 Hz to 16 kHz (±3 dB). The maximum sound pressure level is 106 dB at 0.5% THD. The expansion plenum box has RJ-45 ports for daisy-chaining, and the unit is evaluated to UL 2043 for air-handling spaces.

The TCM-1EX is a companion microphone and must be used with a TCM-1 or TCM-1A. It connects to that plenum box over RJ-45 and can be daisy-chained to one more TCM-1EX, with a maximum of three microphones per chain. It is available in white or black, and an optional tile bridge mounting accessory is available for mounting. Use it when the room needs more pickup points on the same Parlé system.
