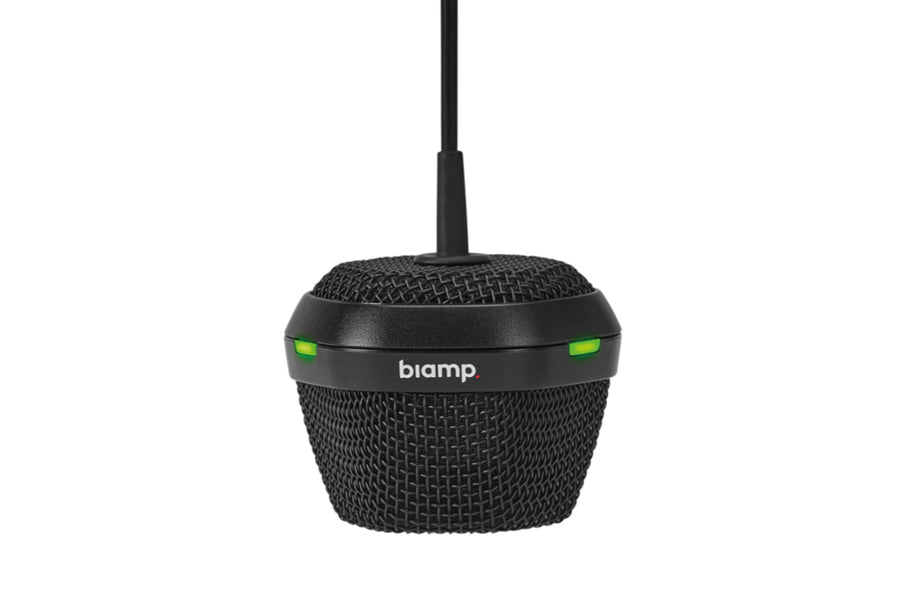

Biamp Parlé TCM-1A black pendant conferencing microphone with PoE+ amplifierBiamp
Meeting Room SolutionsSKU Parlé TCM-1A

Biamp Parlé TCM-1A Black Pendant Conferencing Microphone – TCM-1A

The Biamp Parlé TCM-1A is a black pendant conferencing microphone with a built-in two-channel PoE+ amplifier. Its Beamtracking design covers 360 degrees with three 120-degree zones, and the plenum box delivers up to 40 W per channel in burst mode. Procure.ae supplies the Parlé TCM-1A across the UAE.

The TCM-1A pairs a Beamtracking microphone with three 120-degree zones for 360-degree pickup, and the microphone height can be adjusted by the user. The plenum box includes a two-channel PoE+ amplifier that delivers 4 W continuous per channel, with burst mode up to 40 W (4 Ω) or 30 W (8 Ω) per channel. Software selects between power and channel count, and an internal limiter is included. An LED shows mute status. The unit is evaluated to UL 2043 for air-handling spaces.

The TCM-1A suits meeting rooms that need ceiling microphone pickup and speaker output from one plenum box. The plenum box is powered by PoE (IEEE 802.3at Class 3, 15.4 W) over RJ-45. An additional RJ-45 port daisy-chains one TCM-1EX expansion microphone, with a maximum of three microphones per chain. An optional tile bridge mounting accessory is available. The built-in amplifier is the main feature that sets the TCM-1A apart within the Parlé range.

Type
Pendant Conferencing Microphone wit...
Weight
0.2 kg (microphone); 1.1 kg (plenum...
  • Beamtracking Pickup
  • PoE+ Amplifier
  • Software-Selectable Power
Price
On request · best price
1
Download spec sheet (PDF) Manufacturer datasheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
Beamtracking Pickup
Beamtracking technology tracks and mixes conversations across three 120-degree zones.
02
PoE+ Amplifier
Two channels deliver 4 W continuous each, with burst up to 40 W at 4 Ω.
03
Software-Selectable Power
Choose between power output and channel count in software.
04
Internal Limiter
An internal limiter function is included in the plenum box.
05
Daisy-Chain Expansion
One TCM-1EX expansion microphone can be added, up to three microphones per chain.
06
LED Mute Indicator
An LED gives clear visual confirmation of mute state.
07
Air-Handling Rated
Evaluated to UL 2043 for air-handling spaces; CE, UL and RoHS compliant.
08
5-Year Warranty
Backed by a 5-year warranty and TAA compliant.

Specifications

12 specifications
General
Key FeaturesBeamtracking, 360-degree pickup, PoE+ amplifier, software-selectable power, internal limiter, LED mute indicator, TAA compliant
ModelParlé TCM-1A
TypePendant Conferencing Microphone with PoE+ Amplifier
Audio
Polar PatternBeamformed, three 120-degree zones
Speaker Output2 channels, up to 40 W at 4 Ω or 30 W at 8 Ω per channel
Connectivity
ConnectivityRJ-45 (PoE); daisy-chain up to three microphones
ExpansionOne expansion microphone per chain
PoEIEEE 802.3at Class 3 (15.4 W)
Physical
ColorBlack
Weight0.2 kg (microphone); 1.1 kg (plenum box)
Compliance
CertificationsFCC Part 15B, CE, UL / C-UL, RoHS, UL 2043 (air-handling), TAA
Warranty5 years

Downloads

Manufacturer documents for the Biamp Parlé TCM-1A Black Pendant Conferencing Microphone – TCM-1A — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

Does the Parlé TCM-1A include a speaker amplifier?
Yes. The plenum box includes a two-channel PoE+ amplifier that delivers 4 W continuous per channel. Burst mode supports up to 40 W at 4 Ω or 30 W at 8 Ω per channel, and the power mode can be selected in software.
Does the Parlé TCM-1A need PoE?
Yes. The plenum box is powered by PoE (IEEE 802.3at Class 3, 15.4 W) over RJ-45, and the microphone connects to the plenum box with a 2-pin connector. The plenum box uses two RJ-45 connections: one to the switch and one to an additional TCM-1EX plenum box.
How many microphones can be daisy-chained to a Parlé TCM-1A?
Up to three microphones per daisy chain. An additional RJ-45 port connects one TCM-1EX expansion microphone to the plenum box, so the chain can grow to three microphones in total.
Is the Parlé TCM-1A suitable for air-handling spaces?
Yes. It is evaluated to the requirements of UL 2043 and is suitable for use in air-handling spaces. It is also CE marked, UL listed, RoHS compliant and TAA compliant.
Can I buy the Parlé TCM-1A in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
