BiampMeeting Room SolutionsSKU Parlé TCM-1

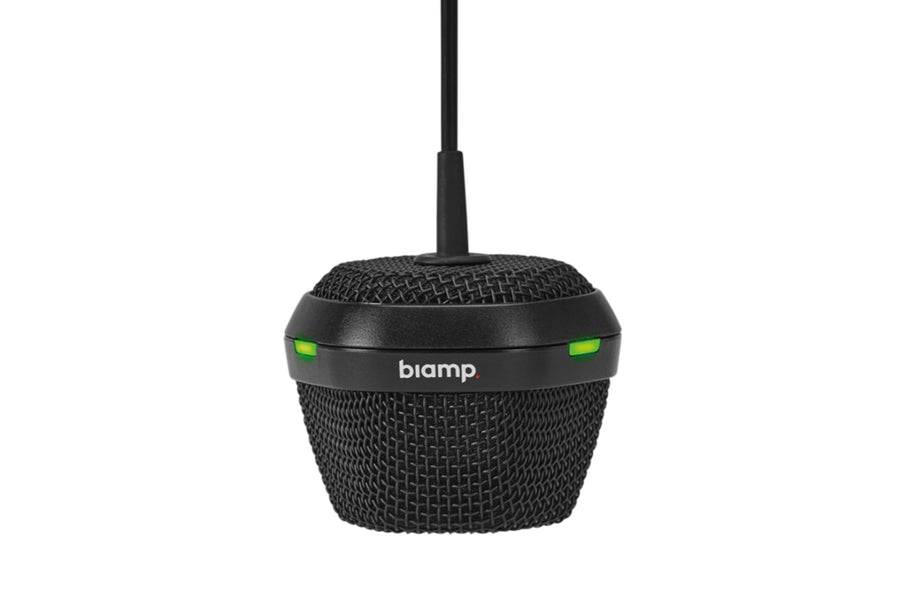

Biamp Parlé TCM-1 Pendant Conferencing Microphone – 920-00485-10000
The Biamp Parlé TCM-1 is a pendant Beamtracking conferencing microphone with a plenum box that contains built-in DSP. It uses three 120-degree zones for 360° pickup and can daisy-chain up to two TCM-1EX expansion microphones. Procure.ae supplies the Biamp Parlé TCM-1 across the UAE.
The TCM-1 uses Beamtracking technology to actively track and mix speech from anywhere in the room, so it follows each conversation without manual setup. Three 120-degree microphone zones provide complete 360° coverage. Its 8-element digital array has a sensitivity above 70 dB and a dynamic range of 92 dB, A-weighted, with a maximum SPL of 106 dB at 0.5% THD. The microphone connects to the plenum box through a 3 m (10 ft) cable, and an LED indicator confirms the mute state.
The TCM-1 is suited to meeting spaces and air-handling spaces, and it is evaluated to UL 2043 standards. The plenum box is powered by PoE (IEEE 802.3at Class 3, 15.4 W) and connects to the network switch over RJ-45, with a maximum distance of 330 feet (100 meters) between devices. It supports daisy-chaining up to two TCM-1EX microphones. The manufacturer lists TAA compliance and a five-year warranty.
Type
Pendant Conferencing Microphone
Weight
Microphone 0.2 kg; plenum box 1.1 kg
- Beamtracking pickup
- Three-zone coverage
- Built-in plenum DSP
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Beamtracking pickup
Actively tracks and mixes speech from anywhere in the room.
02
Three-zone coverage
Three 120-degree microphone zones deliver complete 360° pickup.
03
Built-in plenum DSP
The plenum box includes DSP for Beamtracking signal processing.
04
Daisy-chain expansion
Supports up to two TCM-1EX microphones for flexible room layouts.
05
UL 2043 evaluation
Evaluated to UL 2043 and suitable for air-handling spaces.
06
LED mute indicator
Gives clear visual confirmation of the mute state.
07
Global standards
CE marked, UL listed, RoHS compliant and TAA compliant for government projects.
08
Five-year warranty
Backed by a comprehensive five-year warranty from the manufacturer.
Specifications
18 specificationsGeneral
ApplicationMeeting and conference rooms
Key FeaturesBeamtracking, three 120° zones (360° pickup), plenum box with built-in DSP, daisy-chain up to two TCM-1EX, UL 2043 evaluated, TAA compliant
ModelParlé TCM-1
TypePendant Conferencing Microphone
Audio
Dynamic Range92 dB, A-weighted (THD+N < 10%)
Frequency Response150 Hz to 16 kHz ±3 dB
Max SPL106 dB (at 0.5% THD)
Microphone8-element digital array, beamformed
Sensitivity> 70 dB (94 dB SPL, 1 kHz)
Connectivity
ConnectivityUp to 100 m (330 ft) between devices; 3 m (10 ft) microphone cable
ExpansionDaisy-chain up to two TCM-1EX microphones
PoEIEEE 802.3at Class 3 (PoE+), 15.4 W (plenum box)
PortsRJ-45 × 2 (plenum box); 2-pin 3.5 mm Phoenix connector (microphone)
Physical
MountingPendant; plenum box suitable for air-handling spaces
Operating Temperature0 to 40 °C
WeightMicrophone 0.2 kg; plenum box 1.1 kg
Compliance
CertificationsFCC Part 15B, CE, UL and C-UL listed, RoHS, UL 2043, TAA compliant
Warranty5 years
Downloads
Manufacturer documents for the Biamp Parlé TCM-1 Pendant Conferencing Microphone – 920-00485-10000 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the TCM-1 need a plenum box?
Yes. The TCM-1 includes a plenum box with built-in DSP, which connects to the microphone through a 3 m (10 ft) cable and to the network switch over RJ-45. The plenum box is powered by PoE (IEEE 802.3at Class 3).
How many TCM-1EX microphones can be added?
Up to two. The TCM-1 supports daisy-chaining with up to two TCM-1EX expansion microphones. The manufacturer lists a maximum of 330 feet (100 meters) between devices, and the microphone connects to the plenum box with a 3-meter cable.
Is the TCM-1 suitable for air-handling spaces?
Yes. The TCM-1 is evaluated to the requirements of UL 2043 and is suitable for use in air-handling spaces, according to the manufacturer's certifications. The plenum box carries the built-in DSP and connects over RJ-45. Confirm local fire-code requirements for your ceiling void with your installer.
Does the TCM-1 work with Microsoft Teams?
The manufacturer's specifications do not state Microsoft Teams certification for the TCM-1. Confirm compatibility with your conferencing platform and DSP setup before ordering. Request a quote via WhatsApp or info@procure.ae to confirm integration with your room system.
