BiampMeeting Room SolutionsSKU Parlé DTM-X

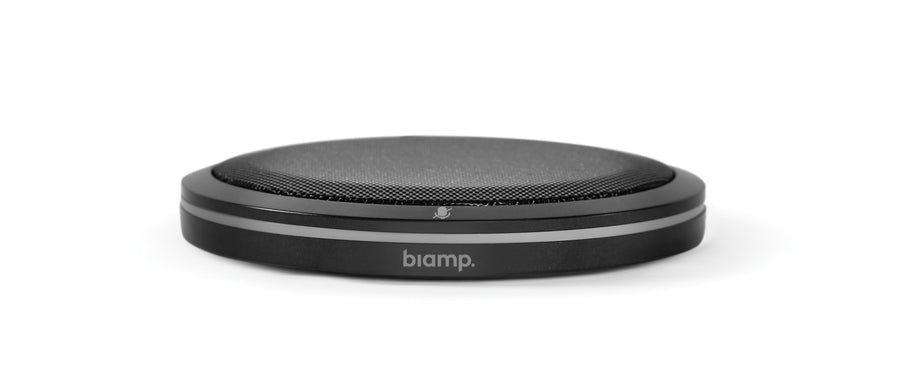

Biamp Parlé DTM-X Tabletop Conferencing Microphone – 920-00029-20000
The Biamp Parlé DTM-X is a compact tabletop Beamtracking conferencing microphone built for Devio UCX systems. It uses a 16-element digital array with four 90° zones for 360° pickup, and it is powered over PoE+ through its network box. Procure.ae supplies the Biamp Parlé DTM-X across the UAE.
The DTM-X uses Beamtracking technology to provide full 360° pickup across four independently controlled zones, and it mixes conversation automatically without lobe aiming or room mapping. Its 16-element digital array has a frequency response of 150 Hz to 16 kHz (±3 dB) and a dynamic range of 90 dB, A-weighted. The 4.7-inch (110 mm) form factor sits unobtrusively on any table surface, and an LED mute indicator shows the state of the microphone during meetings.
The DTM-X is built for Devio UCX systems. A single CAT5 cable to the network box carries audio, control and DSP processing, and an RJ-45 port supports one DTM-XEX expansion microphone for larger tables. The network box is powered by PoE (IEEE 802.3at Class 3, 15.4 W) and operates from 0 to 40 °C. The DTM-X is certified for Microsoft Teams and TAA compliant for government projects, and it carries a five-year warranty.
Type
Tabletop Conferencing Microphone
Weight
Microphone 231 g; network box 310 g
- Beamtracking pickup
- Single CAT5 connection
- Automatic conversation tracking
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Beamtracking pickup
Four independently controlled zones provide full 360° pickup across the table.
02
Single CAT5 connection
One cable to the network box handles audio, control and DSP processing.
03
Automatic conversation tracking
Auto-mixing removes the need for lobe aiming or room mapping.
04
Expansion port
An RJ-45 port supports one DTM-XEX expansion microphone for larger tables.
05
LED mute indicator
Shows the mute status clearly during active meetings.
06
Compact form factor
The 4.7-inch (110 mm) design sits unobtrusively on any table surface.
07
Microsoft Teams certified
Certified for Microsoft Teams for consistent, reliable integration.
08
Five-year warranty
Backed by a five-year warranty and TAA compliant for government projects.
Specifications
18 specificationsGeneral
ApplicationConference tables and Devio UCX meeting rooms
CompatibilityDevio UCX
Key FeaturesBeamtracking, four independent zones (360° pickup), 16-element digital array, LED mute indicator, PoE+ network box, Microsoft Teams certified, TAA compliant
ModelParlé DTM-X
TypeTabletop Conferencing Microphone
Audio
Dynamic Range90 dB, A-weighted (THD+N < 10%)
Frequency Response150 Hz to 16 kHz ±3 dB
Max SPL109 dB (at 0.5% THD)
Microphone16-element digital array, beamformed
Polar PatternBeamformed, four 90° zones
Connectivity
ConnectivitySingle CAT5 cable to network box
ExpansionSupports one DTM-XEX expansion microphone
PoEIEEE 802.3at Class 3 (PoE+), 15.4 W (network box)
Physical
Form FactorCompact tabletop, 110 mm (4.7-inch)
Operating Temperature0 to 40 °C (network box)
WeightMicrophone 231 g; network box 310 g
Compliance
CertificationsFCC Part 15B, CE, UL and C-UL listed, RoHS, TAA compliant
Warranty5 years
Downloads
Manufacturer documents for the Biamp Parlé DTM-X Tabletop Conferencing Microphone – 920-00029-20000 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the Parlé DTM-X compatible with Microsoft Teams?
Yes. The Parlé DTM-X is certified for Microsoft Teams. It is designed for Devio UCX systems, so confirm the room system platform before ordering for a different system. The DTM-X also carries TAA compliance and a five-year warranty, as listed in the manufacturer's specifications.
Does the DTM-X need a separate power supply?
No. The network box is powered by PoE (IEEE 802.3at Class 3, 15.4 W), so it needs a PoE+ switch port. The microphone connects to the network box over a single CAT5 cable.
Can one DTM-X support a larger table?
Yes, with one expansion microphone. An RJ-45 port on the network box supports one DTM-XEX expansion microphone, and each microphone uses one AEC channel. The manufacturer describes this as scalable coverage for larger tables, so one DTM-X system can cover a longer table.
How much table space does the DTM-X need?
The microphone has a compact 4.7-inch (110 mm) form factor and sits on any table surface. The manufacturer's specifications do not state a separate footprint for the network box. Check cable routing to the network box, which connects over a single CAT5 cable, before placing the table unit.
Can I buy the Parlé DTM-X (920-00029-20000) in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
