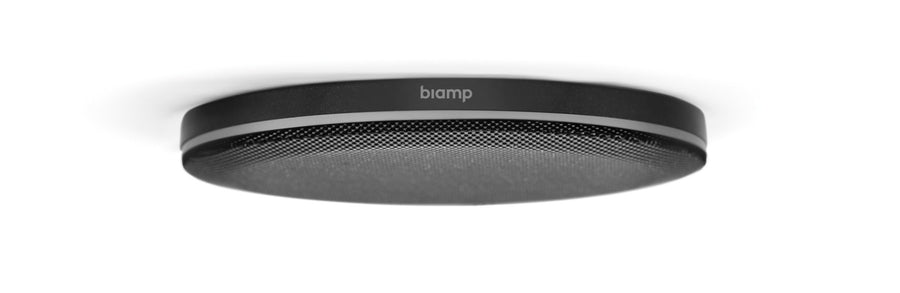

Biamp Parlé DCM-XA Ceiling Conferencing Microphone – 920-00028-20000

The Biamp Parlé DCM-XA is a Beamtracking ceiling conferencing microphone with an integrated two-channel PoE+ amplifier, built for Devio UCX meeting-room systems. It picks up voices across a full 360° using four 90° zones and supports a DCM-XEX expansion microphone. Procure.ae supplies the Biamp Parlé DCM-XA across the UAE.

The DCM-XA uses Beamtracking with four 90° zones to provide 360° voice pickup, and it mixes active talkers automatically without lobe aiming or room mapping. The network box includes onboard DSP and uses only one AEC channel per microphone. Its integrated two-channel PoE+ amplifier delivers up to 40 W @ 4 Ω or 30 W @ 8 Ω per channel, with selectable power modes and built-in limiting. The microphone connects to its network box over a single CAT5 cable, and its 5.90-inch (150 mm) low-profile ceiling design blends into modern meeting spaces.

The DCM-XA is designed for Devio UCX meeting-room systems and is certified for Microsoft Teams. Power comes from PoE+ (IEEE 802.3at Class 3, 15.4 W) on the network box, which has three RJ-45 ports: one to the switch, one to the microphone and one to a DCM-XEX expansion microphone. It is UL 2043 plenum rated and suitable for air-handling spaces. The manufacturer lists a five-year warranty and TAA compliance for government projects.
