BiampMeeting Room SolutionsSKU Parlé DCM-XA

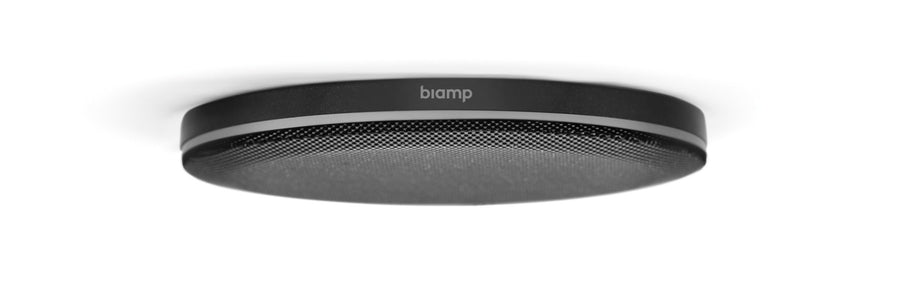

Biamp Parlé Ceiling Microphone with Amplifier, Black – Parlé DCM-XA
The Biamp Parlé DCM-XA is a Beamtracking ceiling microphone with an integrated two-channel PoE+ amplifier for Devio UCX systems. It delivers up to 40 W at 4 Ω per channel to loudspeakers and uses four 90-degree zones for 360-degree pickup. Procure.ae supplies the Biamp Parlé DCM-XA in the UAE.
The DCM-XA uses Beamtracking technology with four 90-degree zones for 360-degree pickup, and it mixes active talkers automatically without lobe aiming or room mapping. The integrated two-channel amplifier delivers up to 40 W @ 4 Ω or 30 W @ 8 Ω per channel, with selectable power modes and built-in limiting for protection. The network box includes onboard DSP and uses one AEC channel per microphone.
The DCM-XA is built for Devio UCX meeting-room systems and is Certified for Microsoft Teams. It is UL 2043 plenum rated, CE marked, UL listed, RoHS compliant and TAA compliant, with a five-year warranty. An additional RJ-45 port supports a DCM-XEX expansion microphone, with up to two microphones per network box.
Type
Ceiling Microphone with Amplifier
Weight
0.68 kg
- Beamtracking pickup
- Integrated amplifier
- Amplifier output
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Beamtracking pickup
Four 90-degree zones for 360-degree coverage without room mapping.
02
Integrated amplifier
Two-channel PoE+ amplifier for loudspeakers.
03
Amplifier output
Up to 40 W @ 4 Ω or 30 W @ 8 Ω per channel.
04
Built-in limiting
Selectable power modes and limiting for protection.
05
Onboard DSP
Network box with DSP uses one AEC channel per microphone.
06
DCM-XEX expansion
Extra RJ-45 supports a DCM-XEX, up to two microphones per box.
07
Microsoft Teams Certified
Certified for dependable compatibility with Teams.
08
Plenum rated
UL 2043 plenum rated, CE marked, UL listed, RoHS and TAA compliant.
Specifications
15 specificationsGeneral
CompatibilityDevio UCX, Microsoft Teams certified
Key FeaturesBeamtracking, four 90-degree zones, two-channel PoE+ amplifier, 40 W @ 4 Ω per channel, DCM-XEX expansion, Microsoft Teams certified, UL 2043 plenum rated
ModelParlé DCM-XA
TypeCeiling Microphone with Amplifier
Audio
Coverage PatternFour 90-degree zones (360 degrees)
Speaker OutputTwo channels, 40 W @ 4 Ω or 30 W @ 8 Ω per channel
Connectivity
ConnectivityThree RJ-45: switch, microphone, DCM-XEX expansion
PoEIEEE 802.3at Class 3, 15.4 W
Power
Power SourcePoE (IEEE 802.3at Class 3, 15.4 W)
Physical
ColorBlack
MountingCeiling mount, 150 mm low-profile
Operating Temperature0 to 40 °C
Weight0.68 kg
Compliance
CertificationsUL 2043 plenum rated, CE, UL, RoHS, TAA compliant, Microsoft Teams certified
Warranty5 years
Downloads
Manufacturer documents for the Biamp Parlé Ceiling Microphone with Amplifier, Black – Parlé DCM-XA — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Can the DCM-XA drive loudspeakers directly?
Yes. The integrated two-channel PoE+ amplifier powers loudspeakers, with up to 40 W @ 4 Ω or 30 W @ 8 Ω per channel, selectable power modes and built-in limiting. Built-in limiting is included for protection, and the selectable power modes let the installer choose the operating mode.
Does the DCM-XA work with Devio UCX?
Yes. The DCM-XA is designed specifically for Devio UCX meeting room systems and includes a network box with onboard DSP. The network box uses one AEC channel per microphone, and the DCM-XA is also Microsoft Teams Certified.
Is the DCM-XA plenum rated?
Yes. It is UL 2043 plenum rated and is also CE marked, UL listed and RoHS compliant. It is also TAA compliant, and its certifications include FCC Part 15B. It is also backed by a five-year warranty.
Can a DCM-XA support a second microphone?
Yes. An additional RJ-45 port supports a DCM-XEX expansion microphone, with up to two microphones per network box. Each microphone uses one AEC channel in the network box. The DCM-XEX connects through the network box's additional RJ-45 port.
Can I buy the Parlé DCM-XA in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
