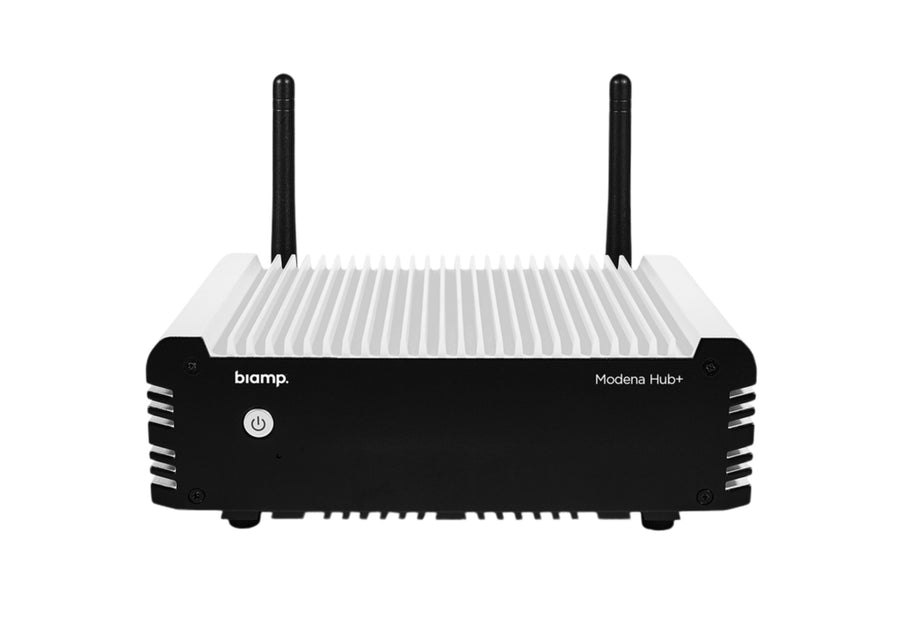

Biamp Modena Hub+ Wireless Presentation System – 920-01737-00001
The Biamp Modena Hub+ (920-01737-00001) is a wireless presentation hub with an integrated Wi-Fi access point. It shares presentations up to 1080p at 30 fps, supports Auditorium mode for up to 150 users and is replaced by the Modena MAX Connect. Procure.ae can confirm current availability of this model in the UAE.
The Modena Hub+ supports wireless presentation at up to HD 1080p at 30 fps and a wireless USB feed at up to HD 720p at 30 fps. Its integrated Wi-Fi access point uses IEEE 802.11 a/b/g/n/ac on 2.4 and 5 GHz antennas with WPA2-PSK authentication. Personal devices can send and receive presentations directly to the screen of participants’ laptops, tablets or mobile devices. Each connected client needs a minimum of 4 Mbps average and 15 Mbps peak bandwidth.
The hub has a wired Ethernet RJ-45 port at 1000 Mbit/s and an HDMI media port. A display can receive content from a computer running the web or software client, from an Android dongle, or by running the Android TV app on a smart TV. IT administrators can configure all installed units through a web management interface. The Modena Hub+ is replaced by the Modena MAX Connect.
Type
Wireless Presentation Hub
Weight
1.1 kg
- Integrated Wi-Fi access point
- Wireless presentation
- Wireless USB feed
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Integrated Wi-Fi access point
Built-in access point with 2.4 and 5 GHz antennas and WPA2-PSK authentication.
02
Wireless presentation
Shares presentations up to HD 1080p at 30 fps.
03
Wireless USB feed
Delivers a wireless USB feed at up to HD 720p at 30 fps.
04
Auditorium mode
Supports up to 150 users for large teaching spaces.
05
Gigabit Ethernet
Wired RJ-45 port at 1000 Mbit/s.
06
Android and smart TV support
Display receives content from an Android dongle or the Android TV app on a smart TV.
07
Web management
Web interface for configuring all units in an enterprise.
08
5-year warranty
Covered by a 5-year warranty.
Specifications
11 specificationsGeneral
Key FeaturesIntegrated Wi-Fi access point, Wireless presentation up to 1080p at 30 fps, Wireless USB feed up to 720p at 30 fps, Auditorium mode for up to 150 users, Web management, 5-year warranty
ModelModena Hub+
TypeWireless Presentation Hub
Performance
Bandwidth4 Mbps average / 15 Mbps peak per client
Storage Conditions-20 to 60 °C
Connectivity
PortsHDMI media port, Ethernet RJ-45 (1000 Mbit/s), USB 2.0/3.0
Wi-Fi802.11 a/b/g/n/ac, 2.4 and 5 GHz (WPA2-PSK)
Power
Power Source12 V DC external adaptor
Physical
Operating Temperature0 to 40 °C
Weight1.1 kg
Compliance
Warranty5 years
Downloads
Manufacturer documents for the Biamp Modena Hub+ Wireless Presentation System – 920-01737-00001 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the Modena Hub+ have built-in Wi-Fi?
Yes. It has an integrated Wi-Fi access point using IEEE 802.11 a/b/g/n/ac on 2.4 and 5 GHz antennas with WPA2-PSK authentication. It also has a wired Ethernet RJ-45 port rated at 1000 Mbit/s.
Does it support wireless presentation from laptops and phones?
Yes. Personal devices can send and receive presentations directly to the screen of participants’ laptops, tablets or mobile devices, with wireless presentation up to HD 1080p at 30 fps. A computer running the web or software client can also connect.
Does it work for large teaching spaces?
Yes. Auditorium mode can be configured for up to 150 users, so everyone can follow shared content in large teaching spaces. The wireless USB feed runs at up to HD 720p at 30 fps.
How much network bandwidth does each client need?
Each connected client needs a minimum of 4 Mbps average and 15 Mbps peak bandwidth, upstream when presenting and downstream when receiving. The videoconference host needs an additional 4 Mbps average and 15 Mbps peak when using the Wireless USB feature.
