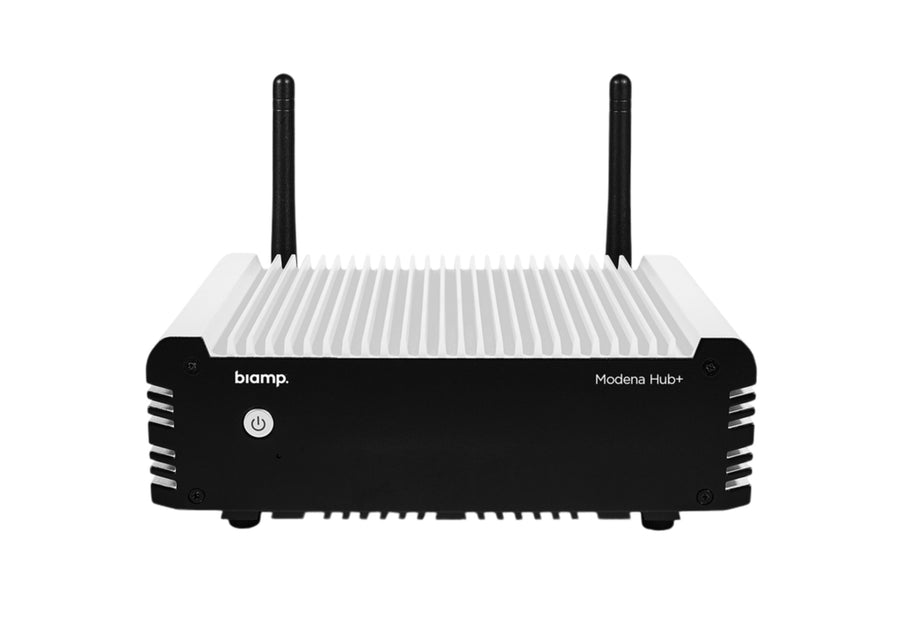

Biamp Modena Hub+ Wireless Presentation System – 920-01737-00001

Biamp Modena Hub+ Wireless Presentation System – 920-01737-00001

The Biamp Modena Hub+ (920-01737-00001) is a wireless presentation hub with an integrated Wi-Fi access point. It shares presentations up to 1080p at 30 fps, supports Auditorium mode for up to 150 users and is replaced by the Modena MAX Connect. Procure.ae can confirm current availability of this model in the UAE.

The Modena Hub+ supports wireless presentation at up to HD 1080p at 30 fps and a wireless USB feed at up to HD 720p at 30 fps. Its integrated Wi-Fi access point uses IEEE 802.11 a/b/g/n/ac on 2.4 and 5 GHz antennas with WPA2-PSK authentication. Personal devices can send and receive presentations directly to the screen of participants’ laptops, tablets or mobile devices. Each connected client needs a minimum of 4 Mbps average and 15 Mbps peak bandwidth.

The hub has a wired Ethernet RJ-45 port at 1000 Mbit/s and an HDMI media port. A display can receive content from a computer running the web or software client, from an Android dongle, or by running the Android TV app on a smart TV. IT administrators can configure all installed units through a web management interface. The Modena Hub+ is replaced by the Modena MAX Connect.

Type
Wireless Presentation Hub
Weight
1.1 kg

Key features

01
Integrated Wi-Fi access point
Built-in access point with 2.4 and 5 GHz antennas and WPA2-PSK authentication.
02
Wireless presentation
Shares presentations up to HD 1080p at 30 fps.
03
Wireless USB feed
Delivers a wireless USB feed at up to HD 720p at 30 fps.
04
Auditorium mode
Supports up to 150 users for large teaching spaces.
05
Gigabit Ethernet
Wired RJ-45 port at 1000 Mbit/s.
06
Android and smart TV support
Display receives content from an Android dongle or the Android TV app on a smart TV.
07
Web management
Web interface for configuring all units in an enterprise.
08
5-year warranty
Covered by a 5-year warranty.

Specifications

General
Key FeaturesIntegrated Wi-Fi access point, Wireless presentation up to 1080p at 30 fps, Wireless USB feed up to 720p at 30 fps, Auditorium mode for up to 150 users, Web management, 5-year warranty
ModelModena Hub+
TypeWireless Presentation Hub
Performance
Bandwidth4 Mbps average / 15 Mbps peak per client
Storage Conditions-20 to 60 °C
Connectivity
PortsHDMI media port, Ethernet RJ-45 (1000 Mbit/s), USB 2.0/3.0
Wi-Fi802.11 a/b/g/n/ac, 2.4 and 5 GHz (WPA2-PSK)
Power
Power Source12 V DC external adaptor
Physical
Operating Temperature0 to 40 °C
Weight1.1 kg
Compliance
Warranty5 years
