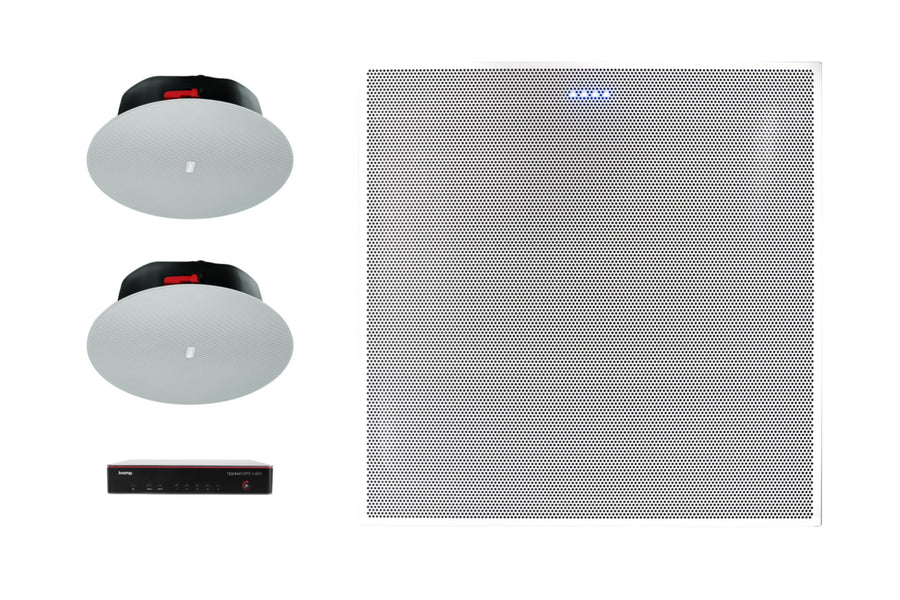

Biamp MRB-M-X800-BMA360DI-CIC6 medium room conferencing bundle with BMA 360D-I ceiling microphone arrayBiamp
Meeting Room SolutionsSKU MRB-M-X800-BMA360DI-CIC6

Biamp Medium Room Conferencing Bundle with BMA 360D-I – MRB-M-X800-BMA360DI-CIC6

The Biamp MRB-M-X800-BMA360DI-CIC6 is a video conferencing bundle for medium meeting rooms. It combines a TesiraFORTÉ X 800 processor, a BMA 360D-I ceiling microphone array with up to 12 configurable beams, and two Desono C-IC6 ceiling loudspeakers. The array is designed for 600 mm ceiling tiles. Procure.ae supplies it across the UAE.

The TesiraFORTÉ X 800 provides eight channels of acoustic echo cancellation, along with signal routing, mixing, equalisation and dynamics processing. The BMA 360D-I uses ultra-wideband, frequency-invariant beamforming, so voice pickup stays consistent across the room wherever participants sit. Up to 12 configurable beams tailor coverage to the room, and the two Desono C-IC6 ceiling loudspeakers deliver speech-optimised audio throughout the room.

The bundle suits medium meeting rooms with 600 mm by 600 mm ceiling tiles. The main difference from the MRB-M-X800-BMA360D-CIC6 is ceiling tile size, since that model uses the BMA 360D for 24-inch by 24-inch tiles. EasyConnect POE-90W provides power over Ethernet, and a complete plenum-rated CAT5e cable kit is included with the bundle. The manufacturer's specifications do not state platform certifications for this bundle, so confirm integration with your conferencing platform before ordering.

Type
Video Conferencing Bundle
  • Complete room bundle
  • Ultra-wideband beamforming
  • Configurable beam coverage
Price
On request · best price
1
Download spec sheet (PDF) Manufacturer datasheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
Complete room bundle
TesiraFORTÉ X 800 processor, BMA 360D-I ceiling microphone array, two Desono C-IC6 ceiling loudspeakers and cabling in one kit.
02
Ultra-wideband beamforming
Frequency-invariant beamforming keeps voice pickup consistent wherever participants sit.
03
Configurable beam coverage
Up to 12 configurable beams tailor audio coverage to the room.
04
600 mm ceiling fit
Designed for 600 mm x 600 mm ceiling tiles, so the array fits the existing ceiling layout.
05
Eight-channel echo cancellation
TesiraFORTÉ X 800 provides eight channels of acoustic echo cancellation.
06
DSP processing
Signal routing, mixing, equalisation and dynamics processing on the TesiraFORTÉ X 800.
07
Ceiling loudspeakers
Two Desono C-IC6 ceiling loudspeakers deliver speech-optimised audio.
08
Power and cabling included
EasyConnect POE-90W and a plenum-rated CAT5e cable kit simplify installation.

Specifications

12 specifications
General
ApplicationMedium meeting rooms
Key FeaturesUltra-wideband beamforming, 12 configurable beams, eight-channel echo cancellation, 600 mm ceiling tile fit, PoE power, plenum-rated CAT5e cabling, two ceiling loudspeakers
ModelMRB-M-X800-BMA360DI-CIC6
TypeVideo Conferencing Bundle
What's in the BoxTesiraFORTÉ X 800 processor, BMA 360D-I ceiling microphone array, two Desono C-IC6 ceiling loudspeakers, EasyConnect POE-90W, plenum-rated CAT5e cable kit
Performance
ProcessorTesiraFORTÉ X 800
Audio
Coverage PatternUp to 12 configurable beams
MicrophoneBMA 360D-I, 600 mm ultra-wideband beamforming array
Microphone TypeCeiling microphone array
Speaker TypeTwo Desono C-IC6 ceiling loudspeakers
Connectivity
PoE90 W PoE (EasyConnect POE-90W)
Physical
MountingCeiling tile, 600 mm x 600 mm

Downloads

Manufacturer documents for the Biamp Medium Room Conferencing Bundle with BMA 360D-I – MRB-M-X800-BMA360DI-CIC6 — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

What is the Biamp MRB-M-X800-BMA360DI-CIC6?
It is a medium meeting room bundle built around a TesiraFORTÉ X 800 processor, a BMA 360D-I ceiling microphone array and two Desono C-IC6 ceiling loudspeakers. The manufacturer also lists it as 930-00027. Power and a plenum-rated CAT5e cable kit are included.
Does the BMA 360D-I fit a 600 mm ceiling grid?
Yes. The BMA 360D-I is designed for 600 mm by 600 mm ceiling tiles, so it installs into the existing ceiling layout. The 24-inch version is the MRB-M-X800-BMA360D-CIC6 bundle. Confirm your ceiling grid dimensions before ordering.
What room size is it for?
It is designed for medium meeting rooms. The manufacturer's specifications do not state a maximum participant count or room area for this bundle, so confirm the room size with Procure.ae before ordering.
Is power included with the bundle?
Yes. EasyConnect POE-90W provides power over Ethernet, and a complete plenum-rated CAT5e cable kit is included with the bundle, so the kit is supplied ready for installation. Power and cabling are both part of the bundle as listed by the manufacturer.
How does the processor handle echo?
The TesiraFORTÉ X 800 provides eight channels of acoustic echo cancellation, along with signal routing, mixing, equalisation and dynamics processing in one unit. Two Desono C-IC6 ceiling loudspeakers handle the room's audio output.
Can I buy the MRB-M-X800-BMA360DI-CIC6 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
