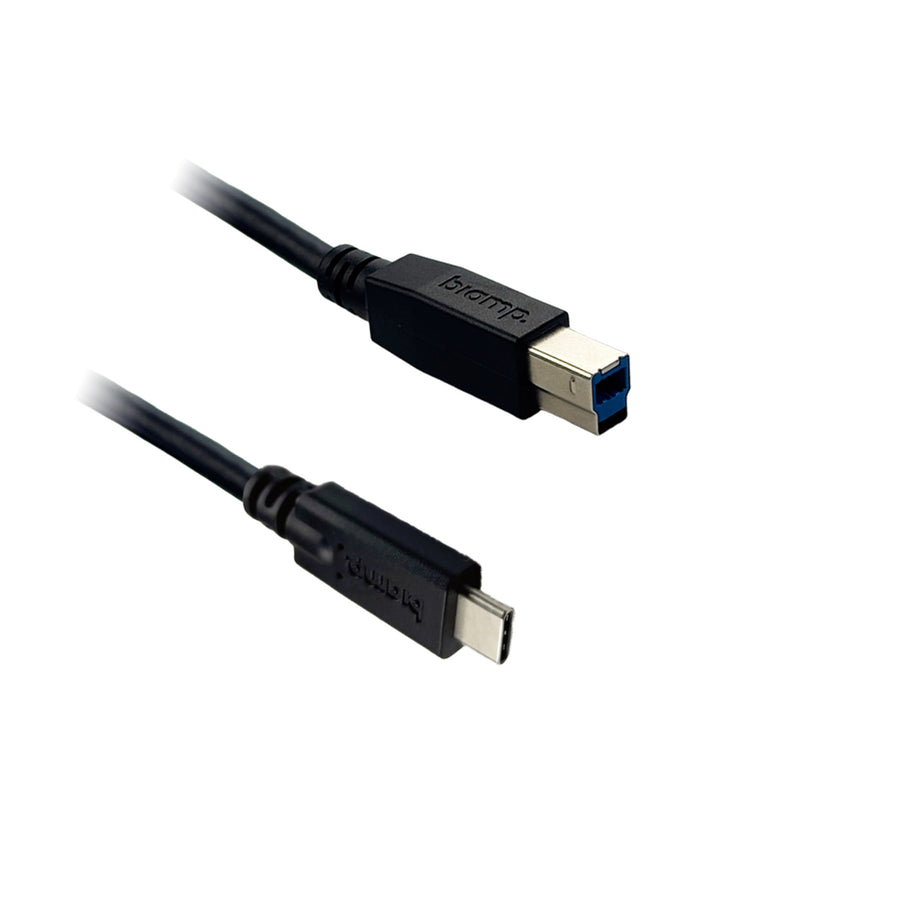

Biamp EasyConnect USB 3.2 Type-B to Type-C Cable 5 m – EasyConnect USB3-15-BC

Name: Biamp EasyConnect USB 3.2 Type-B to Type-C Cable 5 m – EasyConnect USB3-15-BC
Brand: Biamp
SKU: EasyConnect USB3-15-BC
Availability: InStock

The Biamp EasyConnect USB3-15-BC is a 5 m (15-foot) passive USB 3.2 Gen 1 cable with a Type-B connector at one end and a Type-C connector at the other. It transfers data at up to 5 Gbps and has double-shielded tinned copper conductors with gold-plated contacts. Procure.ae supplies it across the UAE for AV and conferencing installations.

The cable connects a Type-B port to a Type-C port for USB 3.2 Gen 1 data at up to 5 Gbps. The manufacturer lists it as a passive signal cable. The jacket is PVC, the conductors are tinned copper in 26 and 28 AWG, and the shielding is double, using foil and braid. The manufacturer also lists a UL-CMX safety rating and RoHS and REACH compliance for the product.

Type

USB 3.2 Gen 1 Type-B to Type-C Cable

USB 3.2 Gen 1 data
Type-B to Type-C
Passive signal

Price

On request · best price

WhatsApp Call

Download spec sheet (PDF) Manufacturer datasheet (PDF)

Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond

Manufacturer warrantyBacked by the brand

InstallationArranged on request

Key features

USB 3.2 Gen 1 data

transfers at up to 5 Gbps between Type-B and Type-C ports.

Type-B to Type-C

connects a Type-B port to a Type-C port over a 5 m (15-foot) run.

Passive signal

listed by the manufacturer as a passive signal type cable.

Shielded construction

double-shielded (foil and braid) with tinned copper conductors and gold-plated contacts.

Safety and compliance

UL-CMX safety rating, with RoHS and REACH compliance.

Three-year warranty

the manufacturer lists a 3-year warranty.

Specifications

13 specifications

General

Key FeaturesPassive signal, Gold-plated contacts, 26 + 28 AWG wire gauge, Type-B to Type-C, USB 3.2 Gen 1 at 5 Gbps

ModelEasyConnect USB3-15-BC

TypeUSB 3.2 Gen 1 Type-B to Type-C Cable

Connectivity

Cable StandardUSB 3.2 Gen 1

ConductorTinned copper

Connector TypeUSB Type-B to USB Type-C

Data Rate5 Gbps

Jacket MaterialPVC

ShieldingDouble shielded (foil + braid)

Physical

Length5 m (15 ft)

Compliance

CertificationsRoHS, REACH

Safety RatingUL-CMX

Warranty3 years

Downloads

Manufacturer documents for the Biamp EasyConnect USB 3.2 Type-B to Type-C Cable 5 m – EasyConnect USB3-15-BC — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

What is the maximum data rate of the EasyConnect USB3-15-BC?

The cable supports USB 3.2 Gen 1 at up to 5 Gbps, the speed formerly known as USB 3.0. It is a passive cable 5 m (15 feet) long, with a Type-B connector at one end and a Type-C connector at the other.

Does this cable connect a Type-B port to a Type-C port?

Yes. It is a Type-B to Type-C cable, so one end plugs into a Type-B port and the other into a Type-C port. Confirm the port types on both devices before installation.

What length is this model, and how does it differ from the 10 m and 15 m models?

This model is 5 m (15 feet) long and is listed as a passive cable. The 10 m and 15 m Type-B to Type-C models in the same EasyConnect range are listed as active cables with multi-mode optical fibre conductors.
