BiampMeeting Room SolutionsSKU EasyConnect USB3-10-CC

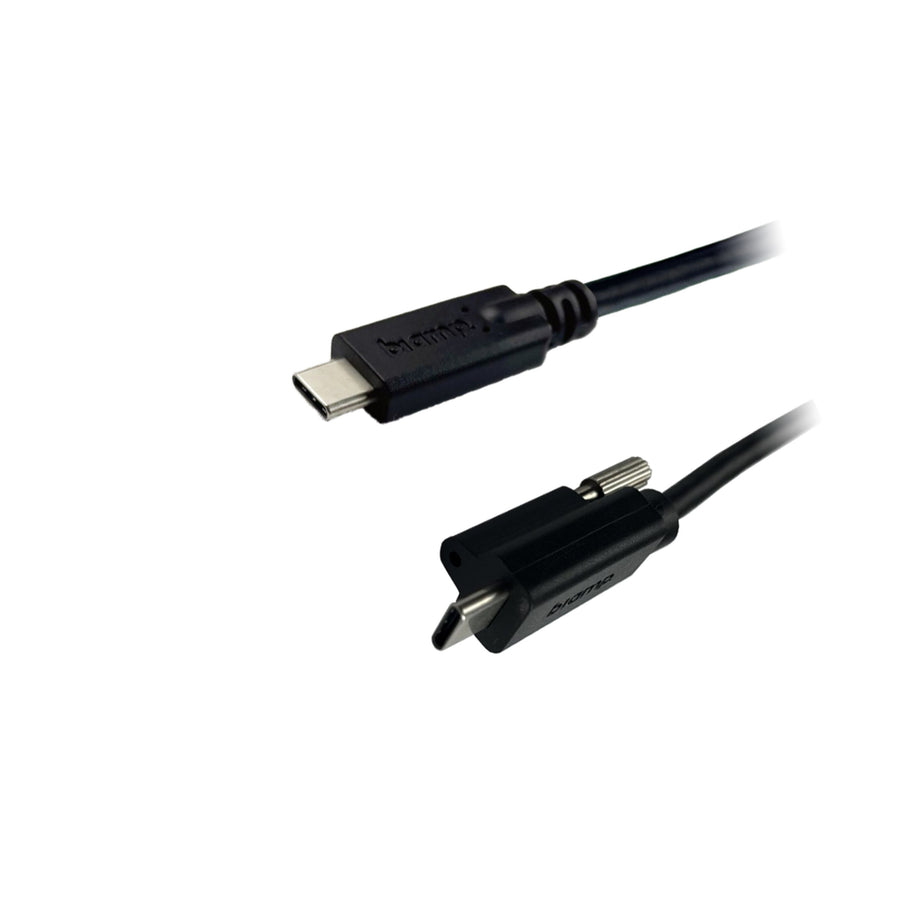

Biamp EasyConnect USB 3.2 Gen 1 Type-C Cable 3 m – EasyConnect USB3-10-CC
The Biamp EasyConnect USB3-10-CC is a 3 m (10-foot) USB 3.2 Gen 1 cable with Type-C connectors at both ends. It transfers data at up to 5 Gbps, carries DisplayPort 1.4 and HDMI through Alt Mode up to 3840 x 2160 at 60 Hz, and supports up to 45 W power delivery. Procure.ae supplies it across the UAE.
The cable links a Type-C port to a Type-C port for USB 3.2 Gen 1 data, with USB 2.0 and 1.1 compatibility. The manufacturer lists DisplayPort, HDMI and audio Alt Mode support, 4:4:4 chroma sampling and 8-bit colour depth at up to 3840 x 2160 pixels at 60 Hz. Power delivery is rated at up to 45 W, depending on the Type-C port. The cable is passive, with double-shielded construction, tinned copper conductors and gold-plated contacts.
Resolution
3840 x 2160 (4K UHD) at 60 Hz
Type
USB 3.2 Gen 1 Type-C Cable
- High-speed data
- Video over Type-C
- Power delivery
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
High-speed data
USB 3.2 Gen 1 transfers at up to 5 Gbps, with USB 2.0 and 1.1 compatibility.
02
Video over Type-C
DisplayPort 1.4 and HDMI through Alt Mode, up to 3840 x 2160 (4K UHD) at 60 Hz.
03
Power delivery
up to 45 W depending on the Type-C port, at a 5-20 V operating voltage.
04
Shielded construction
double-shielded (foil and braid) with tinned copper conductors.
05
Safety and compliance
VW-1 safety rating, with RoHS and REACH compliance.
06
Three-year warranty
the manufacturer lists a 3-year warranty.
Specifications
18 specificationsGeneral
CompatibilityWindows 8+, macOS 10.9+, Linux 3.x+ (USB 3.0 support required)
Key FeaturesPassive signal, DisplayPort 1.4 and HDMI via Alt Mode, 4:4:4 chroma sampling, 8-bit colour depth, Gold-plated contacts, Billboard device reporting
ModelEasyConnect USB3-10-CC
TypeUSB 3.2 Gen 1 Type-C Cable
Display
Resolution3840 x 2160 (4K UHD) at 60 Hz
Performance
Storage Conditions-20 to 70 °C
Audio
Power OutputUp to 45 W (port dependent)
Connectivity
Cable StandardUSB 3.2 Gen 1 (USB 2.0 and 1.1 compatible)
ConductorTinned copper
Connector TypeUSB Type-C to USB Type-C (male-male)
Data Rate5 Gbps
Jacket MaterialTPE
ShieldingDouble shielded (foil + braid)
Physical
Length3 m (10 ft)
Operating Temperature0 to 50 °C
Compliance
CertificationsRoHS, REACH
Safety RatingVW-1
Warranty3 years
Downloads
Manufacturer documents for the Biamp EasyConnect USB 3.2 Gen 1 Type-C Cable 3 m – EasyConnect USB3-10-CC — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What USB standard does the EasyConnect USB3-10-CC support?
It supports USB 3.2 Gen 1, formerly called USB 3.0, at up to 5 Gbps. It is compatible with USB 2.0 and 1.1 devices, and the manufacturer lists USB 3.0 support as required for the operating system. The cable is 3 m (10 feet) long with Type-C connectors at both ends.
Does the cable carry video as well as data?
Yes. The manufacturer lists DisplayPort 1.4 and HDMI through DisplayPort Alt Mode, with audio also covered by Alt Mode support. The maximum resolution is 3840 x 2160 pixels at 60 Hz, with 4:4:4 chroma sampling and 8-bit colour depth per colour.
Can the cable deliver power as well as data?
Yes, up to 45 W, although the amount depends on the Type-C port. The operating voltage range is 5 to 20 V. Confirm the connected devices and ports before relying on the cable for charging, because power delivery is port dependent.
