BiampMeeting Room SolutionsSKU EasyConnect USB3-6-AB

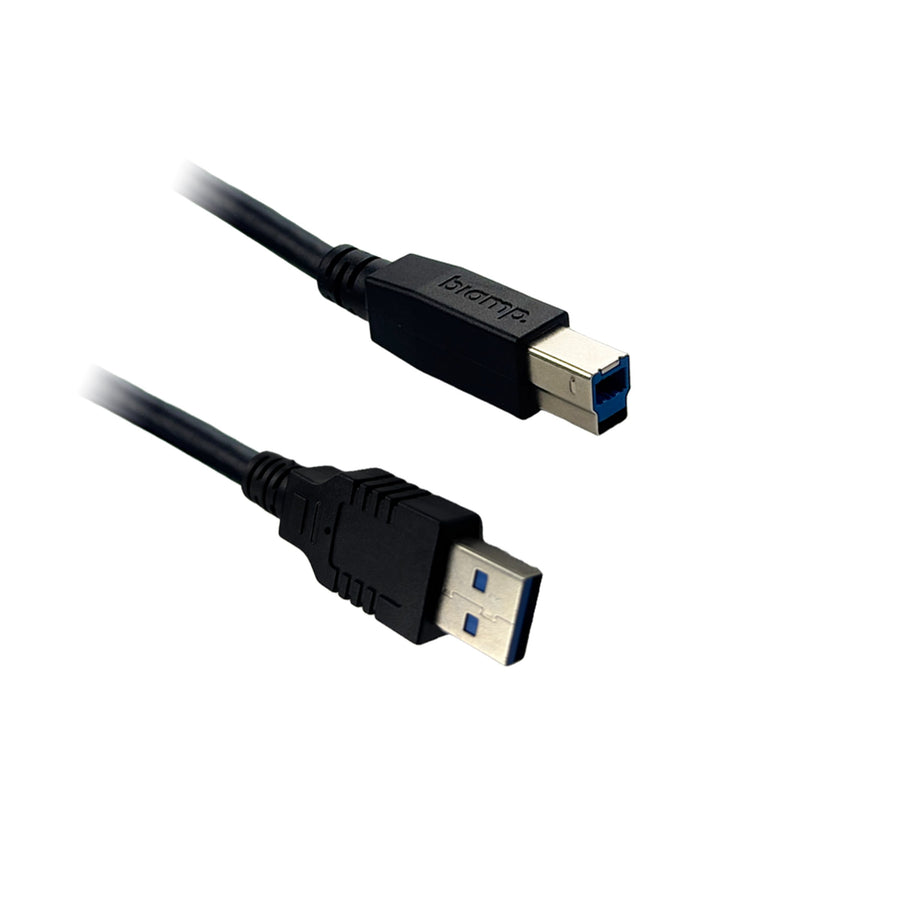

Biamp EasyConnect USB 3.2 Gen 1 Type-A to Type-B Cable 2 m – EasyConnect USB3-6-AB
The Biamp EasyConnect USB3-6-AB is a 2 m (6-foot) passive USB 3.2 Gen 1 cable with a Type-A connector at one end and a Type-B connector at the other. It transfers data at up to 5 Gbps and uses double-shielded tinned copper conductors with gold-plated contacts. Procure.ae supplies it across the UAE for AV and conferencing setups.
The cable connects a Type-A port to a Type-B port for USB 3.2 Gen 1 data at up to 5 Gbps. The manufacturer lists it as a passive signal cable with a 28 AWG wire gauge. The jacket is PVC, the shielding is double, using foil and braid, and the manufacturer lists a UL-CMX safety rating with RoHS and REACH compliance. The 2 m length suits connections between devices that sit a short distance apart.
Type
USB 3.2 Gen 1 Type-A to Type-B Cable
- USB 3.2 Gen 1 data
- Two-metre length
- Passive signal
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
USB 3.2 Gen 1 data
transfers at up to 5 Gbps between Type-A and Type-B ports.
02
Two-metre length
a 2 m (6-foot) cable for connections over a short distance.
03
Passive signal
listed by the manufacturer as a passive signal type cable.
04
Shielded construction
double-shielded (foil and braid) with tinned copper conductors and gold-plated contacts.
05
Safety and compliance
UL-CMX safety rating, with RoHS and REACH compliance.
06
Three-year warranty
the manufacturer lists a 3-year warranty.
Specifications
13 specificationsGeneral
Key FeaturesPassive signal, Gold-plated contacts, 28 AWG wire gauge, Type-A to Type-B, 5 Gbps data transfer
ModelEasyConnect USB3-6-AB
TypeUSB 3.2 Gen 1 Type-A to Type-B Cable
Connectivity
Cable StandardUSB 3.2 Gen 1
ConductorTinned copper
Connector TypeUSB Type-A to USB Type-B
Data Rate5 Gbps
Jacket MaterialPVC
ShieldingDouble shielded (foil + braid)
Physical
Length2 m (6 ft)
Compliance
CertificationsRoHS, REACH
Safety RatingUL-CMX
Warranty3 years
Downloads
Manufacturer documents for the Biamp EasyConnect USB 3.2 Gen 1 Type-A to Type-B Cable 2 m – EasyConnect USB3-6-AB — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the maximum data rate of the EasyConnect USB3-6-AB?
The cable supports USB 3.2 Gen 1 at up to 5 Gbps, the speed formerly known as USB 3.0. It is a passive 2 m (6-foot) cable with a Type-A connector at one end and a Type-B connector at the other.
Does this cable connect a Type-A port to a Type-B port?
Yes. It is a Type-A to Type-B cable, so one end plugs into a Type-A port and the other into a Type-B port. Confirm the port types on both devices before installation.
How does this cable compare with the 1 m model?
The EasyConnect USB3-3-AB is the 1 m (3-foot) Type-A to Type-B model in the same family. This 2 m cable uses the same listed specifications, including a passive signal type and a 5 Gbps data rate. Choose the length that matches the distance between the two ports.
Can I buy the EasyConnect USB3-6-AB in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
