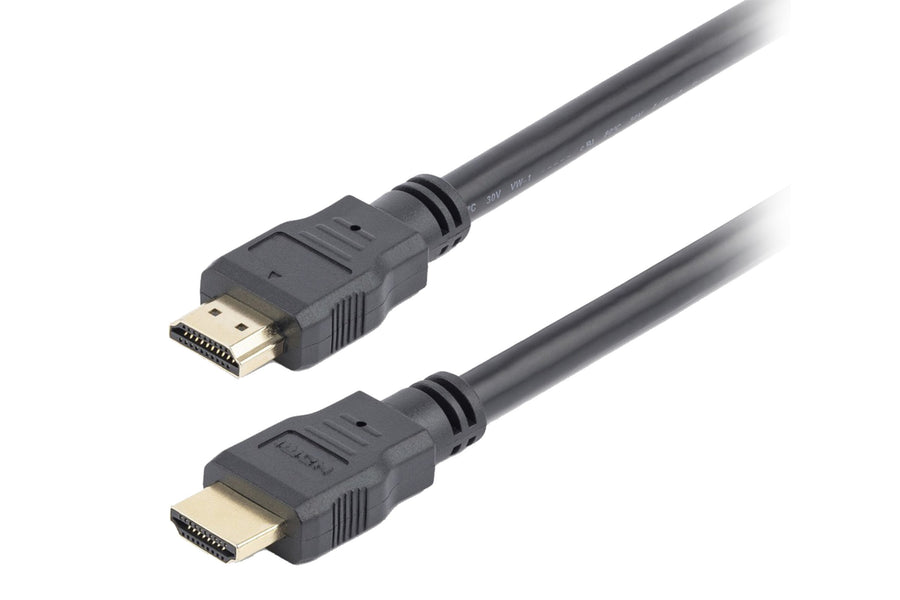

Biamp EasyConnect HDMI4k-50 50-foot active 4K HDMI 2.0 cableBiamp
Meeting Room SolutionsSKU EasyConnect HDMI4k-50

Biamp EasyConnect 50-foot 4K HDMI 2.0 Active Cable – HDMI4k-50

The Biamp EasyConnect HDMI4k-50 is a 15 m (50 ft) active HDMI 2.0 cable for 4K UHD video at 60 Hz, with HDR10 and HLG support and an 18 Gbps maximum data rate. Its conductors combine tinned copper with multi-mode optical fibres, and it carries a VW-1 safety rating. Procure.ae supplies the HDMI4k-50 across the UAE.

The HDMI4k-50 supports 4K UHD at 3840 x 2160 and 60 Hz, with 4:4:4 chroma sampling at 4K/30 Hz and 8 bit colour per channel. HDR10 and HLG high dynamic range are supported at an 18 Gbps maximum data rate. Audio can be up to 32 channels of PCM, with Dolby (including Atmos) and DTS (including DTS:X) support. HDCP 2.2, CEC and EDID are also supported. The cable has a 4.5 mm outer diameter and a 45 mm minimum static bend radius. Manufacturer code: 910-00153.

Use the HDMI4k-50 for runs of up to 15 m, such as from a presenter position to a display across a large meeting room, lecture hall or auditorium. Its active design differs from the passive 1 m to 5 m cables, which use copper conductors. The manufacturer lists a 2-year warranty for this model, compared with 3 years for the other HDMI4k cables. Procure.ae, an authorised Biamp reseller, supplies it across the UAE, with installation available.

Resolution
3840 x 2160 (4K UHD)
Type
Active HDMI Cable
  • 4K UHD at 60 Hz
  • Active signal
  • HDR10 and HLG
Price
On request · best price
1
Download spec sheet (PDF) Manufacturer datasheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
4K UHD at 60 Hz
3840 x 2160 resolution at 60 Hz with full bandwidth.
02
Active signal
Active design with multi-mode optical fibre conductors for 15 m runs.
03
HDR10 and HLG
High dynamic range support for compatible sources and displays.
04
Dolby and DTS audio
Up to 32-channel PCM with Dolby Atmos and DTS:X support.
05
Safety rating
VW-1 rated, with RoHS, CE and FCC compliance.
06
Premium Certified
Gold-plated contacts and a 2-year warranty.

Specifications

20 specifications
General
Key FeaturesActive signal, 4.5 mm outer diameter, HDR10 and HLG, 4:4:4 chroma at 4K/30 Hz, Gold-plated contacts, Premium Certified
ModelEasyConnect HDMI4k-50
TypeActive HDMI Cable
Display
Color Depth8 bit per colour
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Performance
Storage Conditions-20 to 70 °C
Audio
Audio CodecsPCM up to 32 channels, Dolby (incl. Atmos), DTS (incl. DTS:X)
Connectivity
Cable StandardHDMI 2.0
ConductorTinned copper and multi-mode optical fibres
Connector TypeHDMI A (male-male)
Data Rate18 Gbps
Jacket MaterialPVC
ProtocolsHDCP 2.2 (backward compatible), CEC, EDID, ARC
ShieldingTriple shielded (foil + double braid)
Physical
Length15 m (50 ft)
Operating Temperature0 to 50 °C
Compliance
CertificationsRoHS, CE, FCC
Safety RatingVW-1
Warranty2 years

Downloads

Manufacturer documents for the Biamp EasyConnect 50-foot 4K HDMI 2.0 Active Cable – HDMI4k-50 — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

Does the EasyConnect HDMI4k-50 support 4K at 60 Hz?
Yes. The HDMI4k-50 supports 4K UHD at 3840 x 2160 and 60 Hz with full bandwidth. It is an HDMI 2.0 cable with 4:4:4 chroma sampling at 4K/30 Hz and an 18 Gbps maximum data rate.
Is the HDMI4k-50 an active cable, and how long is it?
Yes. It is an active HDMI cable, 15 m (50 ft) long, with tinned copper and multi-mode optical fibre conductors. Its outer diameter is 4.5 mm, its minimum static bend radius is 45 mm and its safety rating is VW-1.
Does the HDMI4k-50 support HDR and Dolby Atmos?
Yes. The cable supports HDR10 and HLG high dynamic range. It carries up to 32 channels of PCM and supports Dolby (including Atmos) and DTS (including DTS:X), provided the source and display handle those formats.
Can I buy the EasyConnect HDMI4k-50 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
