BiampMeeting Room SolutionsSKU EasyConnect USB3-10-AC

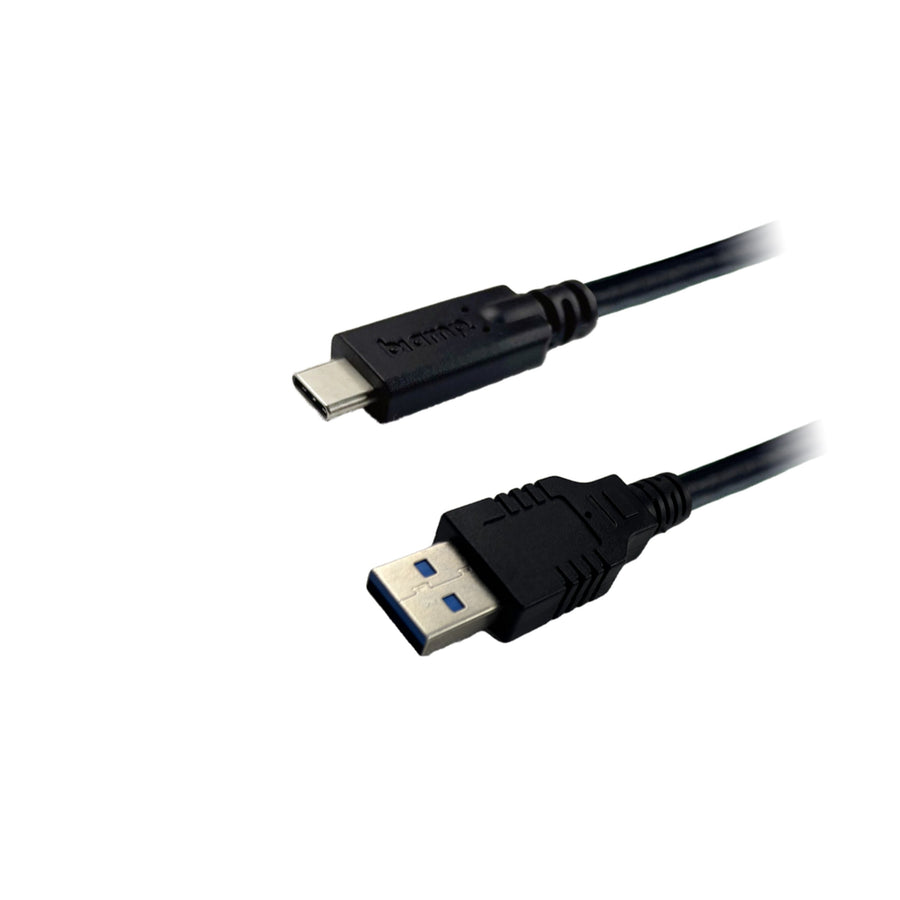

Biamp EasyConnect 3 m USB 3.2 Gen 1 Type A to Type C Cable – USB3-10-AC
The Biamp EasyConnect USB3-10-AC is a 3 m (10-foot) USB 3.2 Gen 1 cable with Type A to Type C connectors and data transfer speeds of up to 5 Gbps. It is a passive cable for connecting USB-C devices in video conferencing and AV setups. Procure.ae supplies it across the UAE.
The USB3-10-AC is a passive USB 3.2 Gen 1 cable with a USB Type A connector at one end and a USB Type C connector at the other. It carries data at up to 5 Gbps, more than ten times the 480 Mbps rate of USB 2.0. The 28 AWG tinned copper conductors are enclosed in a PVC jacket with double shielding of foil and braid. The contacts are gold plated, and the cable carries a UL-CMX safety rating along with RoHS and REACH compliance.
Choose this model to connect a USB Type A port to a USB-C device over 3 m. For a Type B device, the EasyConnect USB3-10-BC uses Type B to Type C connectors at the same length. For Type C to Type C runs, the EasyConnect USB3-15-CC is 5 m. This part is listed under model code 910-00203 and carries a 3-year warranty.
Type
USB 3.2 Gen 1 Cable
- USB 3.2 Gen 1 speed
- Type A to Type C
- 3 m (10-foot) length
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
USB 3.2 Gen 1 speed
Transfers data at up to 5 Gbps.
02
Type A to Type C
Type A connector at one end and USB Type C connector at the other.
03
3 m (10-foot) length
Passive cable for 3 m (10 ft) connections.
04
Double-shielded construction
Foil and braid shielding with a PVC jacket.
05
Tinned copper conductors
28 AWG tinned copper with gold-plated contacts.
06
Compliance and warranty
Lists RoHS and REACH compliance, a UL-CMX safety rating and a 3-year warranty.
Specifications
13 specificationsGeneral
Key FeaturesUSB 3.2 Gen 1 at 5 Gbps, Type A to Type C, Passive signal, Double shielded foil and braid, Gold-plated contacts, PVC jacket, Tinned copper conductors, RoHS/REACH compliant
ModelEasyConnect USB3-10-AC
TypeUSB 3.2 Gen 1 Cable
Connectivity
Cable StandardUSB 3.2 Gen 1
ConductorTinned copper, 28 AWG
Connector TypeUSB Type A to USB Type C
Data Rate5 Gbps
Jacket MaterialPVC
ShieldingDouble shielded (foil and braid)
Physical
Length3 m (10 ft)
Compliance
CertificationsRoHS, REACH
Safety RatingUL-CMX
Warranty3 years
Downloads
Manufacturer documents for the Biamp EasyConnect 3 m USB 3.2 Gen 1 Type A to Type C Cable – USB3-10-AC — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the EasyConnect USB3-10-AC have a USB-C connector?
Yes. One end is USB Type C and the other is USB Type A. The manufacturer lists it as a USB 3.2 Gen 1 cable with data transfer speeds of up to 5 Gbps.
Is the EasyConnect USB3-10-AC a passive cable?
Yes. The manufacturer lists it as a passive cable with no active signal amplification. Its length is 3 m (10 feet), so check your device's maximum cable length before ordering.
Which cable should I use for USB-C to USB-C?
The EasyConnect USB3-15-CC is a Type C to Type C cable at 5 m (15 feet). The USB3-10-AC has a Type A connector on one end, so it does not connect two USB-C ports.
Can I buy the EasyConnect USB3-10-AC in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
