BiampMeeting Room SolutionsSKU EasyConnect USB3-10-AB

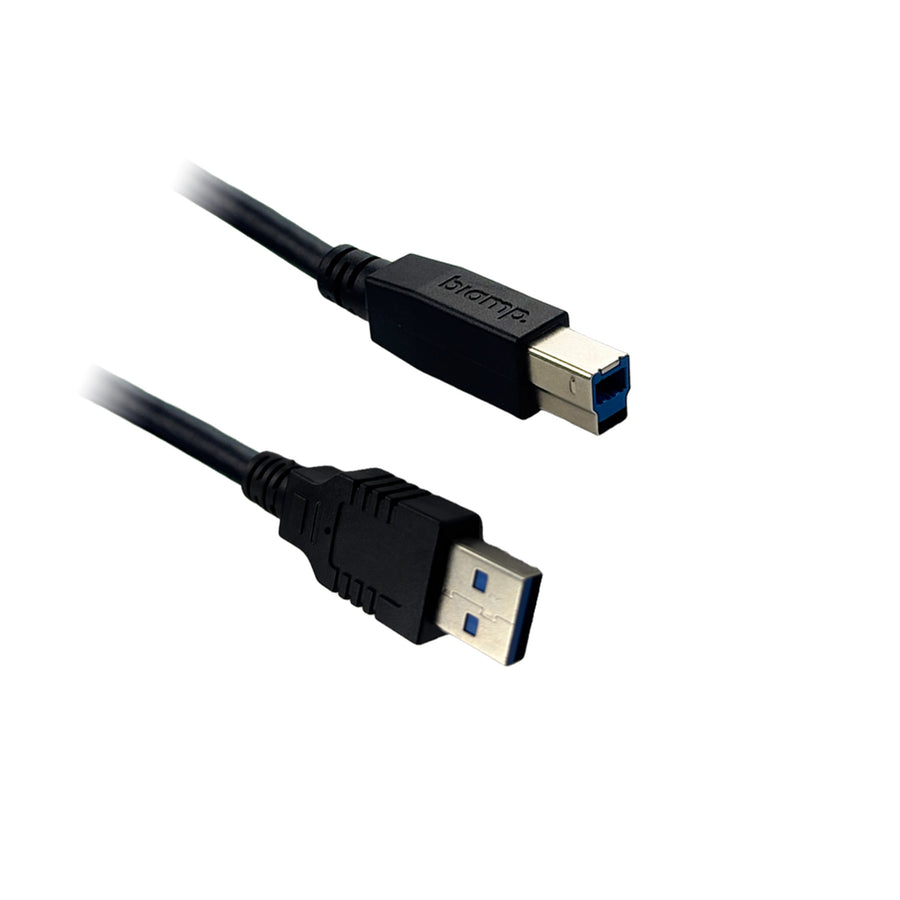

Biamp EasyConnect 3 m USB 3.2 Gen 1 Type A to Type B Cable – USB3-10-AB
The Biamp EasyConnect USB3-10-AB is a 3 m (10-foot) USB 3.2 Gen 1 cable with Type A to Type B connectors and data transfer speeds of up to 5 Gbps. It is a passive cable for USB device connections in video conferencing and AV setups. Procure.ae supplies it across the UAE.
The USB3-10-AB is a passive USB 3.2 Gen 1 cable with Type A to Type B connectors. It carries data at up to 5 Gbps, which is more than ten times the 480 Mbps rate of USB 2.0. The 28 AWG tinned copper conductors sit inside a PVC jacket with double shielding of foil and braid. The contacts are gold plated, and the cable carries a UL-CMX safety rating along with RoHS and REACH compliance.
Choose this model for Type B devices that need 5 Gbps transfers over 3 m. The USB2-10-AB uses the same connectors at USB 2.0 speed. For a USB-C device, the EasyConnect USB3-10-AC uses Type A to Type C connectors at the same length, and the USB3-10-BC uses Type B to Type C. This part is listed under model code 910-00200 and carries a 3-year warranty.
Type
USB 3.2 Gen 1 Cable
- USB 3.2 Gen 1 speed
- Type A to Type B
- 3 m (10-foot) length
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
USB 3.2 Gen 1 speed
Transfers data at up to 5 Gbps.
02
Type A to Type B
Type A connector at one end and Type B connector at the other.
03
3 m (10-foot) length
Passive cable for 3 m (10 ft) connections.
04
Double-shielded construction
Foil and braid shielding with a PVC jacket.
05
Tinned copper conductors
28 AWG tinned copper with gold-plated contacts.
06
Compliance and warranty
Lists RoHS and REACH compliance, a UL-CMX safety rating and a 3-year warranty.
Specifications
13 specificationsGeneral
Key FeaturesUSB 3.2 Gen 1 at 5 Gbps, Type A to Type B, Passive signal, Double shielded foil and braid, Gold-plated contacts, PVC jacket, Tinned copper conductors, RoHS/REACH compliant
ModelEasyConnect USB3-10-AB
TypeUSB 3.2 Gen 1 Cable
Connectivity
Cable StandardUSB 3.2 Gen 1
ConductorTinned copper, 28 AWG
Connector TypeUSB Type A to USB Type B
Data Rate5 Gbps
Jacket MaterialPVC
ShieldingDouble shielded (foil and braid)
Physical
Length3 m (10 ft)
Compliance
CertificationsRoHS, REACH
Safety RatingUL-CMX
Warranty3 years
Downloads
Manufacturer documents for the Biamp EasyConnect 3 m USB 3.2 Gen 1 Type A to Type B Cable – USB3-10-AB — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the EasyConnect USB3-10-AB a USB 3.2 Gen 1 cable?
Yes. The manufacturer lists it as a USB 3.2 Gen 1 cable with Type A to Type B connectors and a data transfer speed of up to 5 Gbps. It is not a USB-C cable.
How long is the EasyConnect USB3-10-AB?
It is 3 m (10 feet) long. The manufacturer lists it as a passive cable with no active signal amplification. Check your device's maximum cable length and port types before ordering, especially for longer installations.
Does the USB3-10-AB use USB-C connectors?
No. It has a USB Type A connector on one end and a USB Type B connector on the other. For USB-C devices, the EasyConnect USB3-10-AC or USB3-10-BC matches the connector at one end.
Can I buy the EasyConnect USB3-10-AB in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
