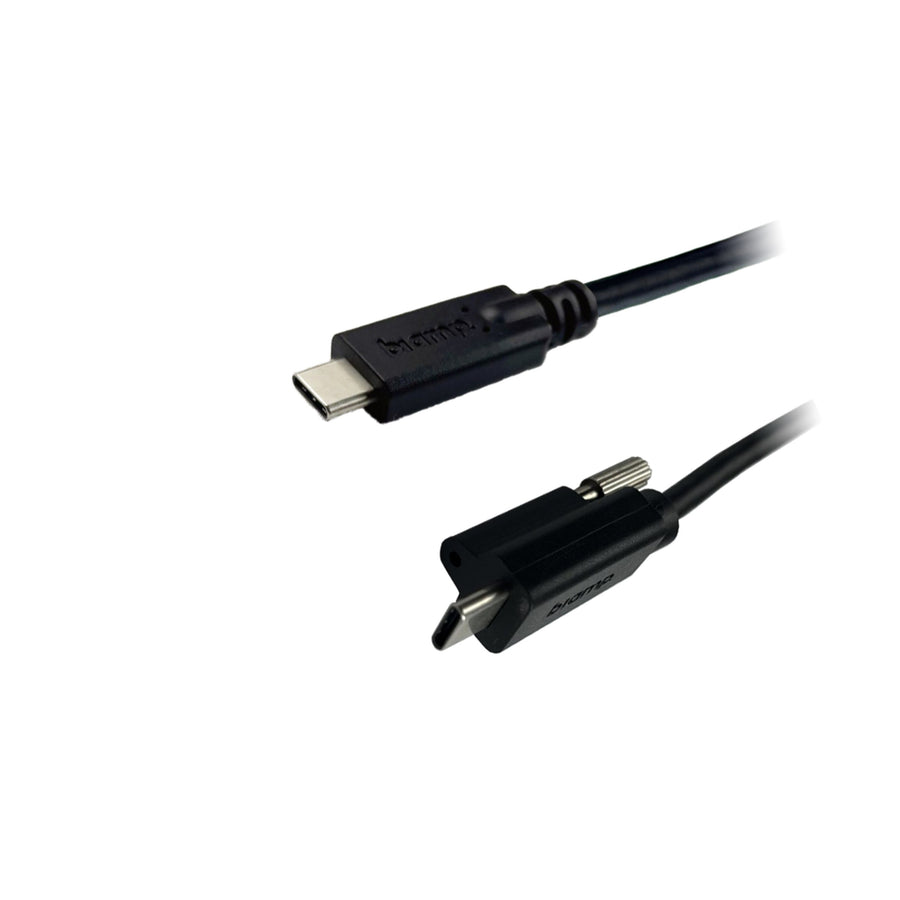

Biamp EasyConnect 3-Foot USB 3.2 Gen 2 Type-C to Type-C Cable – USB3-3-CC

The Biamp EasyConnect USB3-3-CC is a 1 m (3-foot) passive USB 3.2 Gen 2 cable with USB Type-C connectors at both ends. It transfers data at up to 10 Gbps, carries 4K at 60 Hz through DisplayPort alternate mode and handles up to 100 W power delivery. Procure.ae supplies it across the UAE as an authorised Biamp reseller.

The USB3-3-CC has tinned copper conductors (32 AWG) inside a PVC jacket with a 4.5 mm outer diameter. Foil and braid double shielding protects the signal, and the contacts are gold-plated. The cable supports 10 Gbps USB 3.2 Gen 2 transfer and 3840 x 2160 (4K UHD) resolution at 60 Hz, with 4:4:4 chroma sampling and 8-bit color. Power delivery is rated at 100 W, depending on the USB-C port. The operating range is 0 to 50 °C, and the storage range is -20 to 70 °C. Its alternate manufacturer code is 910-00210.

Use it where a laptop or other USB Type-C host needs a high-speed USB-C device connection, such as a conferencing camera, codec or dock in a meeting room. Video output needs a host port that supports DisplayPort alternate mode, which this cable carries as DisplayPort 1.4 with HDMI and audio. Compared with the 2 m USB3-6-CC, it is listed at 10 Gbps rather than 5 Gbps. Supported systems are Windows 8 and later, macOS 10.9 and later and Linux 3.x and later, with USB 3.0 support required.
