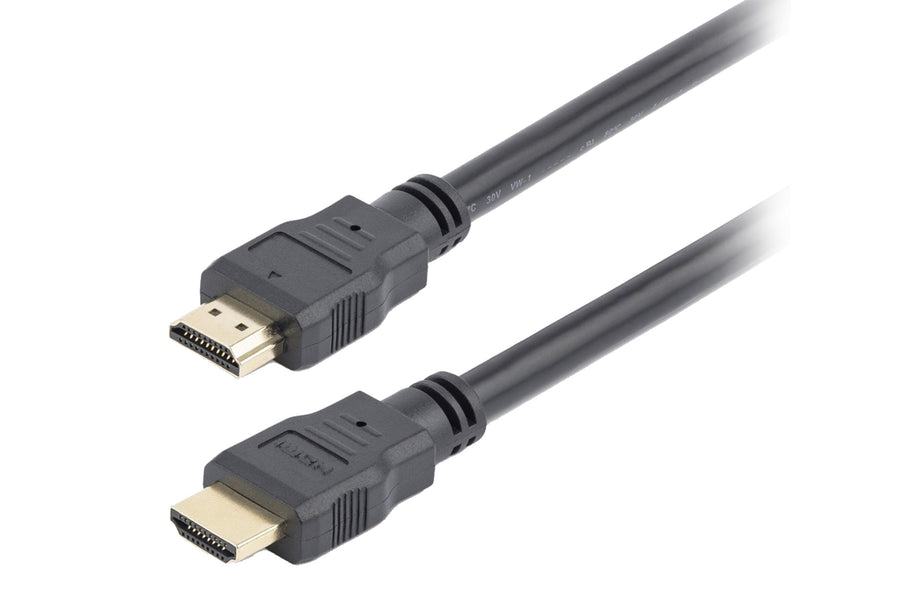

Biamp EasyConnect HDMI4k-10 10-foot 4K HDMI 2.0 cableBiamp
Meeting Room SolutionsSKU EasyConnect HDMI4k-10

Biamp EasyConnect 10-foot 4K HDMI 2.0 Cable – HDMI4k-10

The Biamp EasyConnect HDMI4k-10 is a 3 m (10 ft) passive HDMI 2.0 cable for 4K UHD video at 60 Hz, with HDR10 and HLG support and an 18 Gbps maximum data rate. It is aimed at meeting rooms and training spaces where the source sits a few metres from the display. Procure.ae supplies the HDMI4k-10 across the UAE.

The HDMI4k-10 provides 4K UHD at 3840 x 2160 and 60 Hz, with 4:4:4 chroma sampling at 4K/30 Hz and 8 bit colour per channel. HDR10 and HLG high dynamic range are supported at an 18 Gbps maximum data rate. Audio can be up to 32 channels of PCM, with Dolby (including Atmos) and DTS (including DTS:X) support. The cable also supports HDCP 2.2, CEC for shared device control and EDID for display identification. Manufacturer code: 910-00217.

Use the HDMI4k-10 for connections between a laptop, codec or media player and a display across a meeting room or classroom. Its 7.3 mm outer diameter and 28 AWG conductors are thicker than the 3-foot and 6-foot models, which use 6.1 mm cables with 30 AWG conductors. The cable lists an operating range of 0 to 50 °C and a storage range of -20 to 70 °C. Procure.ae, an authorised Biamp reseller, supplies it across the UAE, with installation available.

Resolution
3840 x 2160 (4K UHD)
Type
Passive HDMI Cable
  • 4K UHD at 60 Hz
  • HDR10 and HLG
  • Dolby and DTS audio
Price
On request · best price
1
Download spec sheet (PDF) Manufacturer datasheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
4K UHD at 60 Hz
3840 x 2160 resolution at 60 Hz with full bandwidth.
02
HDR10 and HLG
High dynamic range support for compatible sources and displays.
03
Dolby and DTS audio
Up to 32-channel PCM with Dolby Atmos and DTS:X support.
04
Triple shielding
Foil and double braid shielding on a 7.3 mm outer diameter cable.
05
CEC and EDID
Shared device control and display identification over one cable.
06
Premium Certified
Gold-plated contacts, UL-CMX rating and a 3-year warranty.

Specifications

20 specifications
General
Key FeaturesHDR10 and HLG, 4:4:4 chroma at 4K/30 Hz, Gold-plated contacts, 7.3 mm outer diameter, Minimum bend radius 73 mm, Premium Certified
ModelEasyConnect HDMI4k-10
TypePassive HDMI Cable
Display
Color Depth8 bit per colour
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Performance
Storage Conditions-20 to 70 °C
Audio
Audio CodecsPCM up to 32 channels, Dolby (incl. Atmos), DTS (incl. DTS:X)
Connectivity
Cable StandardHDMI 2.0
ConductorTinned copper, 28 AWG
Connector TypeHDMI A (male-male)
Data Rate18 Gbps
Jacket MaterialPVC
ProtocolsHDCP 2.2 (backward compatible), CEC, EDID, ARC
ShieldingTriple shielded (foil + double braid)
Physical
Length3 m (10 ft)
Operating Temperature0 to 50 °C
Compliance
CertificationsRoHS, REACH
Safety RatingUL-CMX
Warranty3 years

Downloads

Manufacturer documents for the Biamp EasyConnect 10-foot 4K HDMI 2.0 Cable – HDMI4k-10 — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

Does the EasyConnect HDMI4k-10 support 4K at 60 Hz?
Yes. The HDMI4k-10 supports 4K UHD at 3840 x 2160 and 60 Hz with full bandwidth. It is an HDMI 2.0 cable with 4:4:4 chroma sampling at 4K/30 Hz and an 18 Gbps maximum data rate, which suits 4K sources and displays at that format.
Does the HDMI4k-10 support HDR and Dolby Atmos?
Yes. The cable supports HDR10 and HLG high dynamic range. It carries up to 32 channels of PCM and supports Dolby (including Atmos) and DTS (including DTS:X), provided the source and display handle those formats as well.
Is the HDMI4k-10 passive, and what temperature range does it support?
Yes, it is a passive HDMI cable, 3 m (10 ft) long, with 28 AWG tinned copper conductors. The manufacturer lists an operating range of 0 to 50 °C and a storage range of -20 to 70 °C. The minimum static bend radius is 73 mm.
Can I buy the EasyConnect HDMI4k-10 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
