Biamp EasyConnect USB3-3-AC USB 3.2 Gen 2 Type A to Type C cableBiamp
Meeting Room SolutionsSKU EasyConnect USB3-3-AC

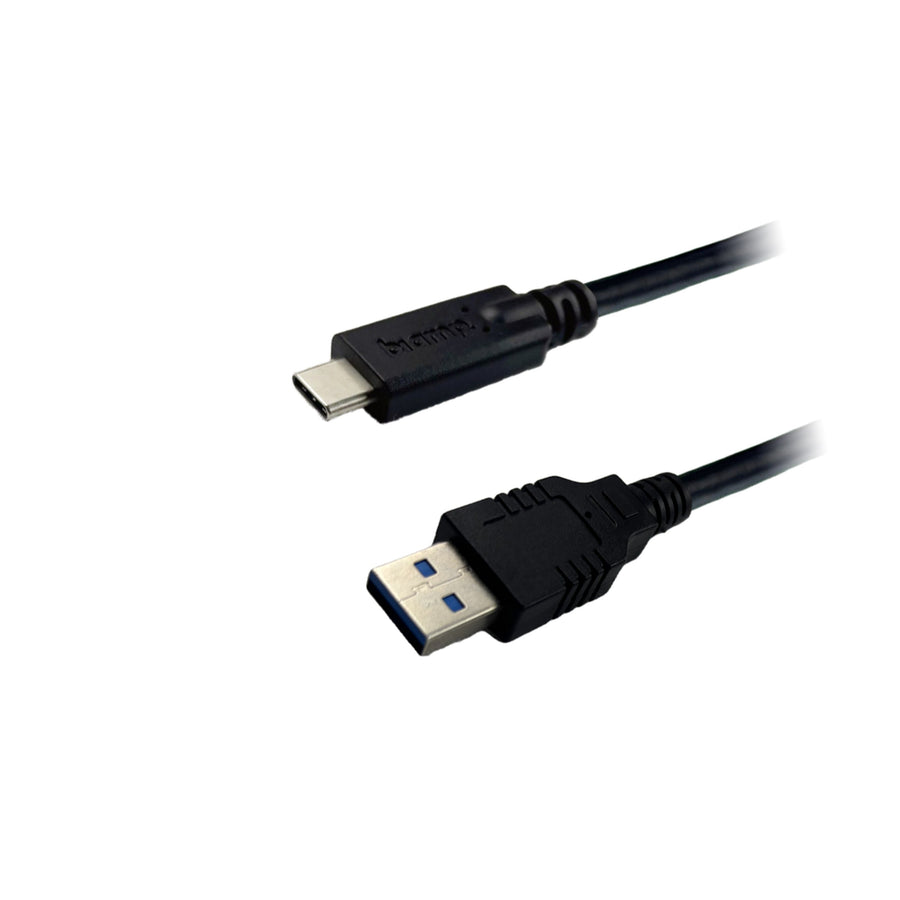

Biamp EasyConnect 1 m USB 3.2 Gen 2 Type A to Type C Cable – USB3-3-AC

The Biamp EasyConnect USB3-3-AC is a 1 m (3-foot) USB 3.2 Gen 2 cable with Type A to Type C connectors and data transfer speeds of up to 10 Gbps. It is a passive cable for short USB-C device connections in video conferencing and AV setups. Procure.ae supplies it across the UAE.

The USB3-3-AC is a passive USB 3.2 Gen 2 cable with a USB Type A connector at one end and a USB Type C connector at the other. It carries data at up to 10 Gbps, twice the 5 Gbps rate of USB 3.2 Gen 1. The 28 AWG tinned copper conductors sit inside a PVC jacket with double shielding of foil and braid. The contacts are gold plated, and the cable carries a UL-CMX safety rating along with RoHS and REACH compliance.

Choose this model for a short 1 m link between a USB Type A port and a USB-C device where 10 Gbps transfers are needed. For longer runs at 5 Gbps Gen 1 speed, the EasyConnect USB3-10-AC is 3 m (10 feet) with the same connector types. This part is listed under model code 910-01201 and carries a 3-year warranty.

Type
USB 3.2 Gen 2 Cable
  • USB 3.2 Gen 2 speed
  • Type A to Type C
  • 1 m (3-foot) length
Price
On request · best price
1
Download spec sheet (PDF) Manufacturer datasheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
USB 3.2 Gen 2 speed
Transfers data at up to 10 Gbps.
02
Type A to Type C
Type A connector at one end and USB Type C at the other.
03
1 m (3-foot) length
Passive cable for short connections.
04
Double-shielded construction
Foil and braid shielding with a PVC jacket.
05
Tinned copper conductors
28 AWG tinned copper with gold-plated contacts.
06
Compliance and warranty
Lists RoHS and REACH compliance, a UL-CMX safety rating and a 3-year warranty.

Specifications

13 specifications
General
Key FeaturesUSB 3.2 Gen 2 at 10 Gbps, Type A to Type C, Passive signal, Double shielded foil and braid, Gold-plated contacts, PVC jacket, Tinned copper conductors, RoHS/REACH compliant
ModelEasyConnect USB3-3-AC
TypeUSB 3.2 Gen 2 Cable
Connectivity
Cable StandardUSB 3.2 Gen 2
ConductorTinned copper, 28 AWG
Connector TypeUSB Type A to USB Type C
Data Rate10 Gbps
Jacket MaterialPVC
ShieldingDouble shielded (foil and braid)
Physical
Length1 m (3 ft)
Compliance
CertificationsRoHS, REACH
Safety RatingUL-CMX
Warranty3 years

Downloads

Manufacturer documents for the Biamp EasyConnect 1 m USB 3.2 Gen 2 Type A to Type C Cable – USB3-3-AC — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

Is the EasyConnect USB3-3-AC a USB 3.2 Gen 2 cable?
Yes. The manufacturer lists it as a USB 3.2 Gen 2 cable with Type A to Type C connectors and data transfer speeds of up to 10 Gbps. It is 1 m (3 feet) long.
Does the USB3-3-AC have a USB-C connector?
Yes, on one end. It has a USB Type C connector on one end and a USB Type A connector on the other, so it is not a Type C to Type C cable.
How does the USB3-3-AC differ from the USB3-10-AC?
The USB3-3-AC is a 1 m USB 3.2 Gen 2 cable rated for up to 10 Gbps. The USB3-10-AC is a 3 m USB 3.2 Gen 1 cable with the same Type A to Type C connectors, rated for up to 5 Gbps.
