BiampMeeting Room SolutionsSKU Devio SCR-25TX

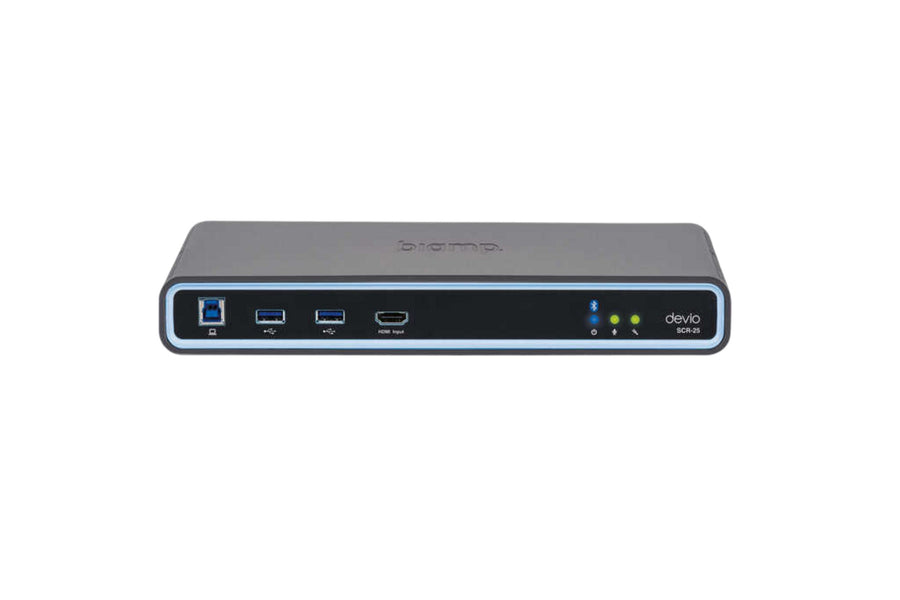

Biamp Devio Conferencing Hub with Tabletop Microphone – SCR-25TX Black
The Biamp Devio SCR-25TX is a conferencing hub bundled with a Parlé TTM-XEX tabletop microphone that has 360-degree coverage. It passes a PC's video to one in-room display over HDMI, with output up to 4K UHD at 30 Hz, and works with Microsoft Teams, Zoom and Google Meet. Procure.ae supplies the SCR-25TX across the UAE for meeting rooms.
The Devio SCR-25 hub works with PCs running Microsoft Teams, Zoom, Google Meet, BlueJeans and Skype for Business, on both Windows and Mac. Auto Setup validates device connections, adjusts room levels and sets speaker EQ. The hub supports up to 3840 x 2160 (4K UHD) at 30 Hz on output port 1 and supports Bluetooth wireless technology. It runs on a 24 V DC, 60 W supply and weighs 0.9 kg. Alternate part numbers are 930-00459-00037 and 930-00459-00043.
The SCR-25TX suits huddle rooms and meeting rooms where a tabletop microphone is used. Two monitors can take USB video through DisplayLink, which needs a driver on the laptop for Windows 7, 8, 8.1 and 10. Speakers connect through HDMI audio, the built-in 20 W amplifier or RCA line out, and the hub mounts under a table with the included bracket. Compared with the SCR-25T, which ships with a DTM-1 microphone, this bundle includes a Parlé TTM-XEX tabletop microphone.
Resolution
3840 x 2160 (4K UHD) at 30 Hz, outp...
Type
Conferencing Hub with Tabletop Micr...
Weight
0.9 kg
- Web conferencing compatibility
- Auto Setup
- Pass-through HDMI
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Web conferencing compatibility
Works with PCs running Microsoft Teams, Zoom, Google Meet, BlueJeans and Skype for Business.
02
Auto Setup
Validates device connections, adjusts room levels and sets speaker EQ.
03
Pass-through HDMI
Drives one in-room display, or two monitors with USB video through DisplayLink.
04
Tabletop microphone
Includes a Parlé TTM-XEX tabletop microphone with 360-degree coverage.
05
4K output
Supports up to 3840 x 2160 (4K UHD) at 30 Hz on output port 1 only.
06
Speaker options
Connects through HDMI audio, a built-in 20 W amplifier or RCA line out.
07
Remote management
Monitored over SNMP or the Devio System Administration Utility, which schedules firmware updates.
08
Under-table mounting
Includes a bracket for under-the-table installation.
Specifications
17 specificationsGeneral
CompatibilityWindows and Mac PCs; Microsoft Teams, Zoom, Google Meet, BlueJeans, Skype for Business
Key FeaturesAuto Setup, Bluetooth wireless, SNMP management, pass-through HDMI or DisplayLink dual monitors, built-in 20 W amplifier, under-table mount, TAA compliant, 5-year warranty
ModelDevio SCR-25TX
TypeConferencing Hub with Tabletop Microphone
What's in the BoxDevio SCR-25 hub, Parlé TTM-XEX tabletop microphone
Display
Resolution3840 x 2160 (4K UHD) at 30 Hz, output port 1 only
Audio
Impedance100 Ω (unbalanced)
MicrophoneParlé TTM-XEX tabletop, 360-degree coverage
Connectivity
ConnectivityBluetooth wireless
PortsHDMI, RCA line out, RJ-45 Ethernet
ProtocolsSNMP
Power
Power Source24 V DC, 60 W
Physical
MountingUnder-table bracket included
Operating Temperature0 to 40 °C
Weight0.9 kg
Compliance
CertificationsFCC Part 15B, UL and C-UL, CE, RoHS, TAA compliant
Warranty5 years
Downloads
Manufacturer documents for the Biamp Devio Conferencing Hub with Tabletop Microphone – SCR-25TX Black — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the Devio SCR-25TX work with Microsoft Teams and Zoom?
Yes. The SCR-25TX works with PCs running Microsoft Teams, Zoom, Google Meet, BlueJeans and Skype for Business, on Windows and Mac. It uses standard audio drivers, and single-display HDMI pass-through is driverless. Two-monitor USB video needs the DisplayLink driver installed on the laptop.
What output resolutions does the SCR-25TX support?
The hub supports up to 3840 x 2160 (4K UHD) at 30 Hz on output port 1. It also supports lower resolutions, including 1920 x 1080p at 50 or 60 Hz and 1280 x 720p at 50 or 60 Hz, for displays that do not run at 4K.
What room size is the Devio SCR-25TX suited to?
The manufacturer's specifications do not state a maximum room size. The SCR-25TX suits rooms with a single in-room display, and its Parlé TTM-XEX tabletop microphone has 360-degree coverage. Room layout and display size should be confirmed for each installation.
Can the SCR-25TX be mounted under a table?
Yes. The hub includes a bracket for under-the-table installation. It weighs 0.9 kg, runs on a 24 V DC, 60 W supply and operates from 0 to 40 °C. The network connection uses RJ-45 with Cat 5e or higher Ethernet cable.
