BiampMeeting Room SolutionsSKU Devio DTM-1

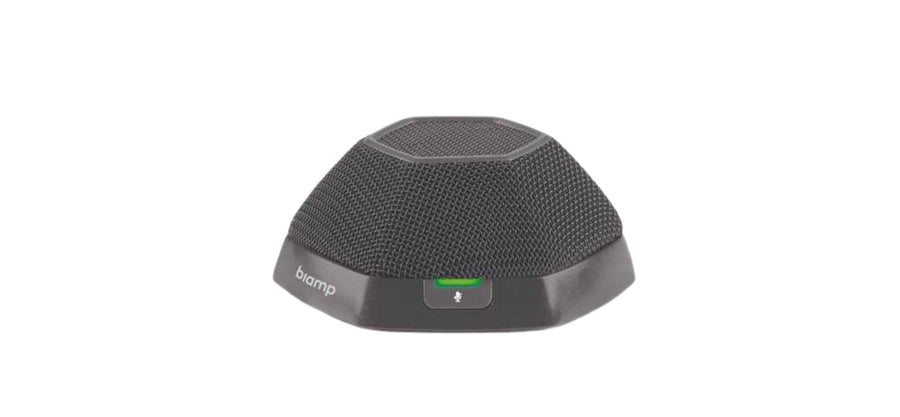

Biamp Beamtracking Tabletop Microphone – Devio DTM-1
The Biamp Devio DTM-1 is a beamtracking tabletop microphone for Devio conferencing systems. It uses three 120-degree zones for 360-degree pickup, three capacitive touch mute buttons and two directivity modes, with up to 15 m (49 feet) reach from the SCR-20 or SCR-25. Procure.ae supplies the Biamp Devio DTM-1 in the UAE.
The DTM-1 uses Beamtracking technology to track and mix conversations around the table. Three 120-degree zones provide 360 degrees of coverage, and three LED mute status indicators sit alongside three capacitive touch mute buttons. Two selectable directivity modes let you tune pickup for the room. The microphone weighs 0.27 kg and draws less than 1 W, phantom-powered from the SCR-20 or SCR-25.
The DTM-1 reaches up to 15 metres (49 feet) from the SCR-20 or SCR-25, and a second DTM-1 can daisy-chain up to 15 metres from the first, with a maximum of two microphones per chain. A mounting plate for secure installation is included, and installation takes a single cable. The DTM-1 is TAA compliant and carries a 2-year warranty. It belongs to the same Devio family as the DCM-1 pendant microphone.
Type
Tabletop Microphone
Weight
0.27 kg
- Beamtracking pickup
- 360-degree coverage
- Capacitive touch mute
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Beamtracking pickup
Tracks and mixes conversations around the table.
02
360-degree coverage
Three 120-degree zones cover the full table.
03
Capacitive touch mute
Three capacitive touch mute buttons with three LED mute indicators.
04
Two directivity modes
Selectable directivity modes tune pickup for the room.
05
Mounting plate included
A mounting plate for secure installation comes in the box.
06
Single-cable installation
Connects to the SCR-20 or SCR-25 with one cable, up to 15 m.
07
Daisy-chain RJ-45
Connects a second DTM-1 for up to two microphones per chain.
08
TAA compliant
Compliant with the US Trade Agreement Act, with a 2-year warranty.
Specifications
15 specificationsGeneral
CompatibilityDevio SCR-20 and SCR-25 systems
ControlsThree capacitive touch mute buttons, three LED mute indicators, two directivity modes
Key FeaturesBeamtracking, three 120-degree zones, three capacitive mute buttons, two directivity modes, mounting plate, daisy-chain RJ-45, TAA compliant
ModelDevio DTM-1
TypeTabletop Microphone
Audio
Coverage PatternThree 120-degree zones (360 degrees)
Connectivity
ConnectivityUp to 15 m from SCR-20/SCR-25; 15 m daisy-chain, two microphones per chain
Connector TypeRJ-45
Power
Power Consumption< 1 W
Power SourcePhantom power from SCR-20/SCR-25
Physical
MountingTabletop; mounting plate included
Operating Temperature0 to 40 °C
Weight0.27 kg
Compliance
CertificationsTAA compliant, FCC Part 15B, CE, UL and C-UL, RoHS
Warranty2 years
Downloads
Manufacturer documents for the Biamp Beamtracking Tabletop Microphone – Devio DTM-1 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What does the DTM-1 connect to?
The DTM-1 is phantom powered from an SCR-20 or SCR-25 unit over RJ-45. The maximum distance from the unit to the DTM-1 is 49 feet (15 metres). The 49-foot limit applies to the run between the SCR unit and the DTM-1, so plan cable routes within that distance.
How many DTM-1 microphones can be daisy-chained?
Two. Each DTM-1 has an additional RJ-45 port for daisy-chain connection to another DTM-1, with a maximum of two microphones per daisy chain, up to 49 feet (15 metres) between devices.
Does the DTM-1 include a mount?
Yes. A mounting plate for secure installation is included with the microphone. The DTM-1 is a tabletop microphone, and the plate is supplied as part of the standard package for installing it.
Which mute controls does the DTM-1 have?
It has three capacitive touch mute buttons and three LED mute status indicators. It also offers two selectable directivity modes to suit the room. The touch mute buttons and LED indicators together show the mute state during calls.
Is the DTM-1 TAA compliant?
Yes. It is compliant with the US Trade Agreement Act (TAA) and carries a 2-year warranty. It is also FCC Part 15B, CE, UL and C-UL, and RoHS certified. It is rated for use in 0 to 40 °C ambient temperatures.
